SPECIFICATIONS

Voltage: 24V

Special Features4: Automotive

Special Features3: Cable Clips Piercing Test

Special Features2: 4mm Banana seat

Special Features: Piercing Test Clip

Special Features: Cable Clips Piercing Test

Software Version: V1.0

Power: 48W

Origin: Mainland China

Model Name: VH-P

Material Type: Plastic

Item Width: 2cm

Item Weight: 12g

Item Type: Other

Item Length: 12cm

Item Height: 2cm

Hardware Version: V.10

External Testing Certification: CC

Electronic: No

Brand Name: Kawish

Plastic Cable Clips Piercing Test Clip with 4mm Banana seat  High Quality Insulation

If you want more of the products,please contact me.We have large quantity and best price for you!

Describe:

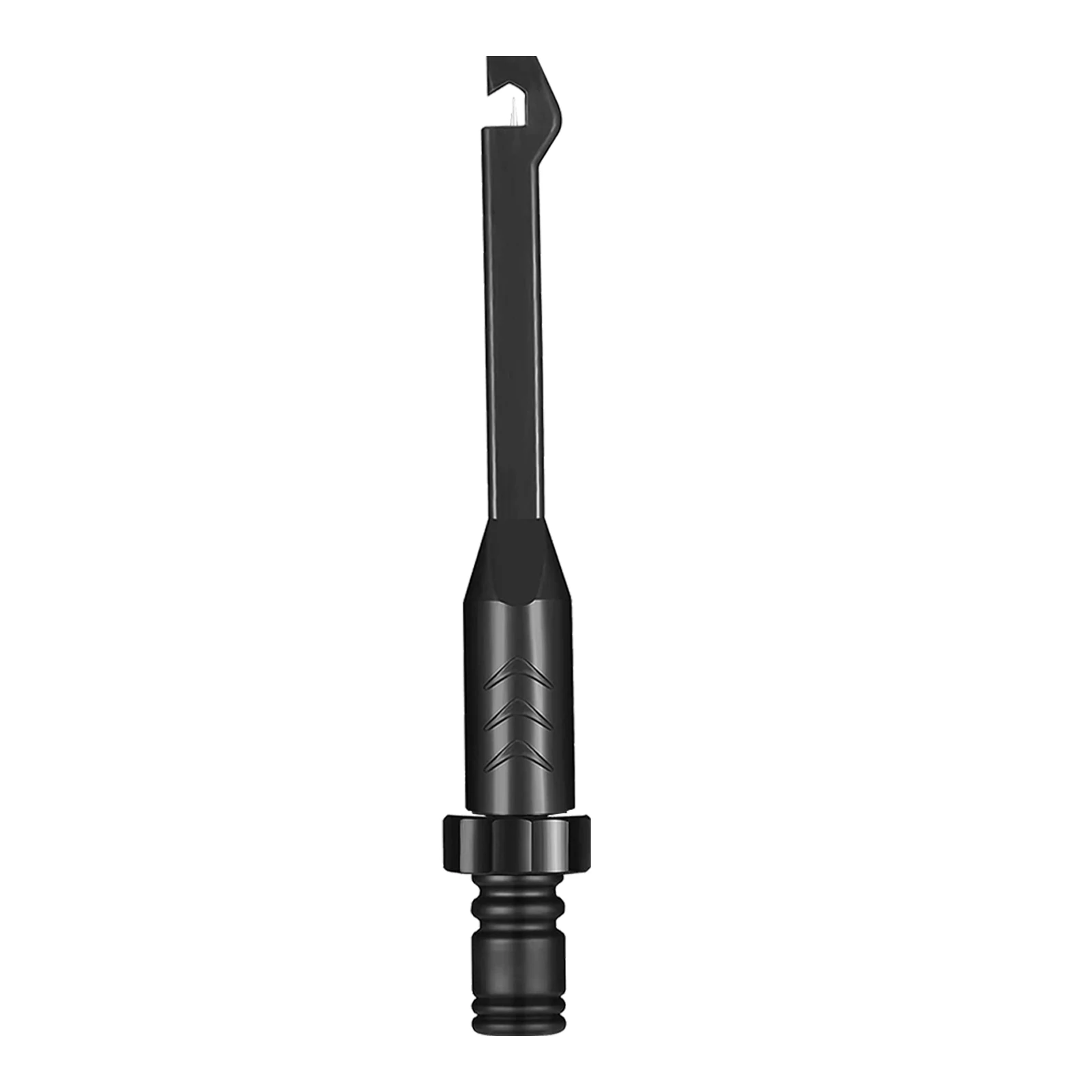

Safety Test Clip Insulation Piercing Probe for Automotive Circuit Inspection Diagnostic Tool
It can easily pierce the cable jacket for testing without cutting the cable jacket. Widely used in cable repair, power testing, industrial field testing and other cable non-destructive testing.
The instruments that can be adapted are: multimeter, oscilloscope, electricity meter, etc.
1. There is no need to strip the wire, and the cable will not be damaged;
2. Pierce and clamp the cable with a wire to free your hands;
3. Suitable for cables with diameter less than 4mm;
4. Can be used to connect weak current test lines below 36v;
5. The rear 4mm standard female banana socket can be connected to most testing and diagnostic equipment.

USE:
1. Rotate the end of the pierce probe test clip to place the test cable on top of the probe test clip
2. Rotate the end of the puncture probe test clip, the ultra-fine probe in the puncture probe test clip can pierce the cable sheath, so that the signal cable can be used for non-destructive testing.
3. The unique V-shaped groove design of the puncture probe test clip ensures that the cable is stable and does not slip.
4. After the test is completed, rotate the end of the puncture probe test clip to remove the wire, and the cable sheath is intact.
Specification:
Operating Voltage: 30VAC or 60VAC Max
Current: 1 amp max

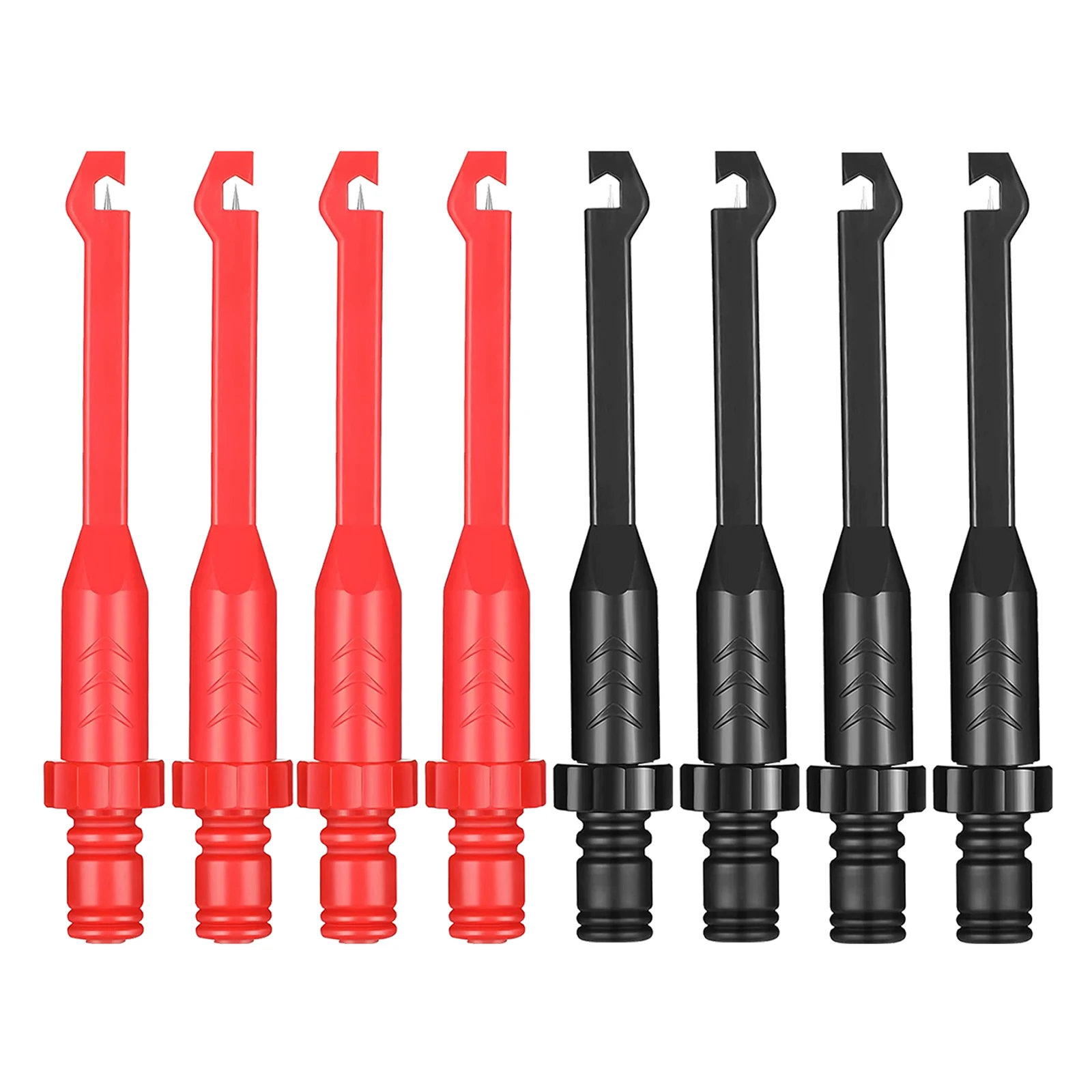

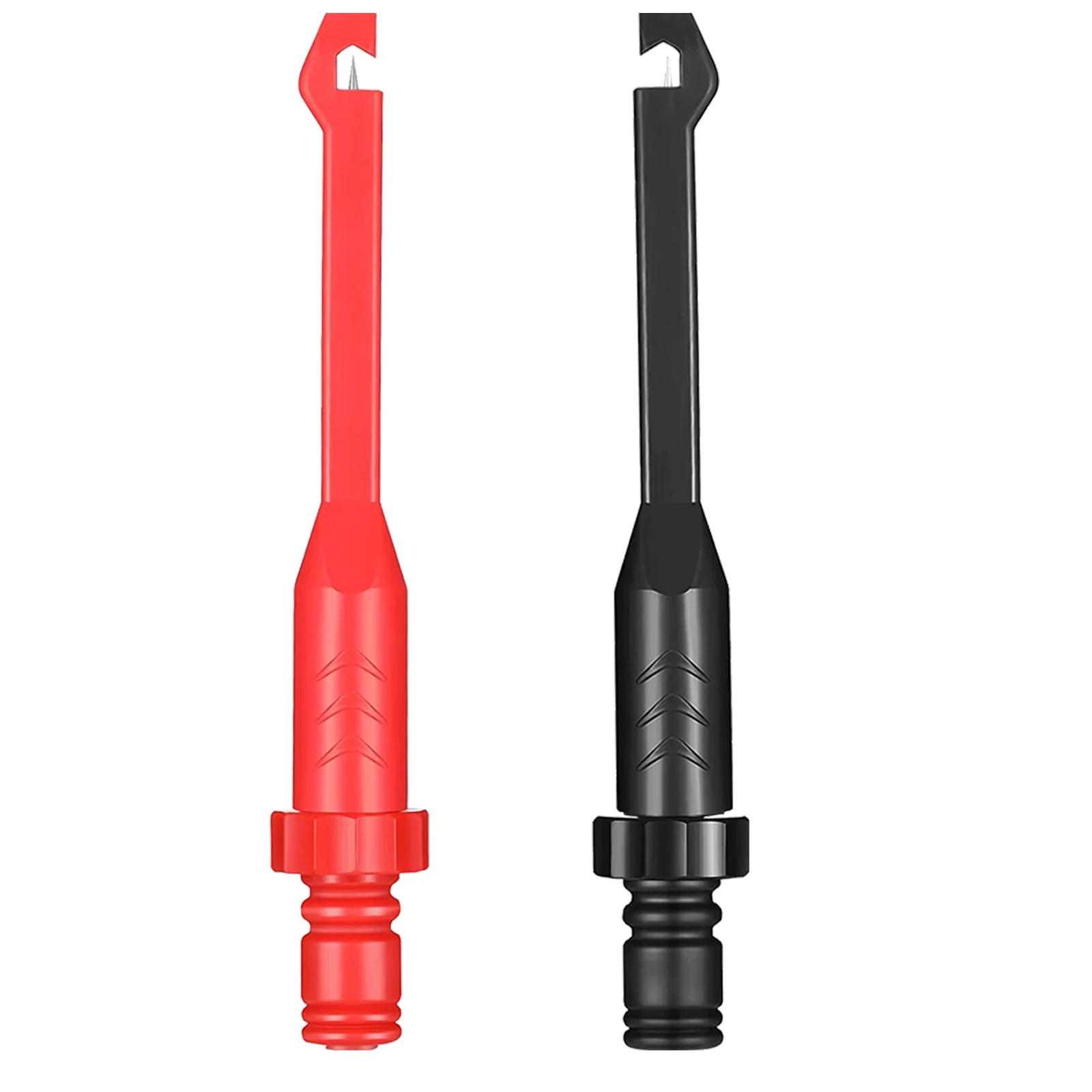

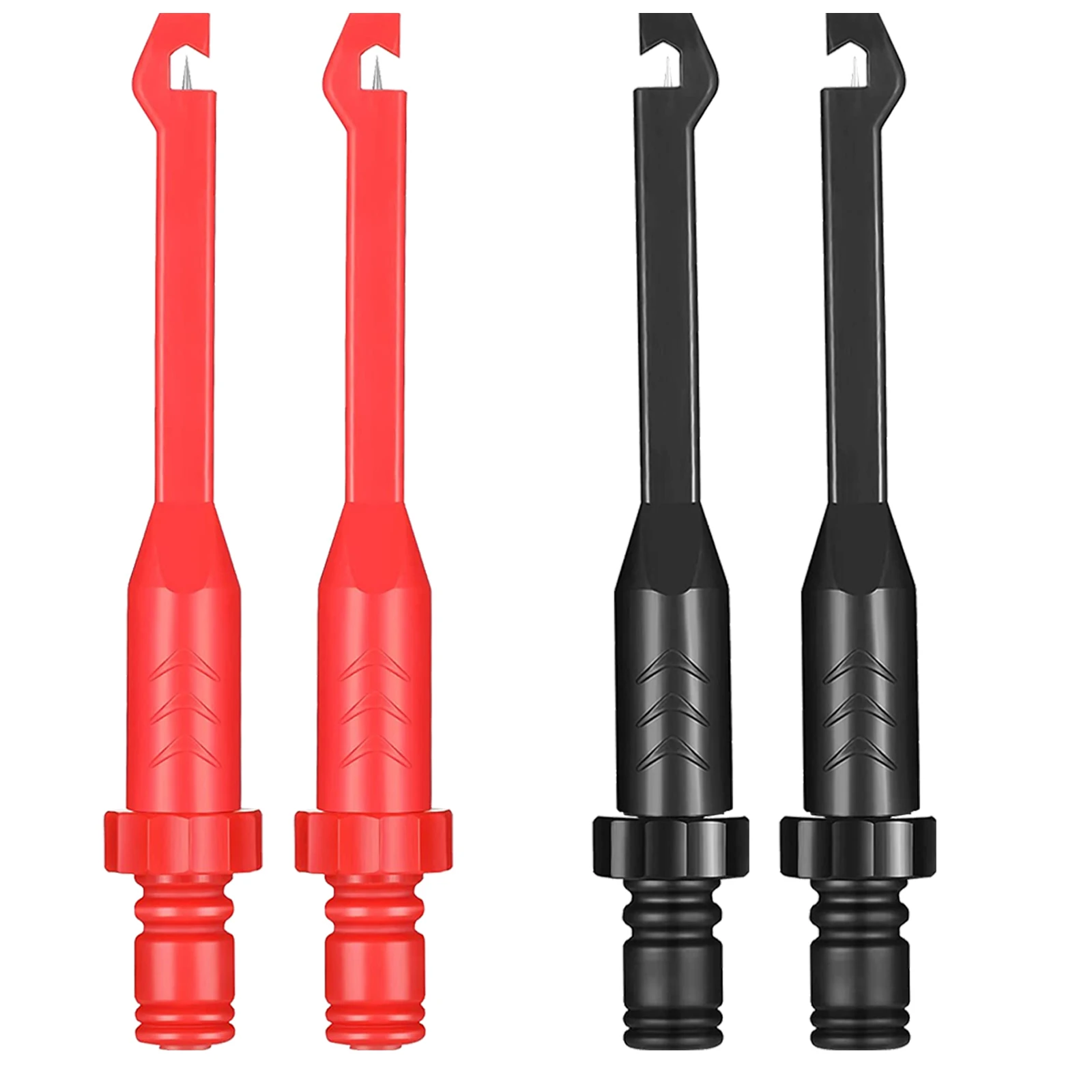

Color: red, black
Size: about 12cm/4.72" long, 4mm/0.16" hole diameter


Notes:
1. Transition: 1cm=10mm=0.39inch
2. Due to manual measurement, please allow 0-1cm error. Make sure you don't mind before bidding.
3. Due to the difference of different monitors, the picture may not reflect the actual color of the item. Thanks!

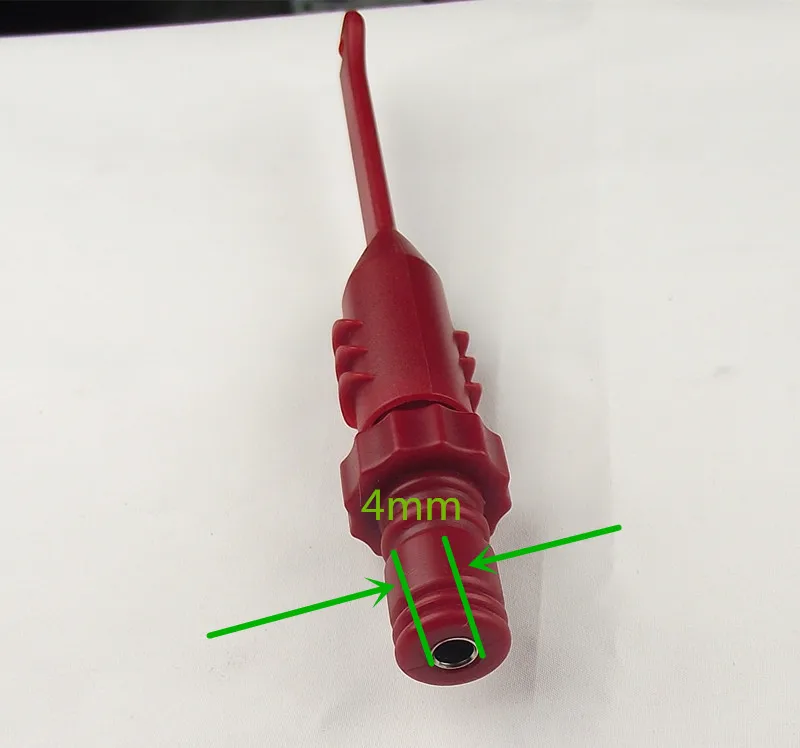

4mm Banana seat

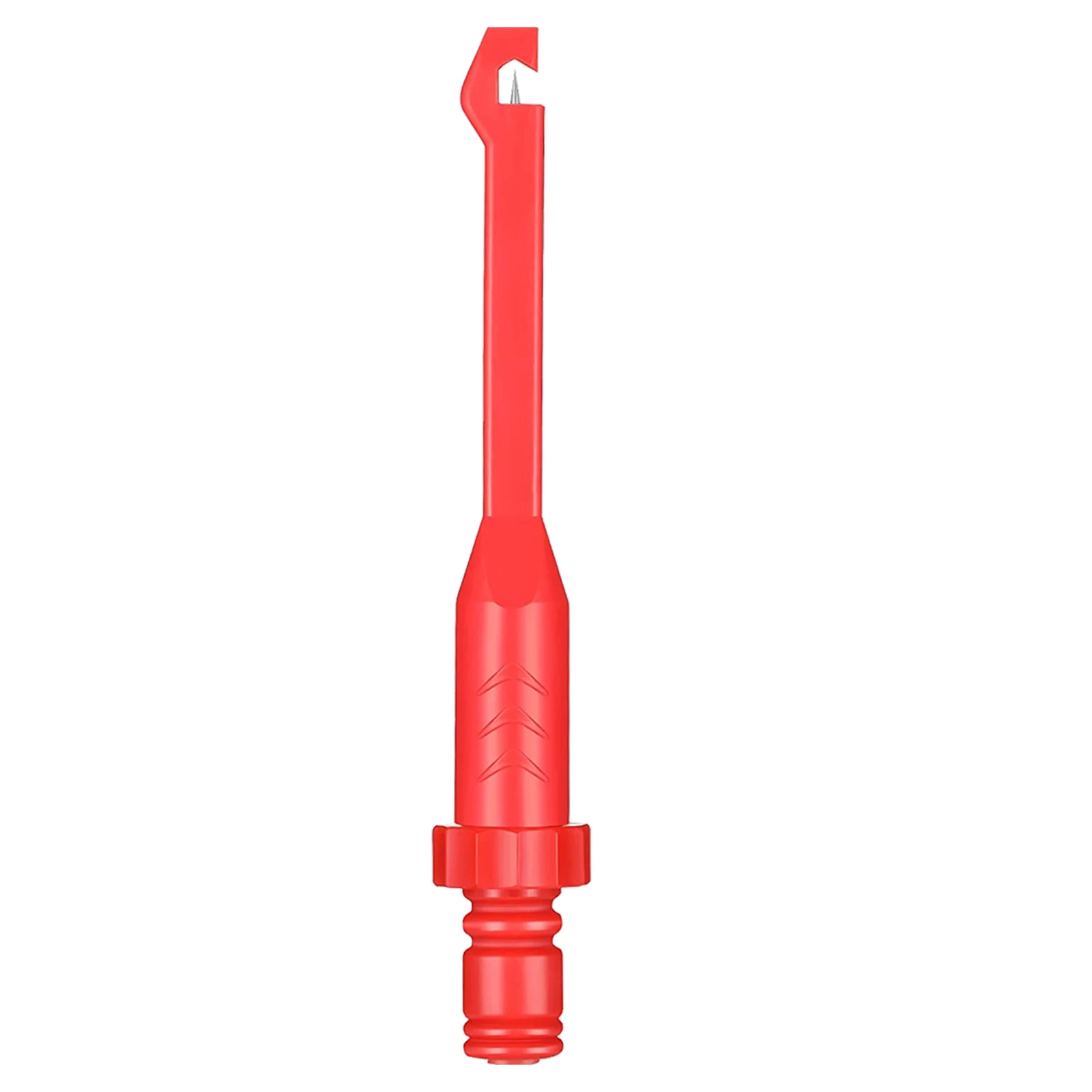

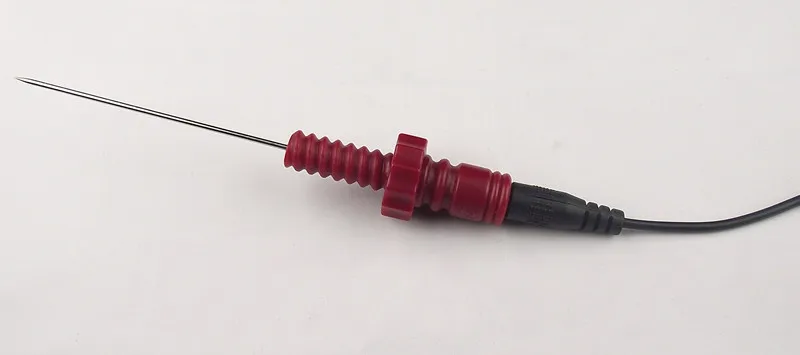

It is divided into two parts. internal and external, internal needle  and external plastic shell

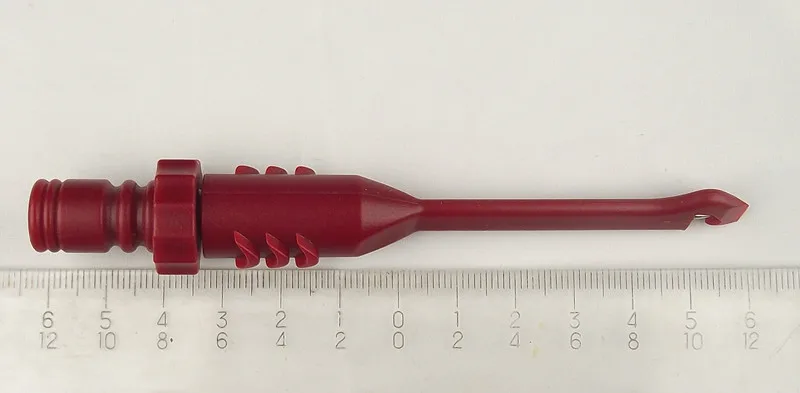

The lenth

And the weight

How to use it

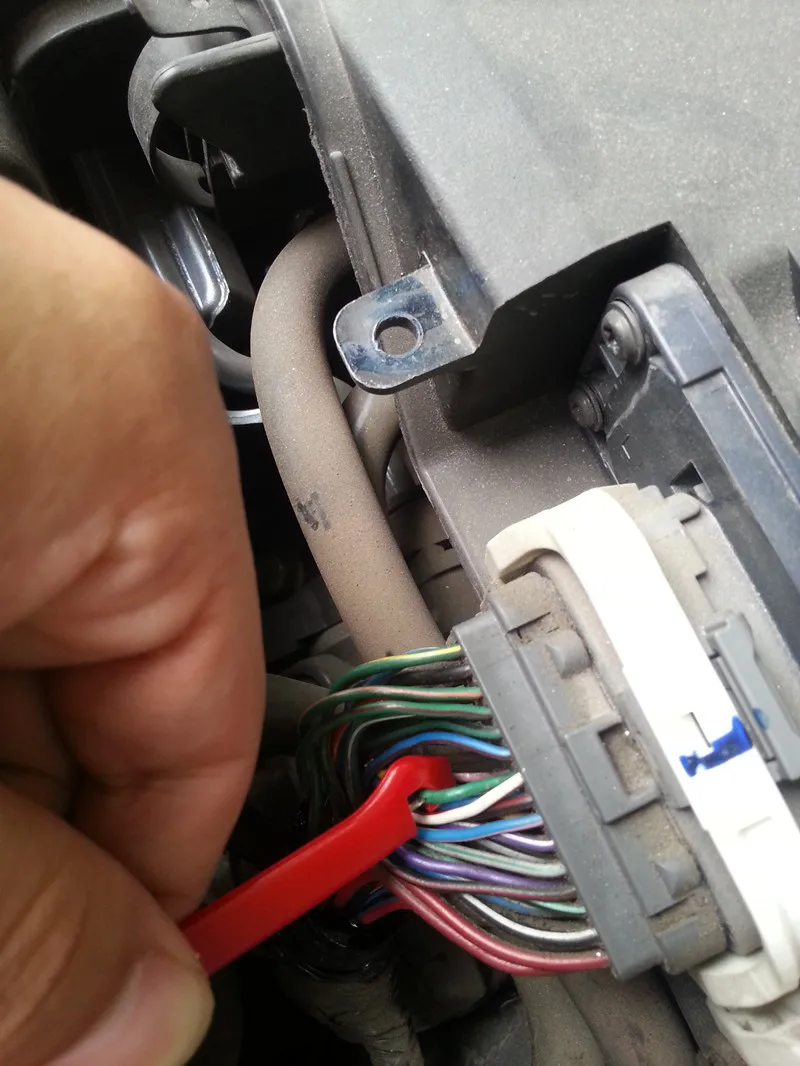

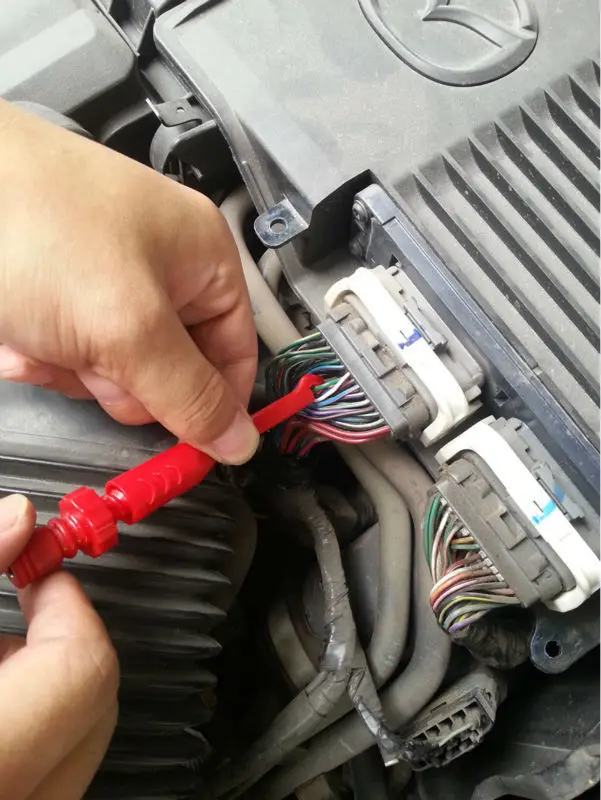

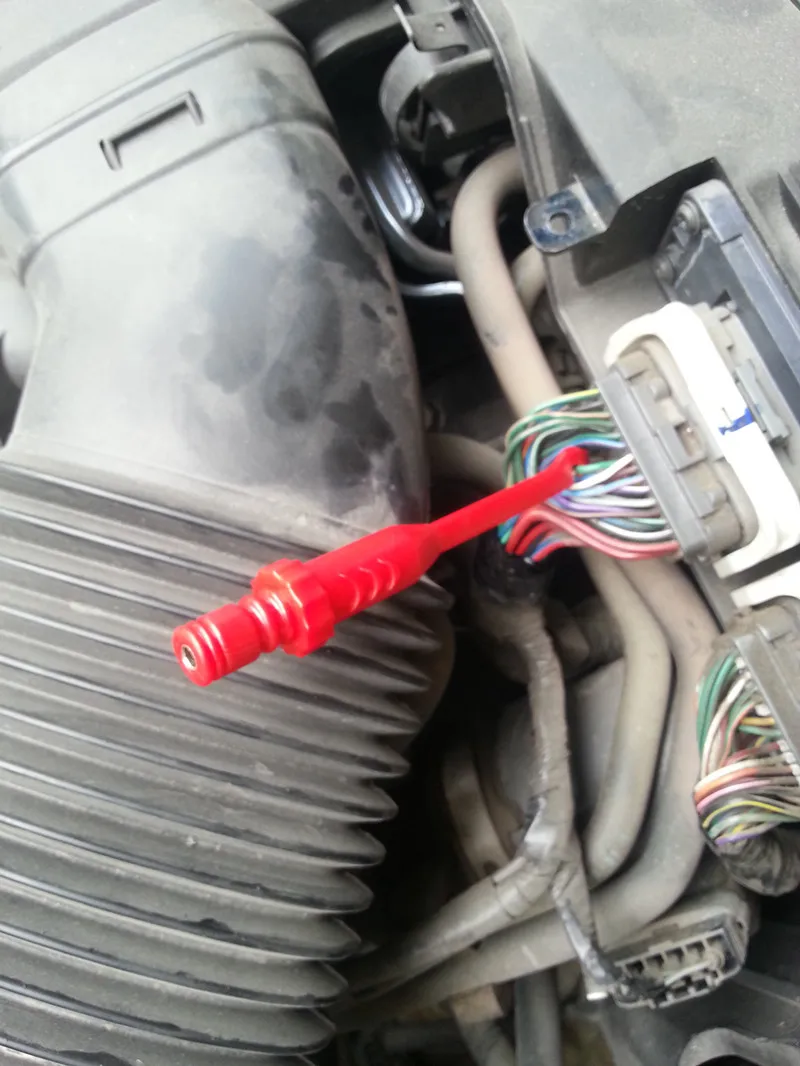

the example of how to get the signle of the car
