BSIDE Digital Multimeter S10 S11 S20 Smart DC AC Voltage Capacitor Ohm Diode NCV Hz EMF Tester Detector meter

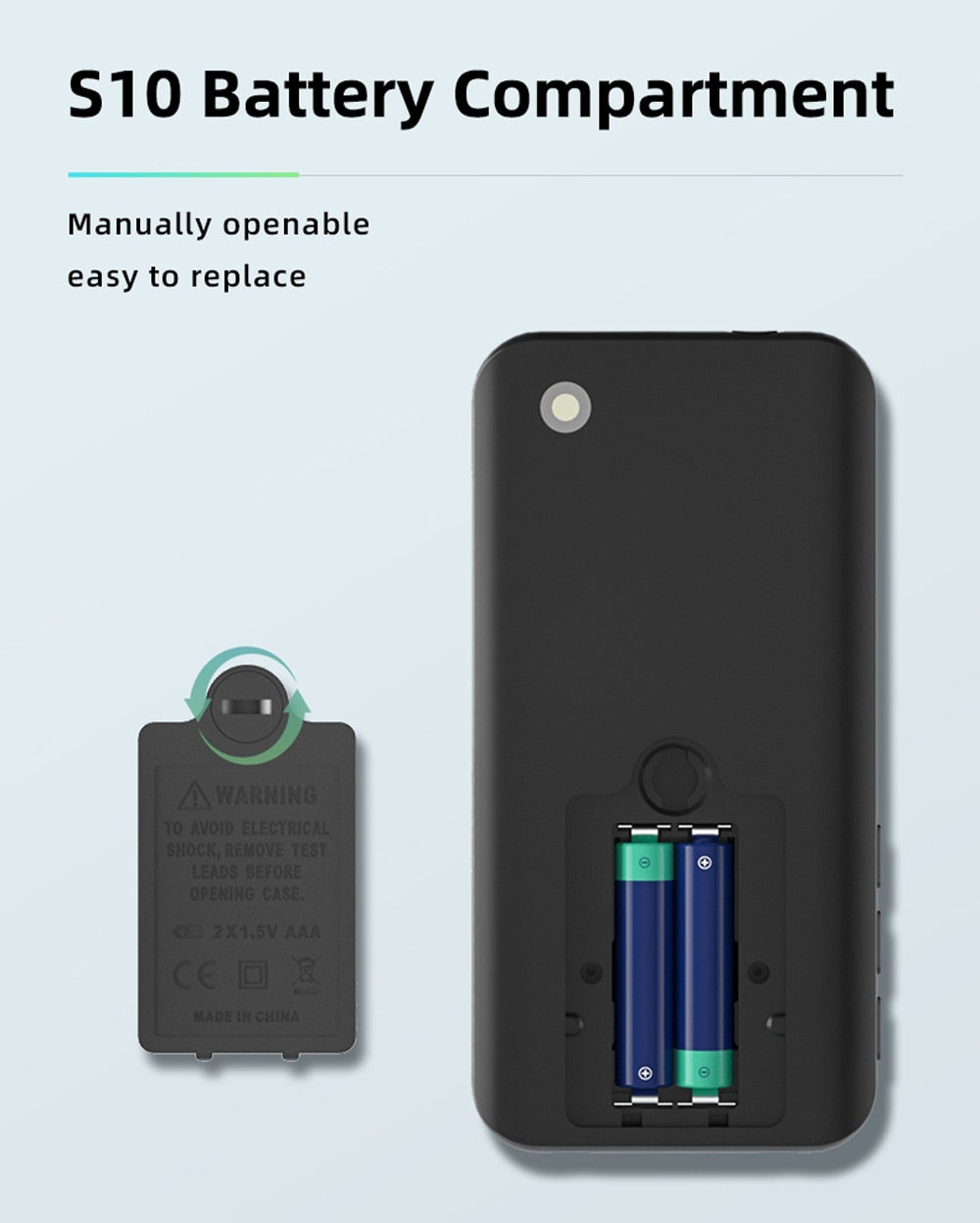

BSIDE Digital Multimeter S10 S11 S20 Smart DC AC Voltage Capacitor Ohm Diode NCV Hz EMF Tester Detector meter - China / S10 AAA Battery is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Description
Description
SPECIFICATIONS
V-Alert(non-contact voltage detection): Yes.

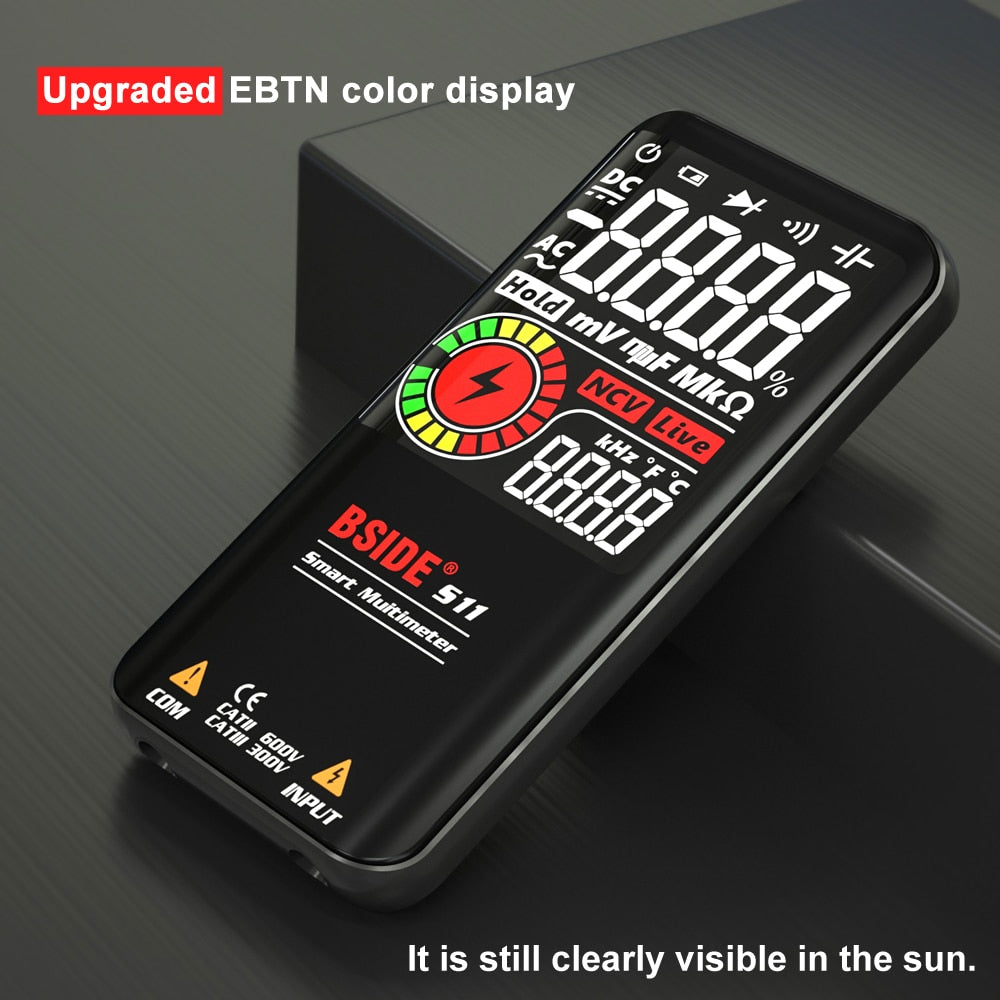

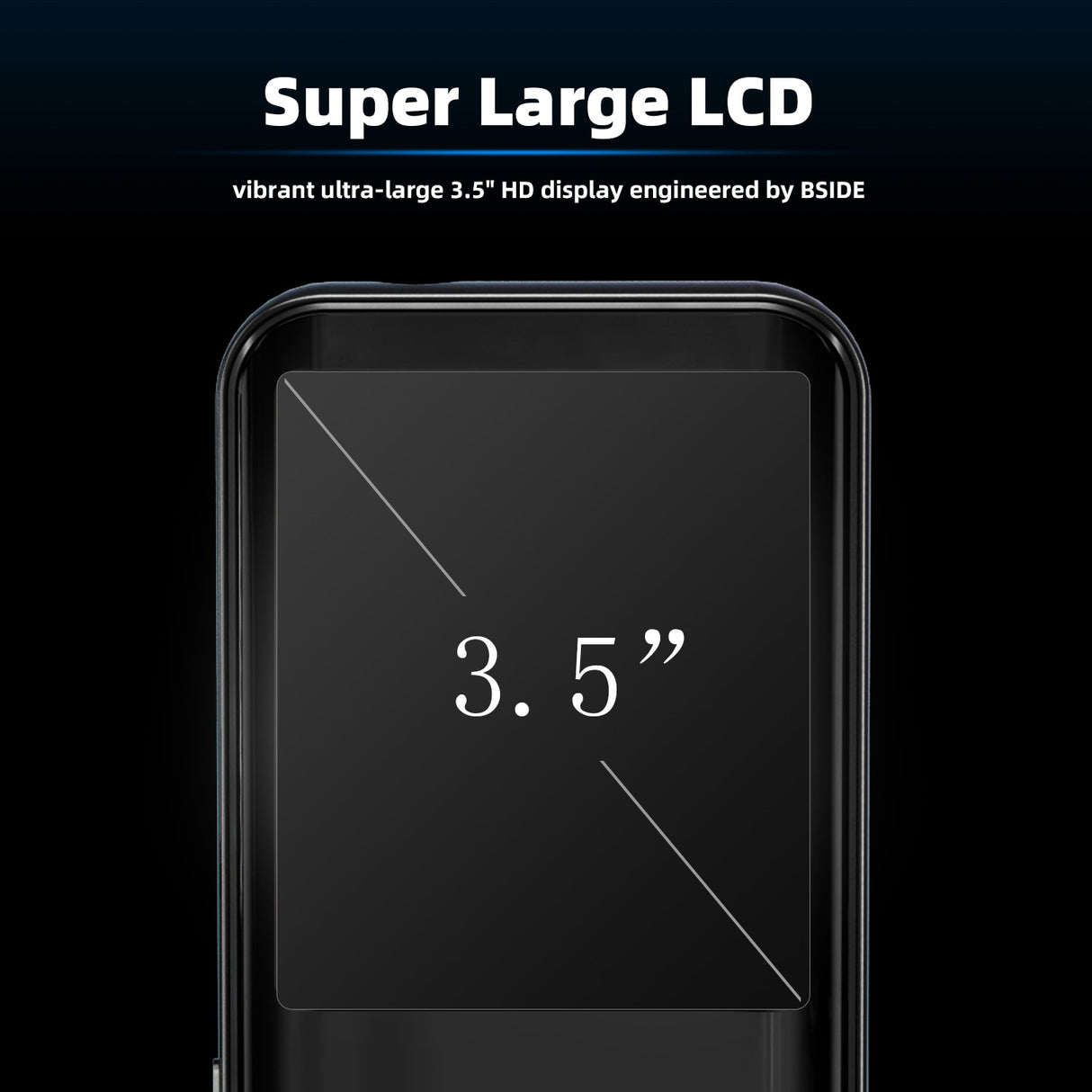

Screen: 3.5 inch
Resistance: Yes.
Power: Support rechargeable battery (included in package)
Origin: Mainland China
Operating Temperature: 0 - 40 ℃
Operating Mode: Automatic mode
Model Number: A10 / S11 / S20
Measuring Resistance Range: 60/99.99MOhm
Measuring Inductance Range: N/A
Measuring Capacitance Range: 60/99.99mF
Live Check: Yes.
Is Smart Device: YES
Frequency: Yes.
Duty Cycle: Yes.
Display Type: Digital display

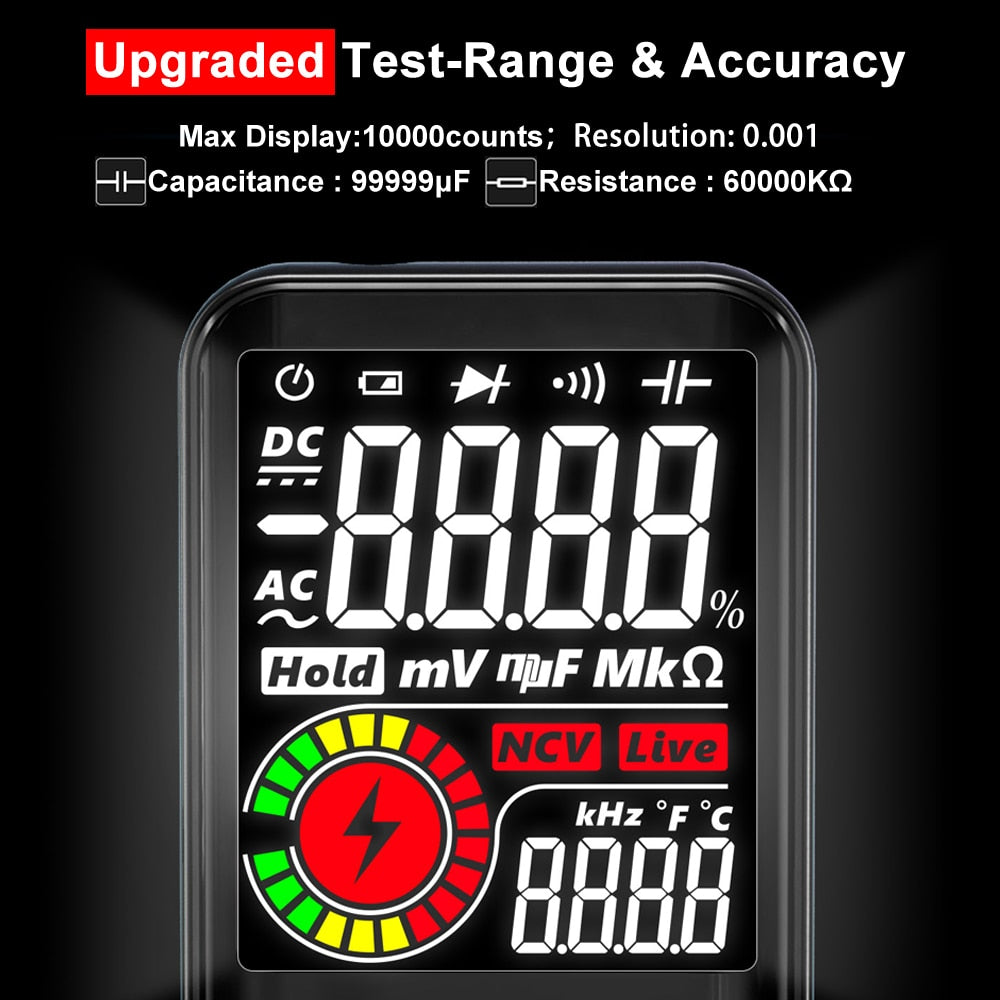

Display: 9999 counts
Diode: Yes.
Dimensions: 147*85*4.2mm
DIY Supplies: ELECTRICAL
DC/AC Voltage: Yes.
DC Voltage: 0 ~ 620V
DC Current: N/A
Continuity: Yes.
Certification: CE,FCC,RoHS
Capacitance: Yes.
Brand Name: BSIDE
AC Voltage: 0 ~ 620V
AC Current: N/A

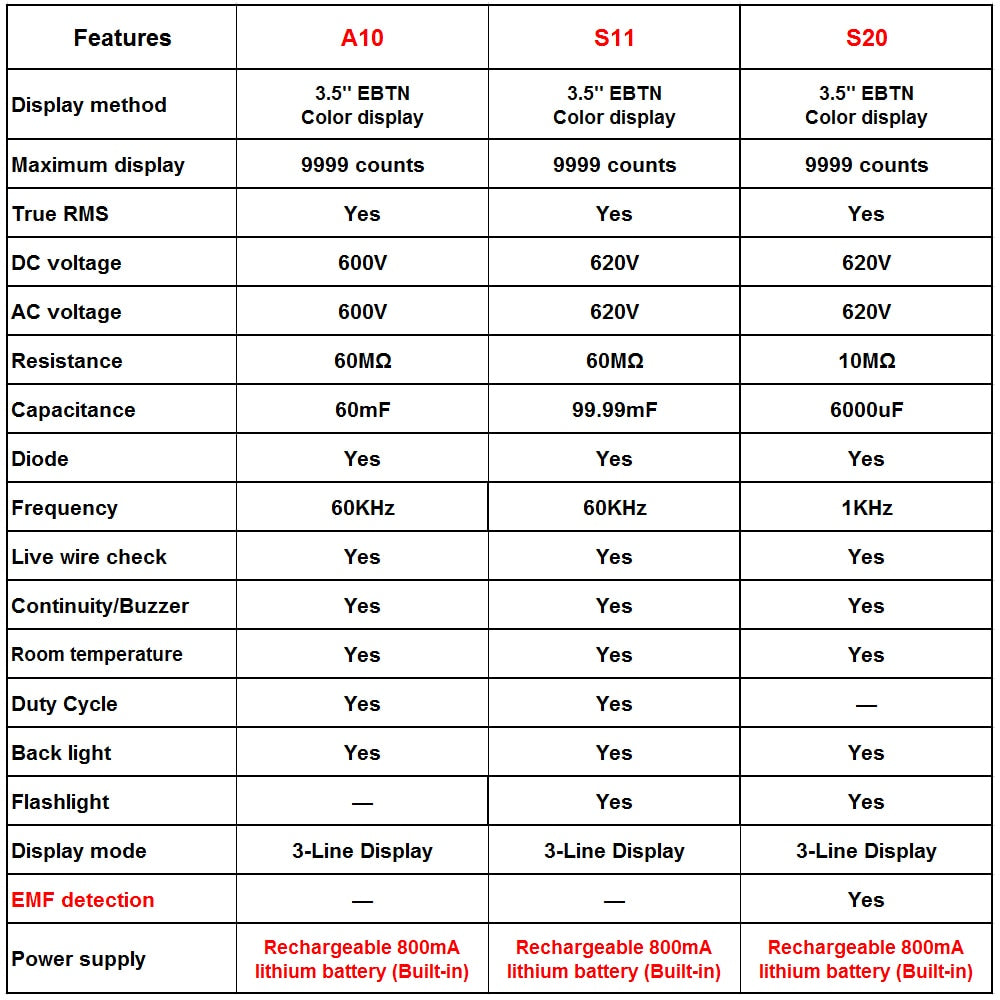

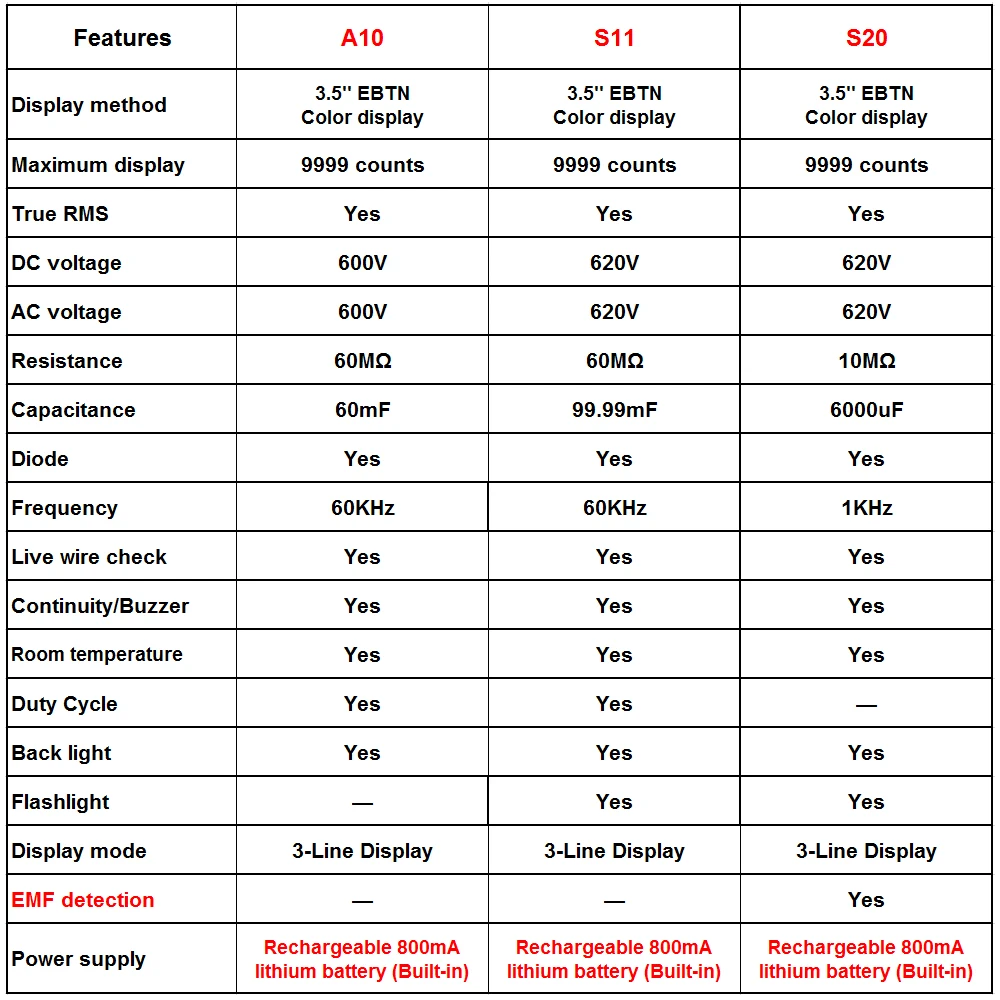

Order Notice:

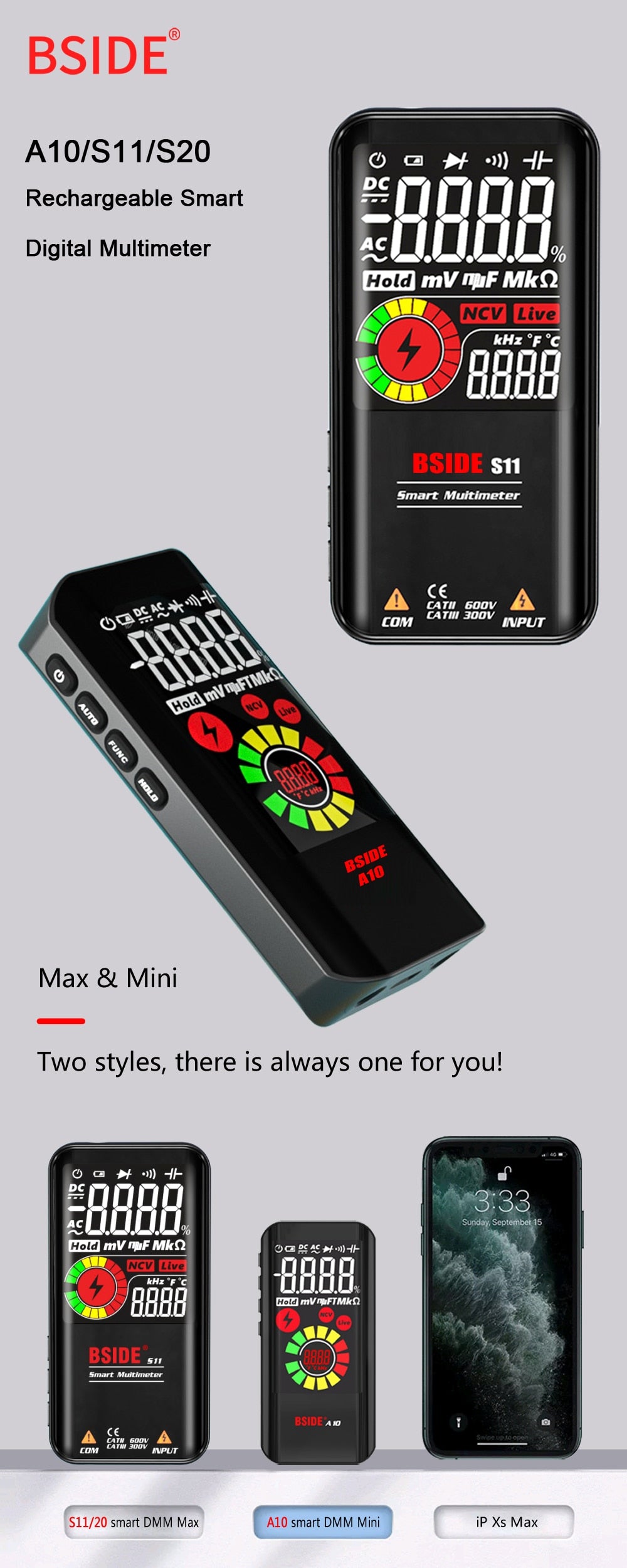

The A10 product is currently the most cost-effective smart multimeter with a built-in rechargeable lithium battery on the market.
S11 has two colors (Black/Red).
The S20 product is the highest version of the series, adding EMF detection function.

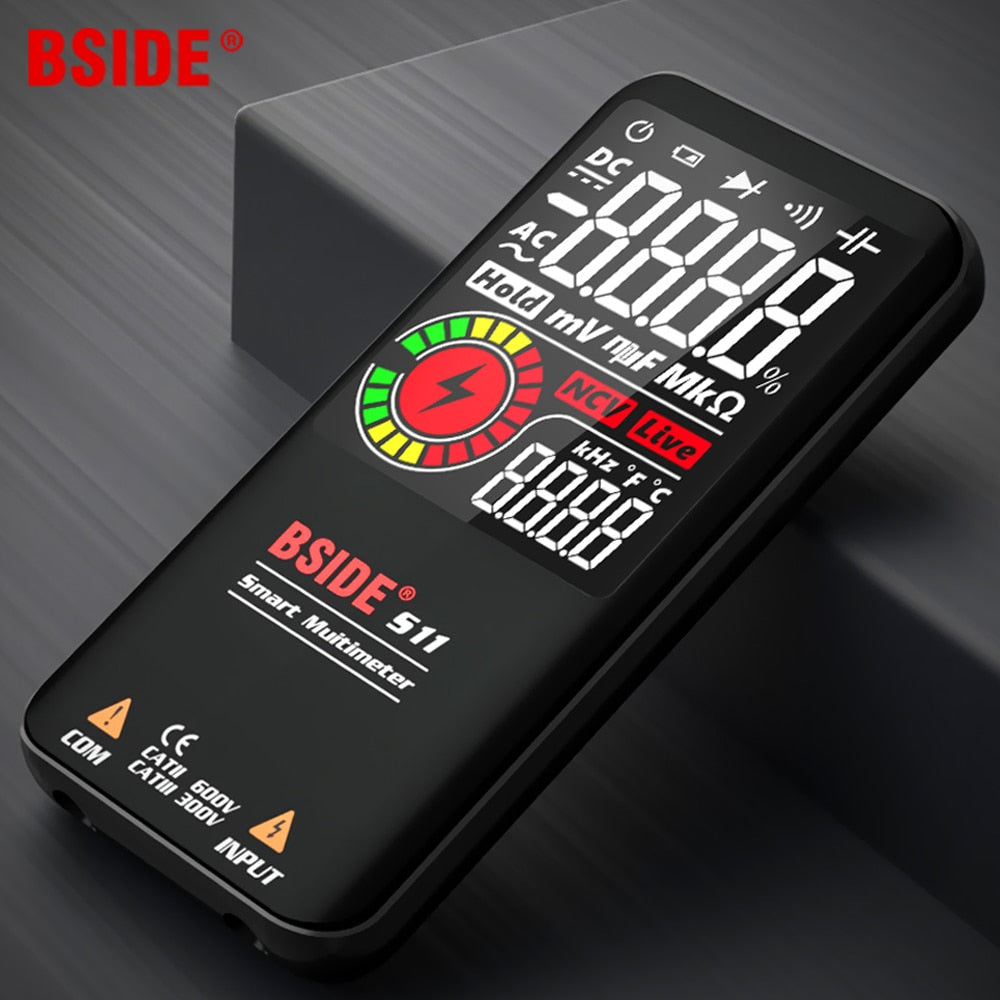

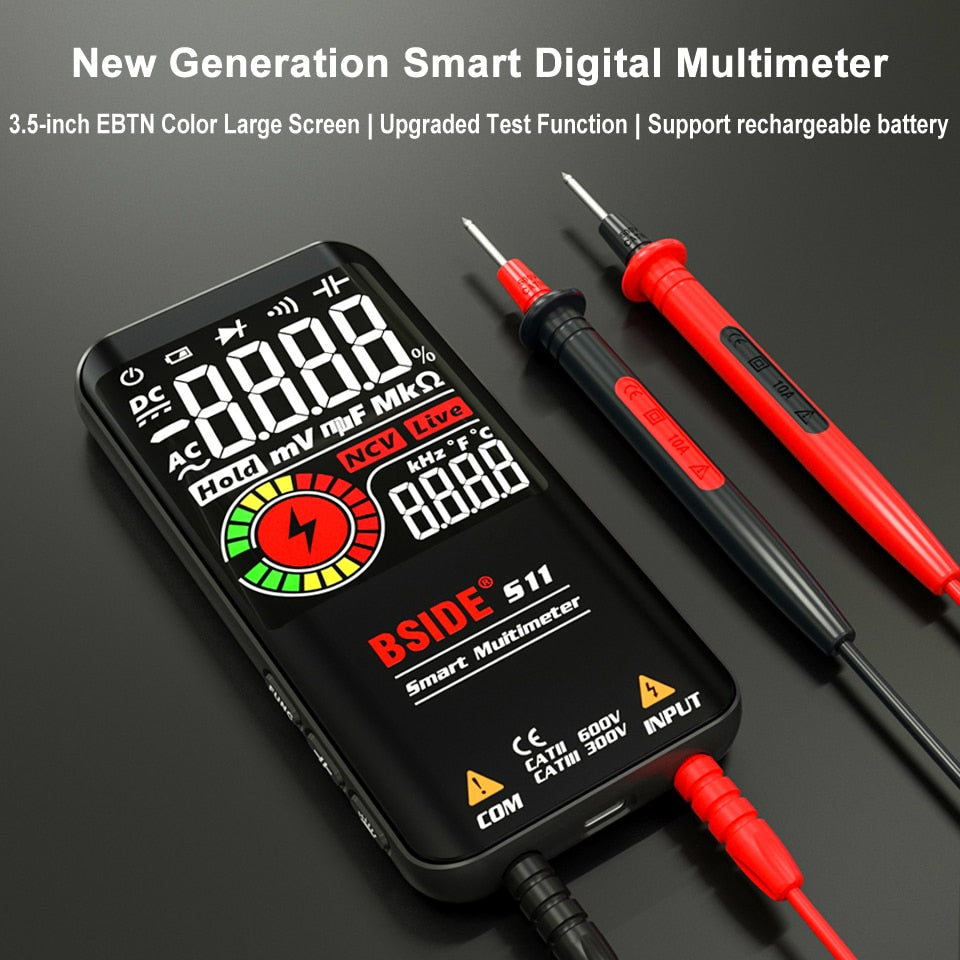

S11 Specifications:
Display: 9999 counts.
Screen: 3.5 inch.
DC Voltage: 0.8V-620V ±(0.5%+3); Resolution: 0.001V.
AC Voltage: 2.2V-620V ±(0.5%+5); Resolution: 0.001V.
Resistance:1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω.

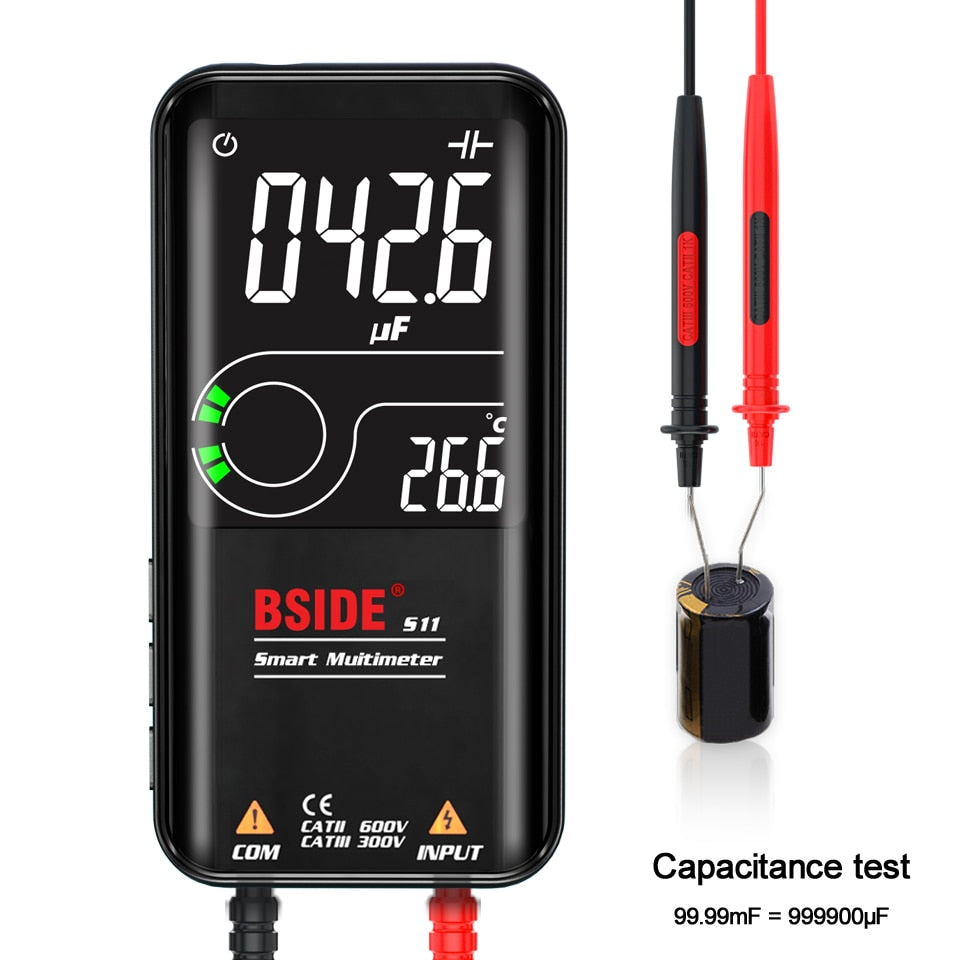

Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF.
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz.
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V); Resolution: 0.001Hz.
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%.
Diode: Auto identify diode if less than 3.0V.

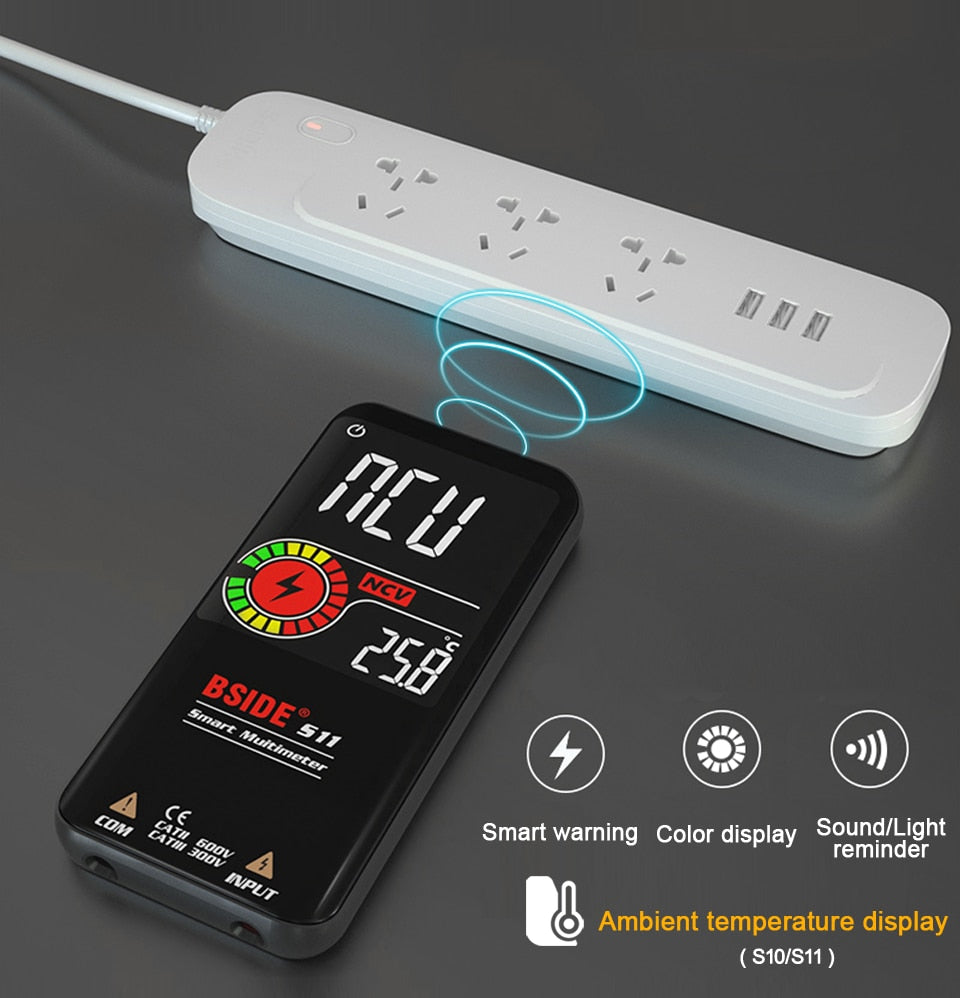

V-Alert(non-contact voltage detection): beep alarm sounds.
Live Check: alarm beep sounds, LCD screen display stripe.
Continuity: If the resistance is less than 30Ω, the beeper sounds.

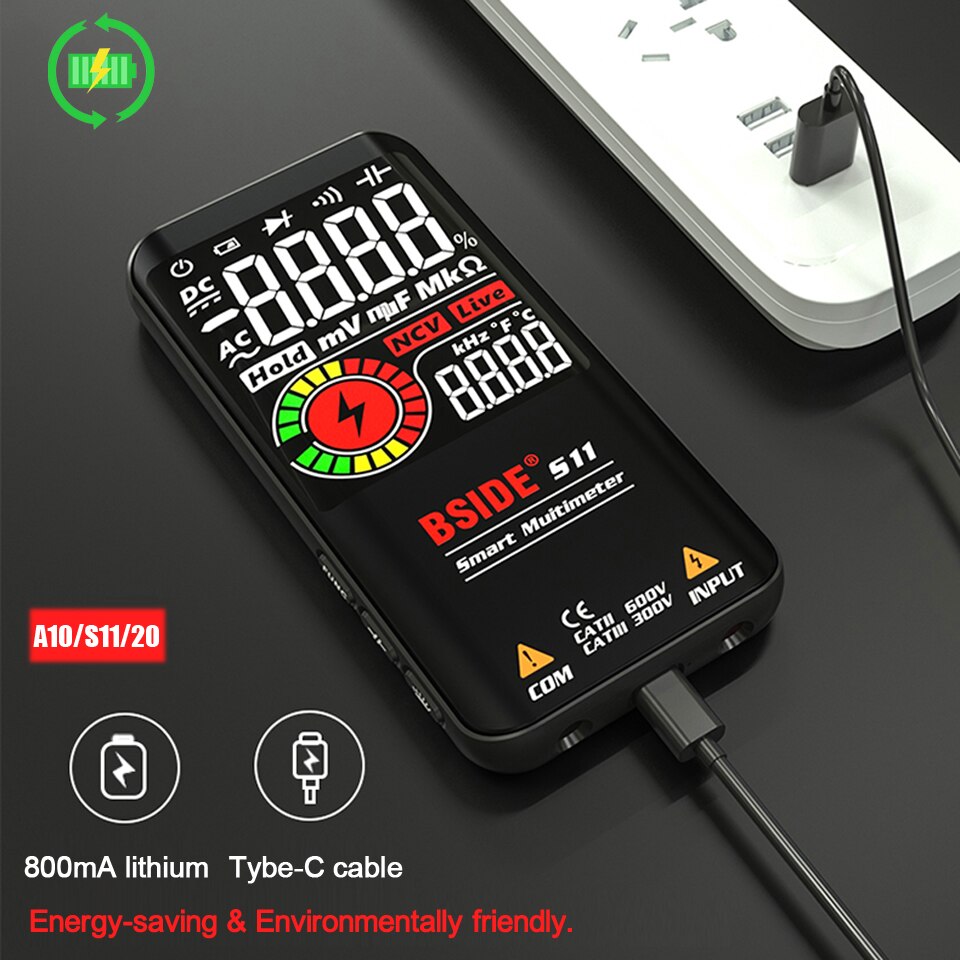

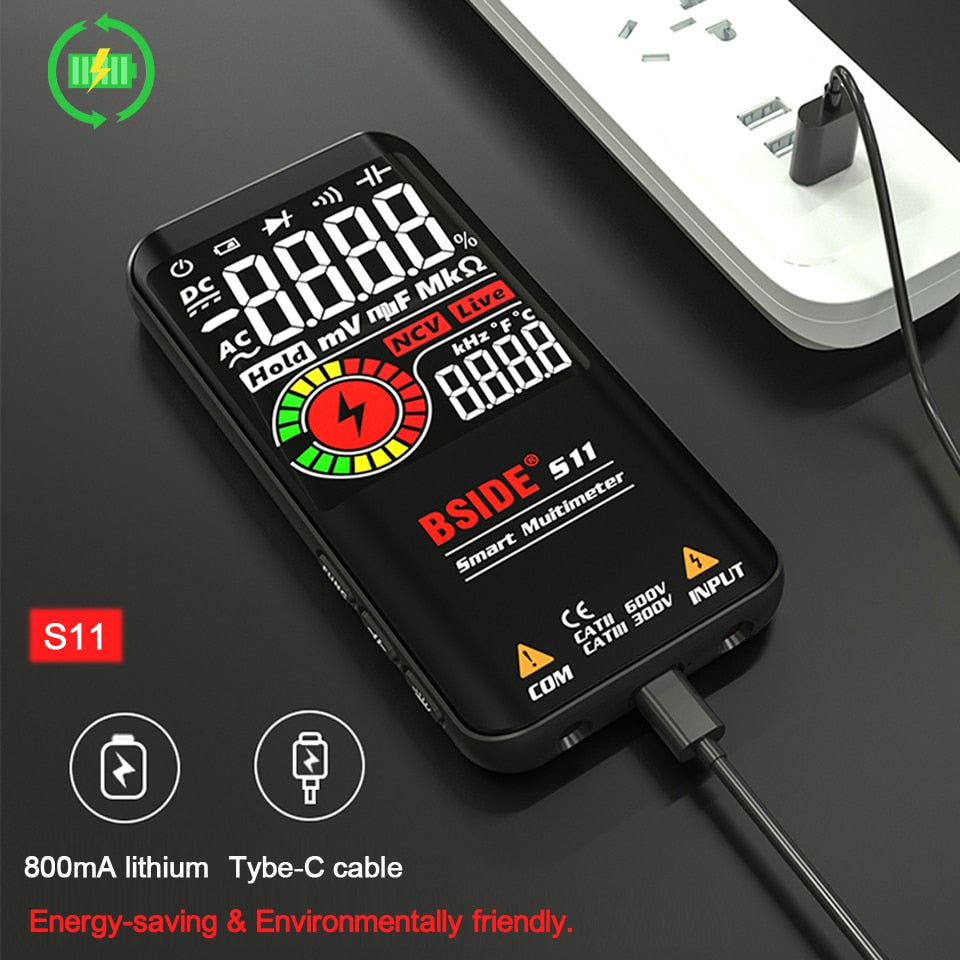

S11 Power: Built-in rechargeable lithium battery.

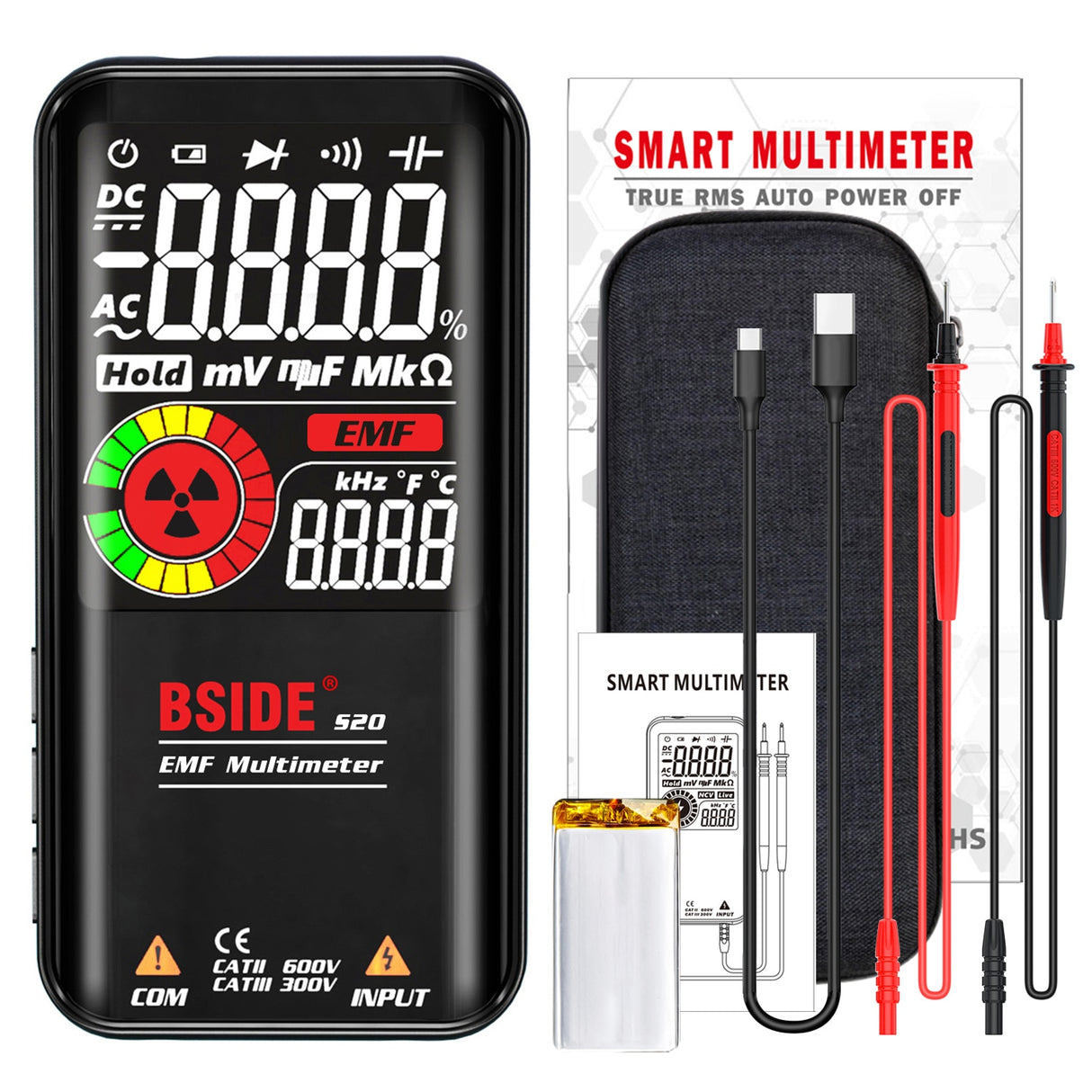

S20 Specifications:
DC Voltage: 0.5V-620V ±(0.8%+3); Resolution: 0.001V
AC Voltage: 1.0V-620V ±(1.2%+5); Resolution: 0.001V
Resistance:1Ω-10.0MΩ ±(1.2%+3); Resolution: 0.1Ω
Capacitance: 0.5uF-1000uF ±(3.5%+8), 1000uF-6000uF ±(4.5%+10); Resolution: 0.1uF
Frequency: 10Hz-1000Hz ±(2.0%+10); Resolution: 1Hz
Diode: Measure diodes within 1.0V

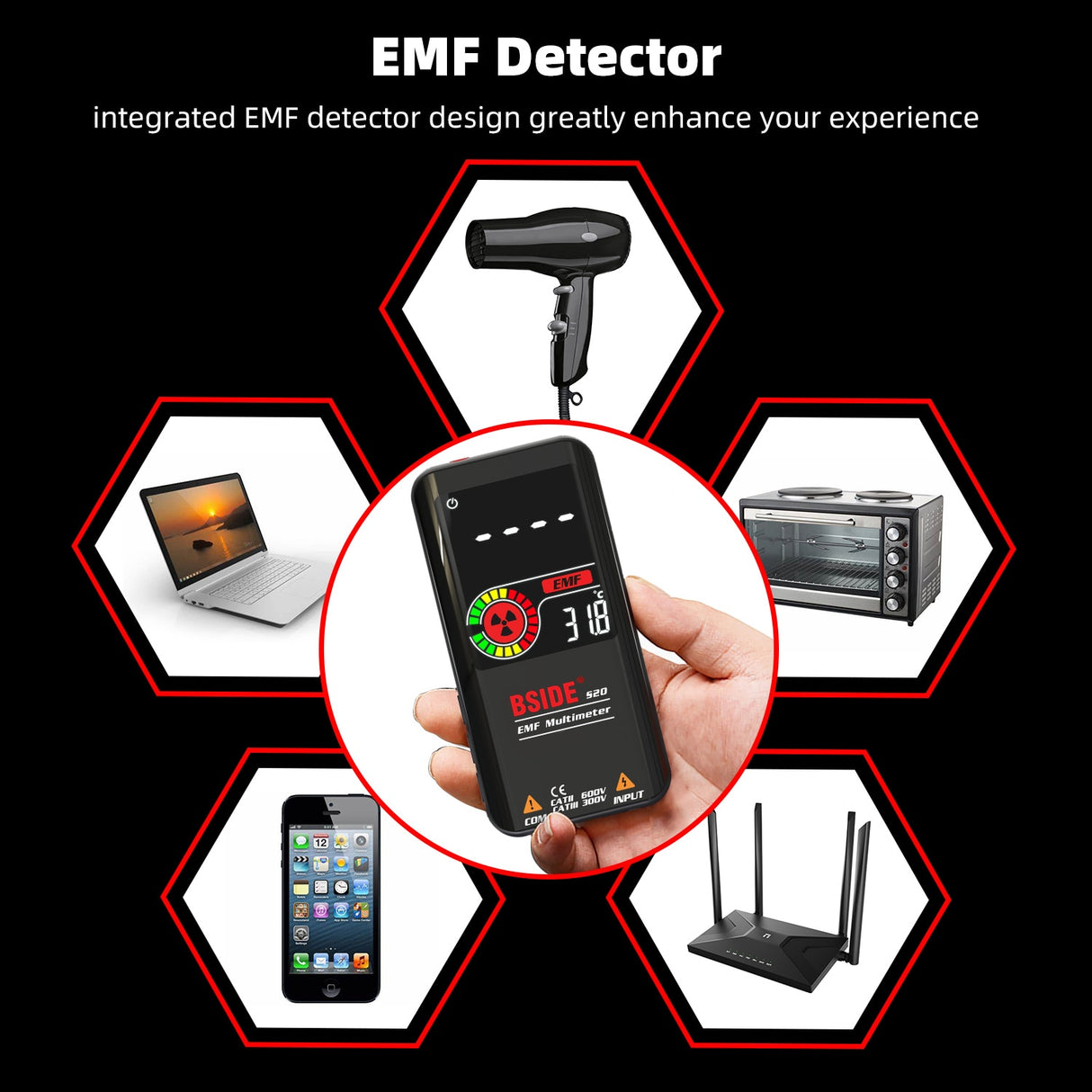

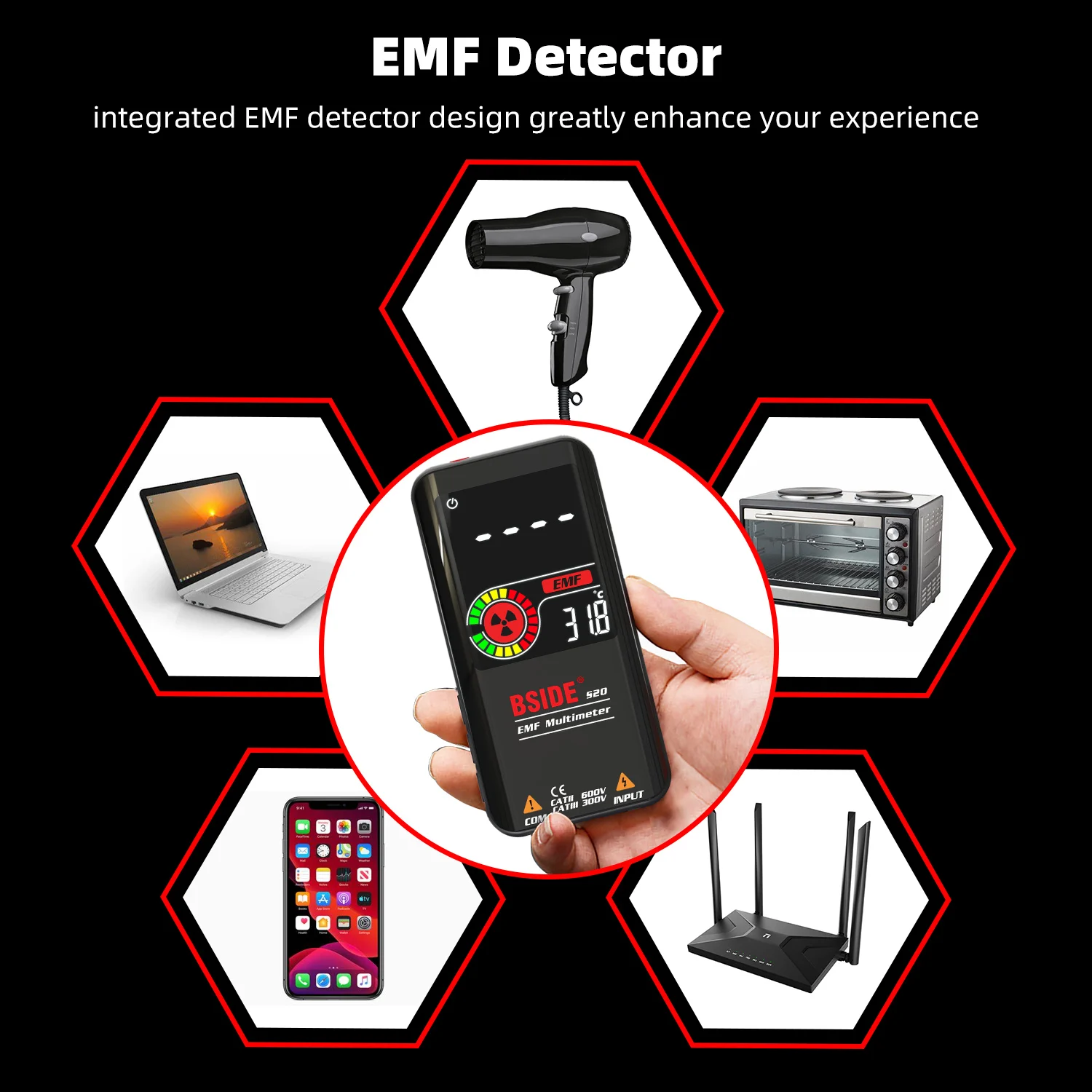

EMF Detect: alarm beep sounds, LCD screen display stripe.
Live Check: alarm beep sounds, LCD screen display stripe
Continuity: If the resistance is less than 30Ω, the beeper sounds
S11/20 Package Size: 147*85*42mm.
S11/20 Package Weight: 180g

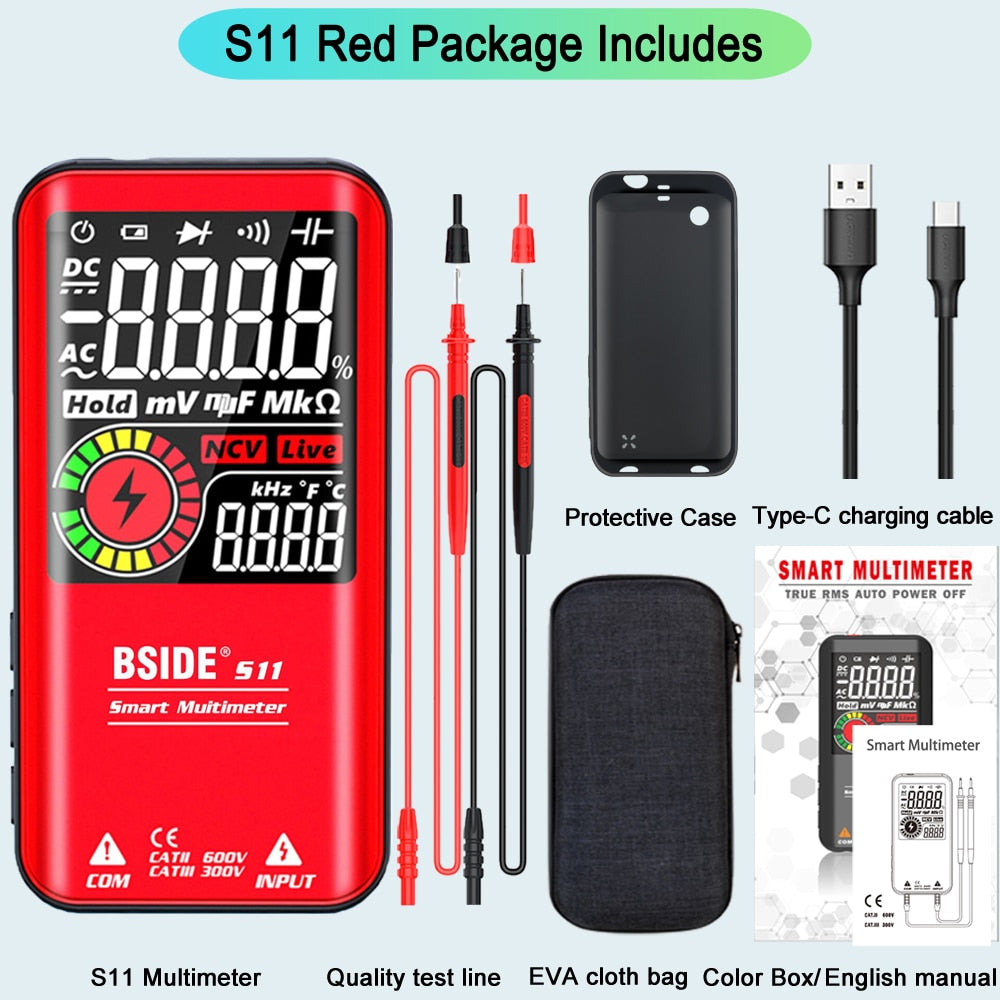

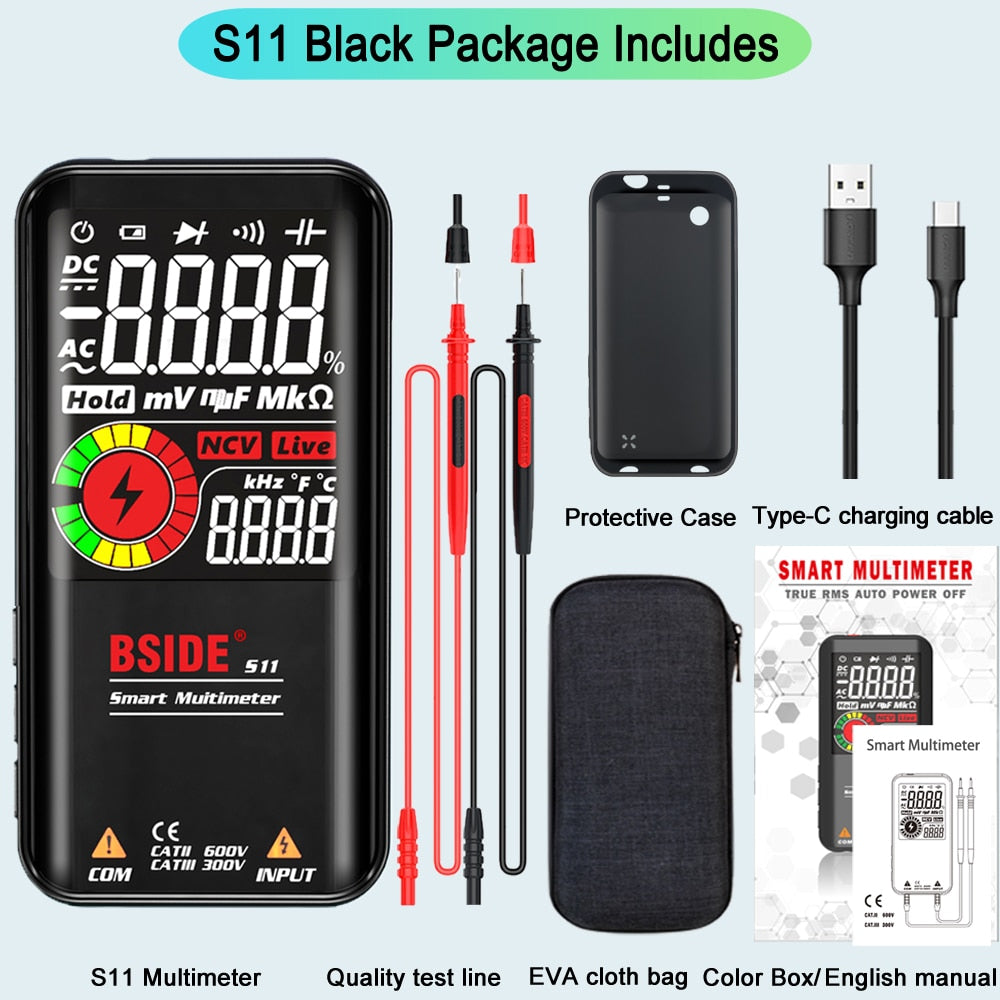

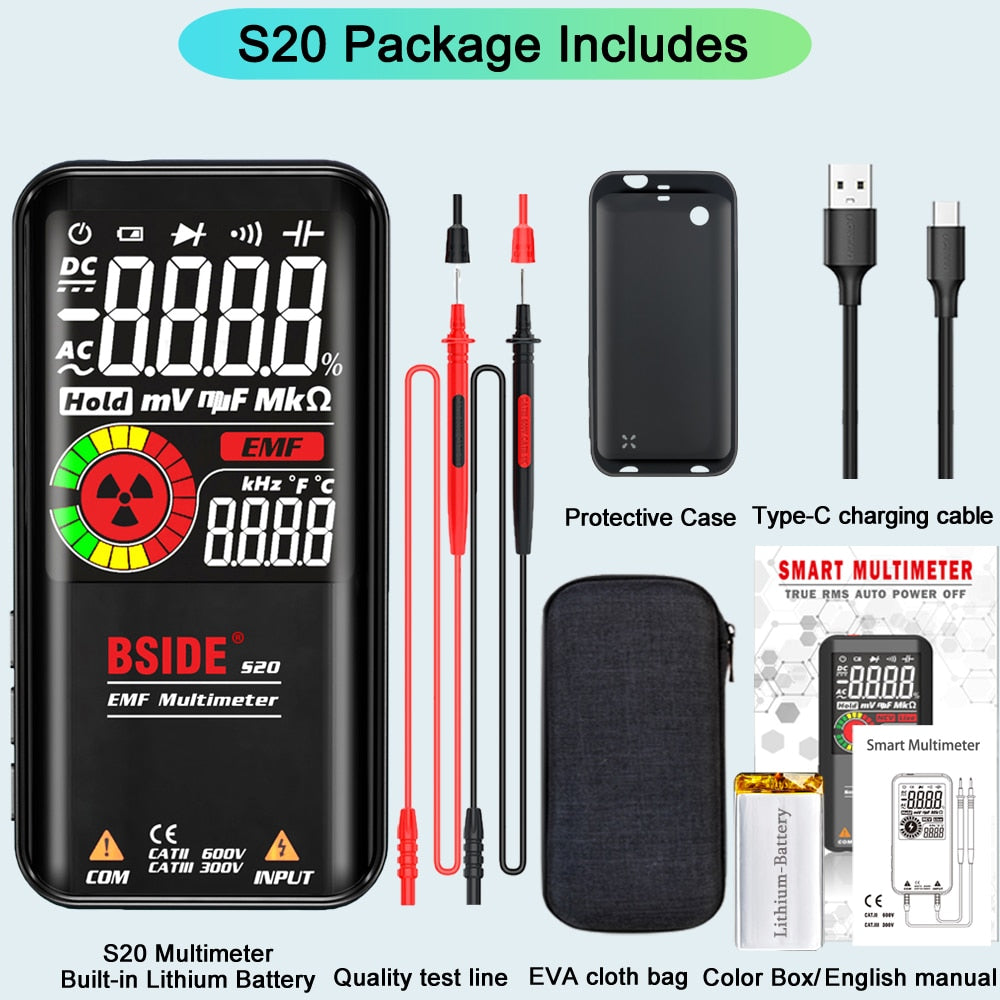

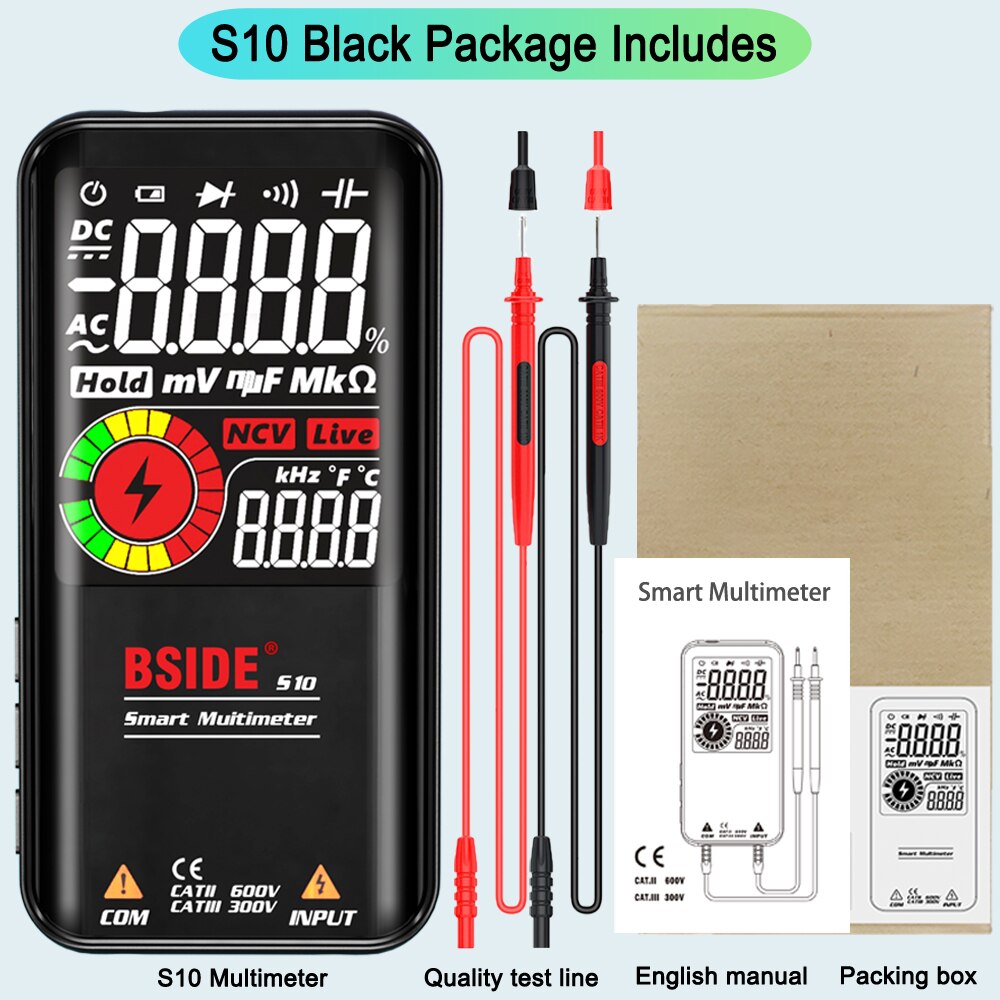

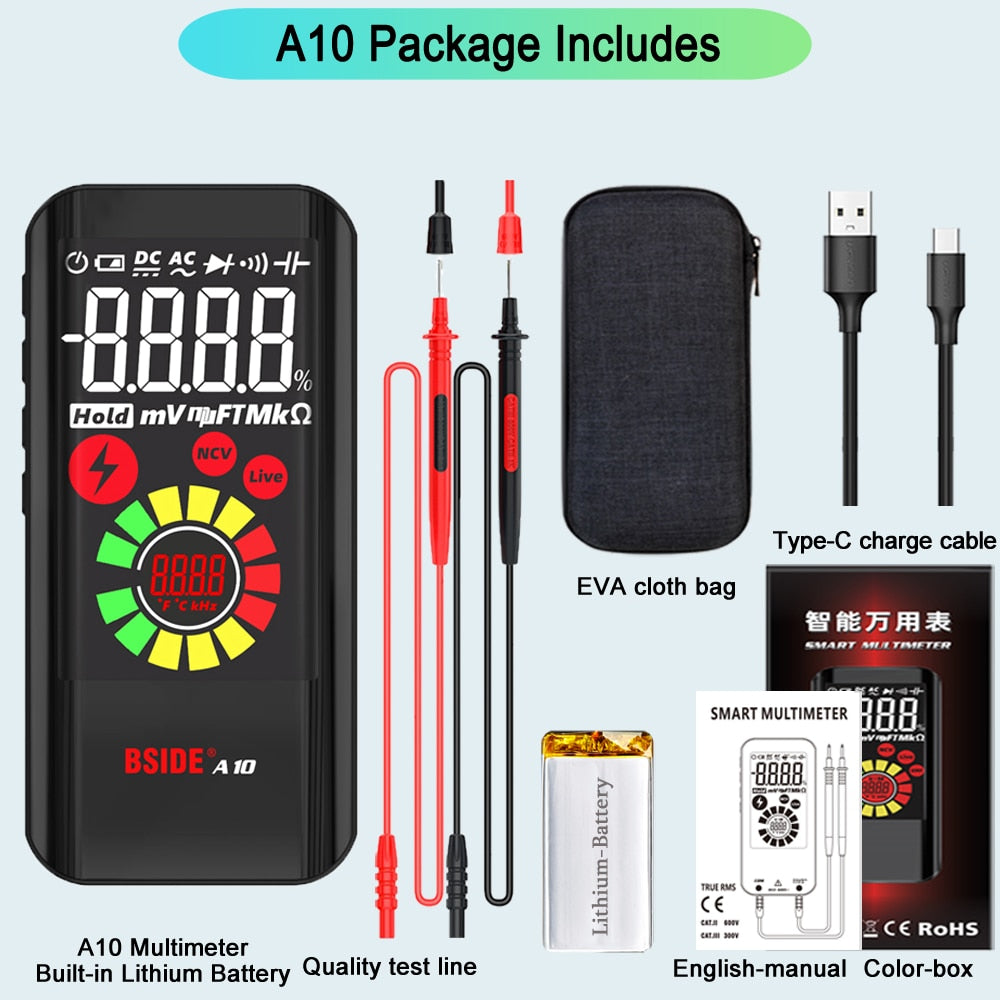

Package Includes:
1 * Multimeter. 1 * Test Lead.
1 * English user Manual. 1 * Packing Box.
1 * USB charging cable.
1 * EVA portable cloth bag.

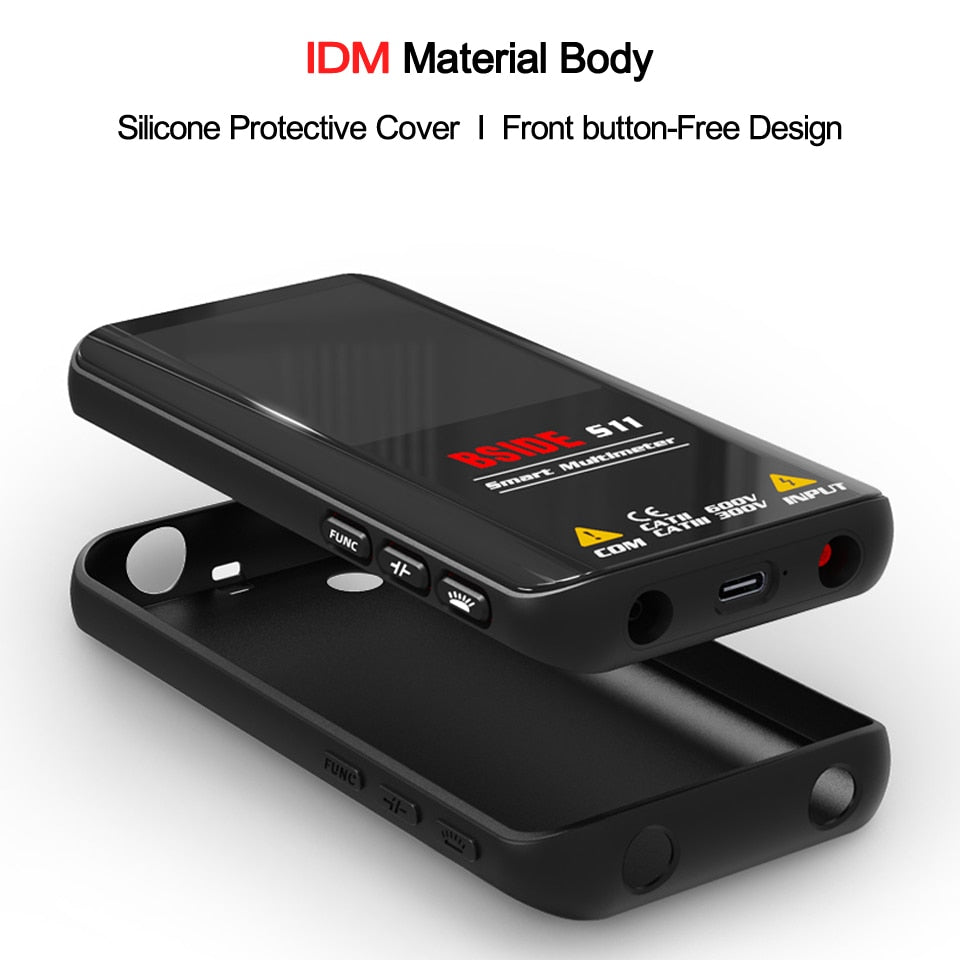

1 * Protective shell.（S11/S20）
