SPECIFICATIONS

Brand Name: BSIDE

Bside Model: HX1/HX3

Certification: CE,FCC,RoHS

Choice: yes

Display Size: 2.0 - 3.9 Inches

Display Type: analog

Hign-concerned Chemical: None

Is Smart Device: Yes

Max Measuring Temperature: 120°C & Above

Model Number: BSIDE HX1/HX3 Thermal Imager Camera

Origin: Mainland China

Power Type: Charger

Style: Handheld

Theory: Multifunctional Thermometer

Use: Industrial

semi_Choice: yes

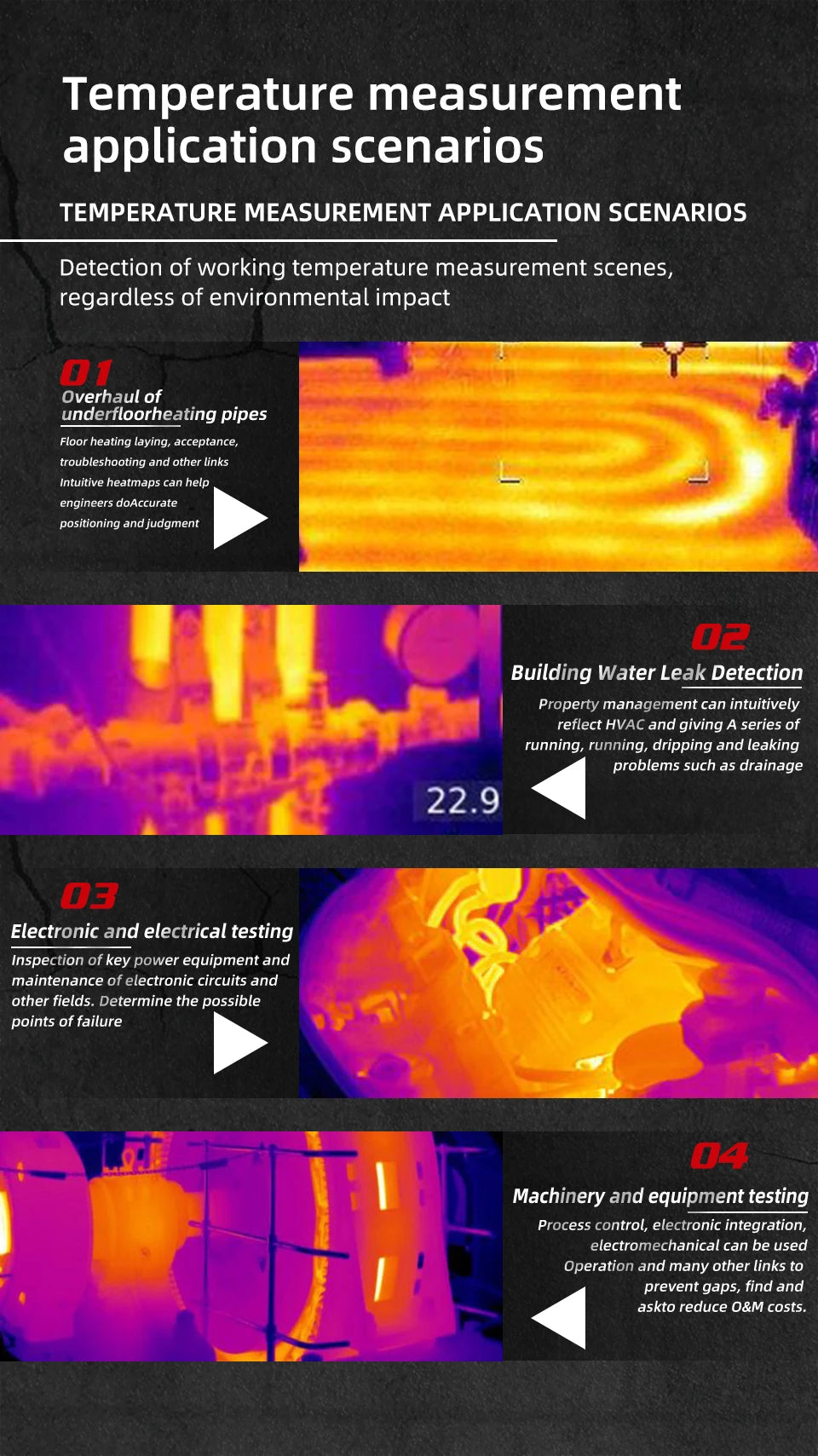

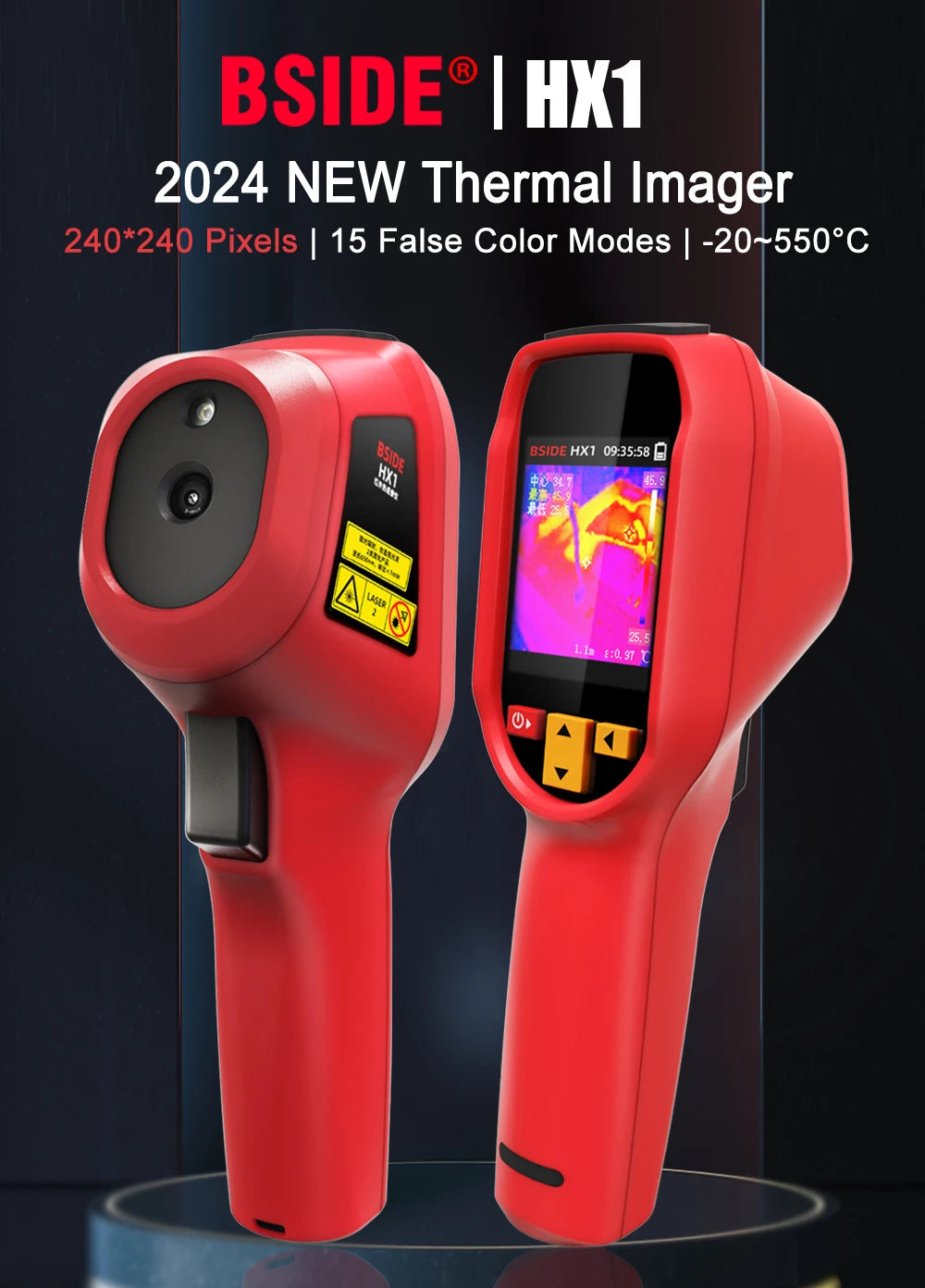

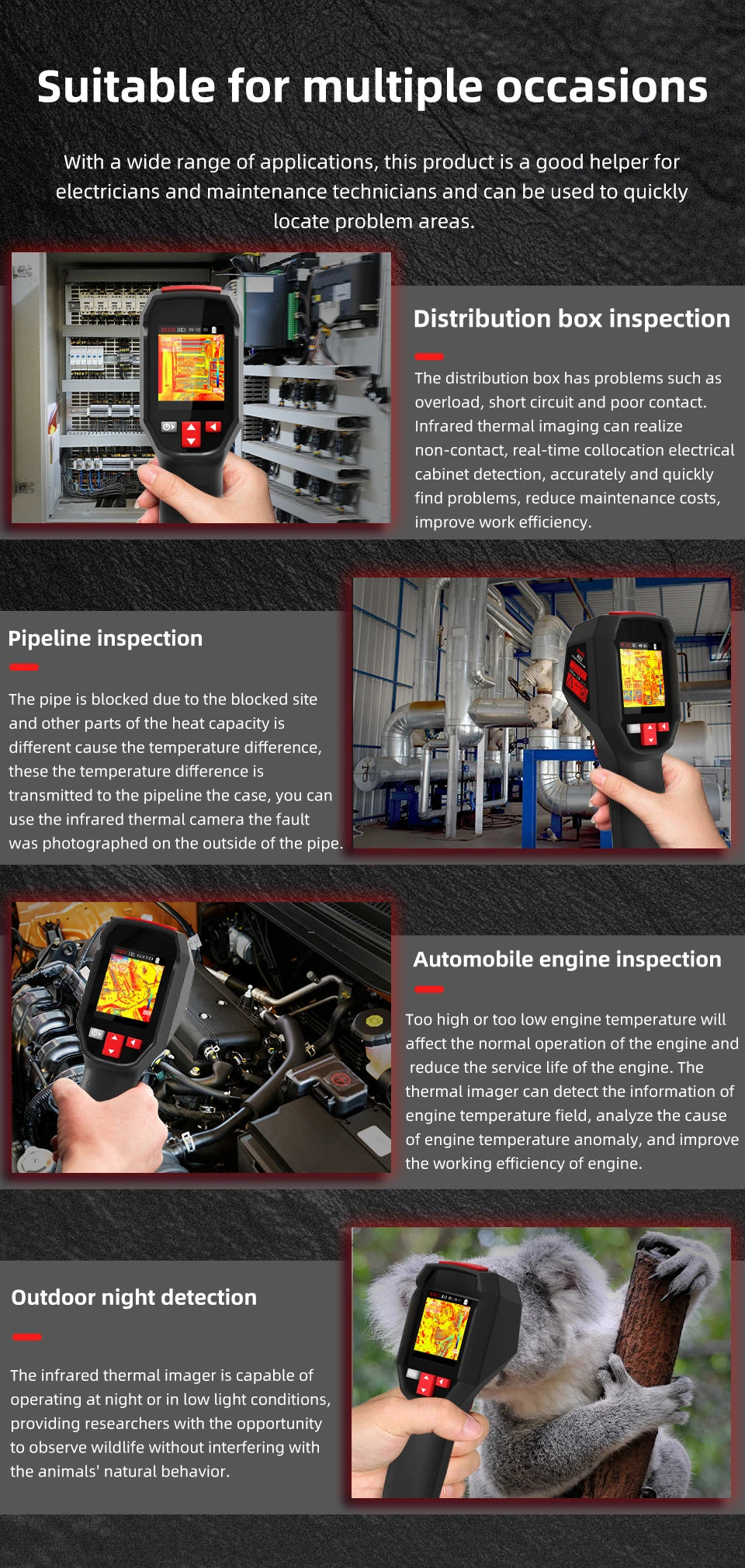

BSIDE HX1/HX3 Thermal Imager NEW Camera Laser Thermographic HD Resolution For Circuit PCB Repair Pipeline Detection Medical

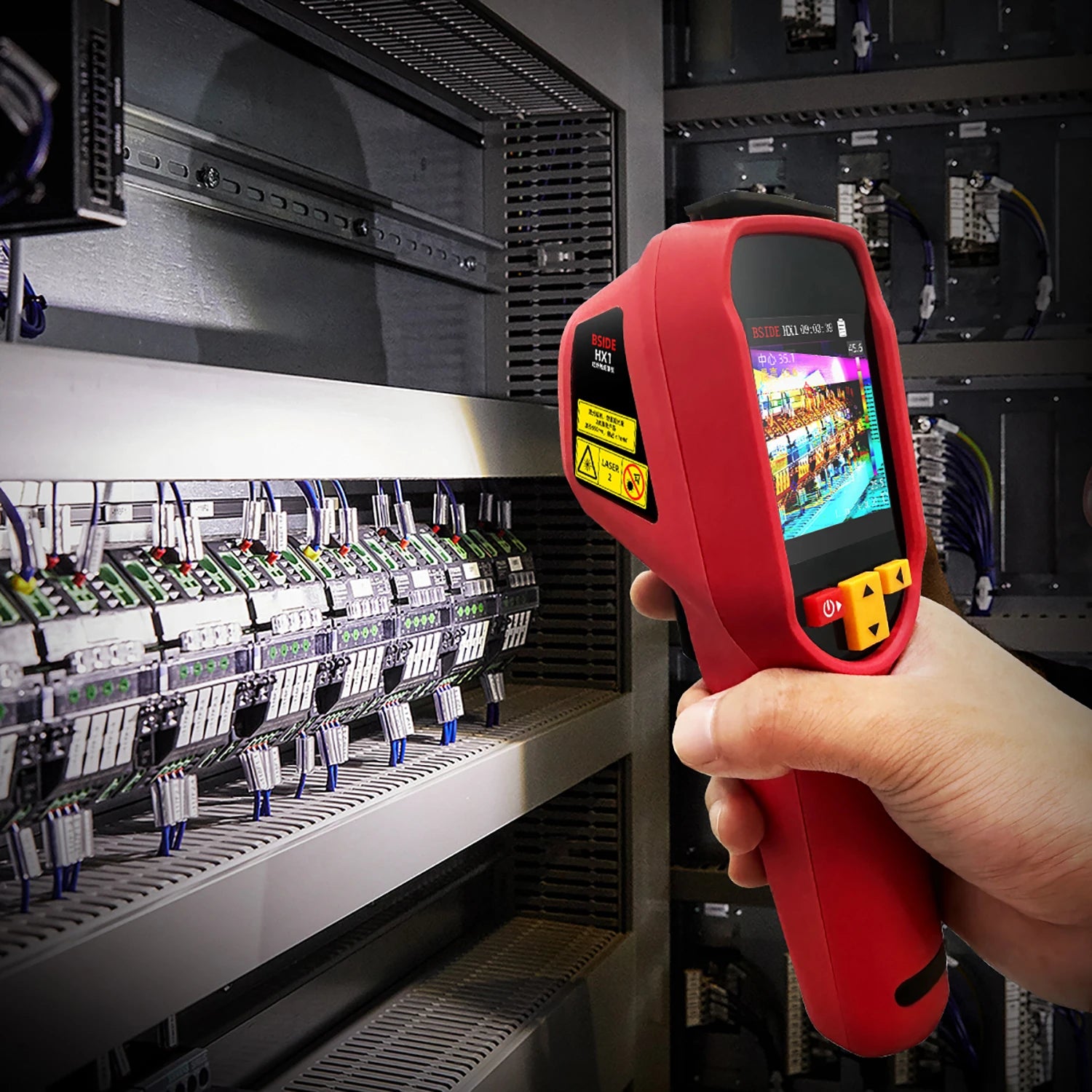

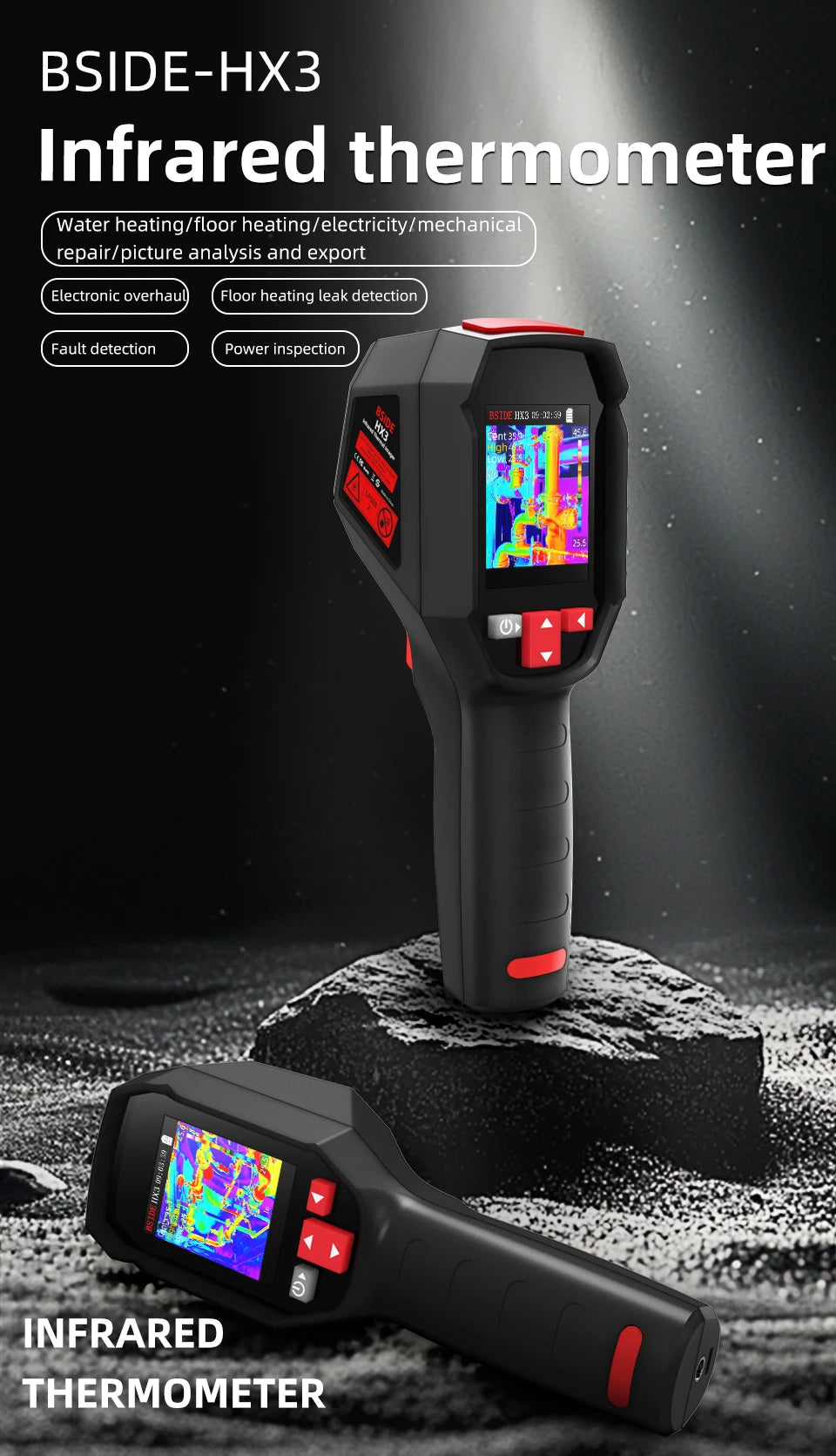

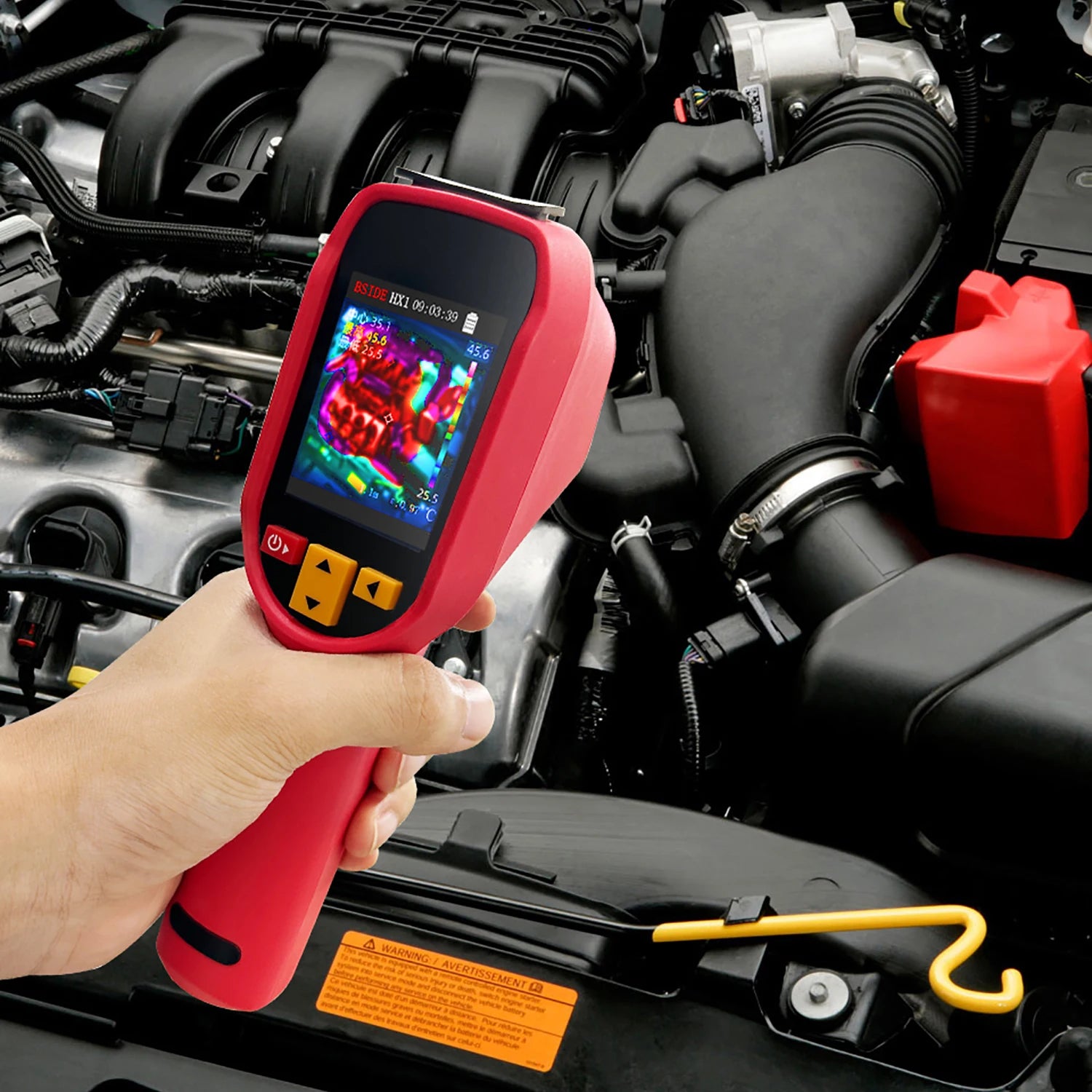

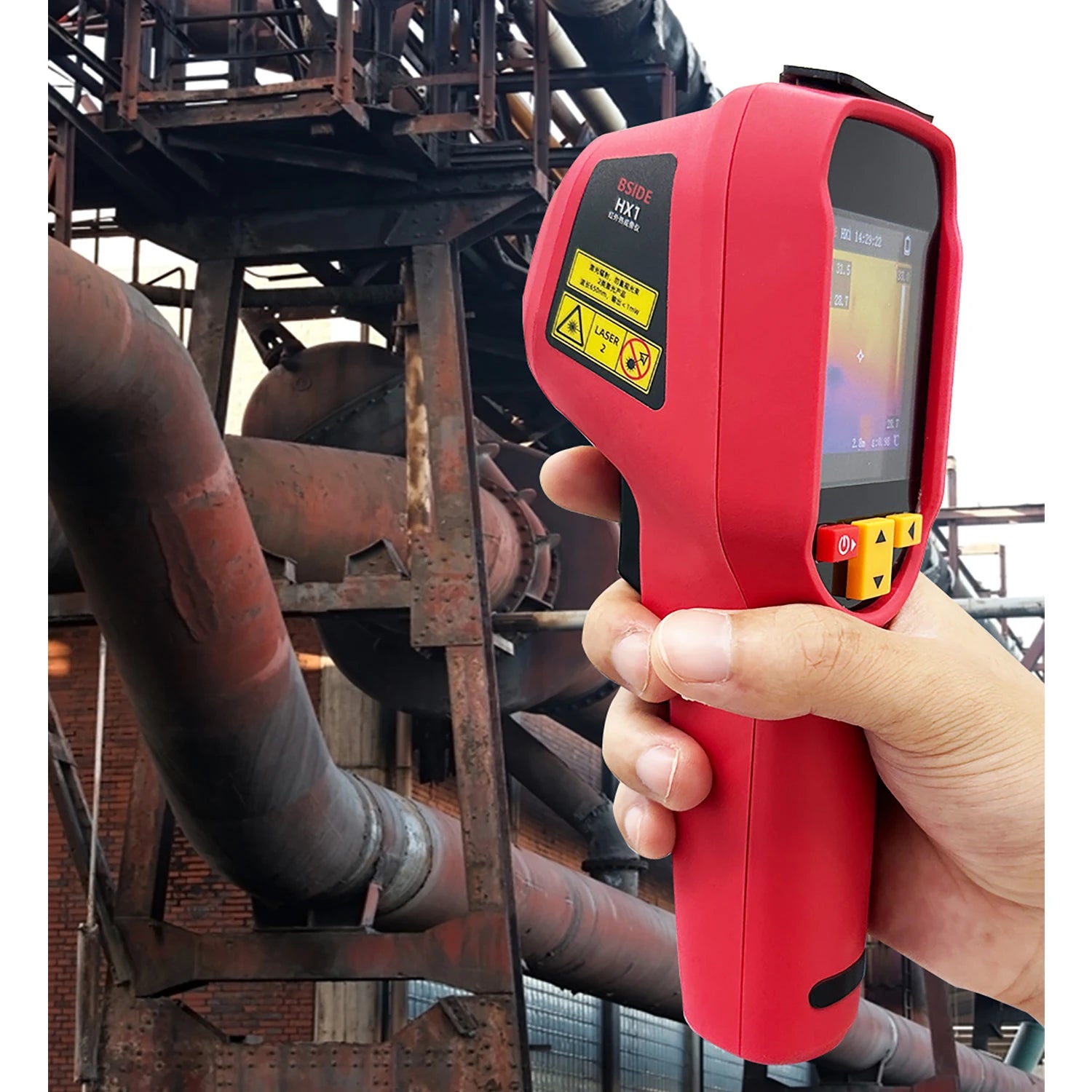

BSIDE HX1/HX3 is new handheld thermal imaging camera that combines temperature measurement and imaging.

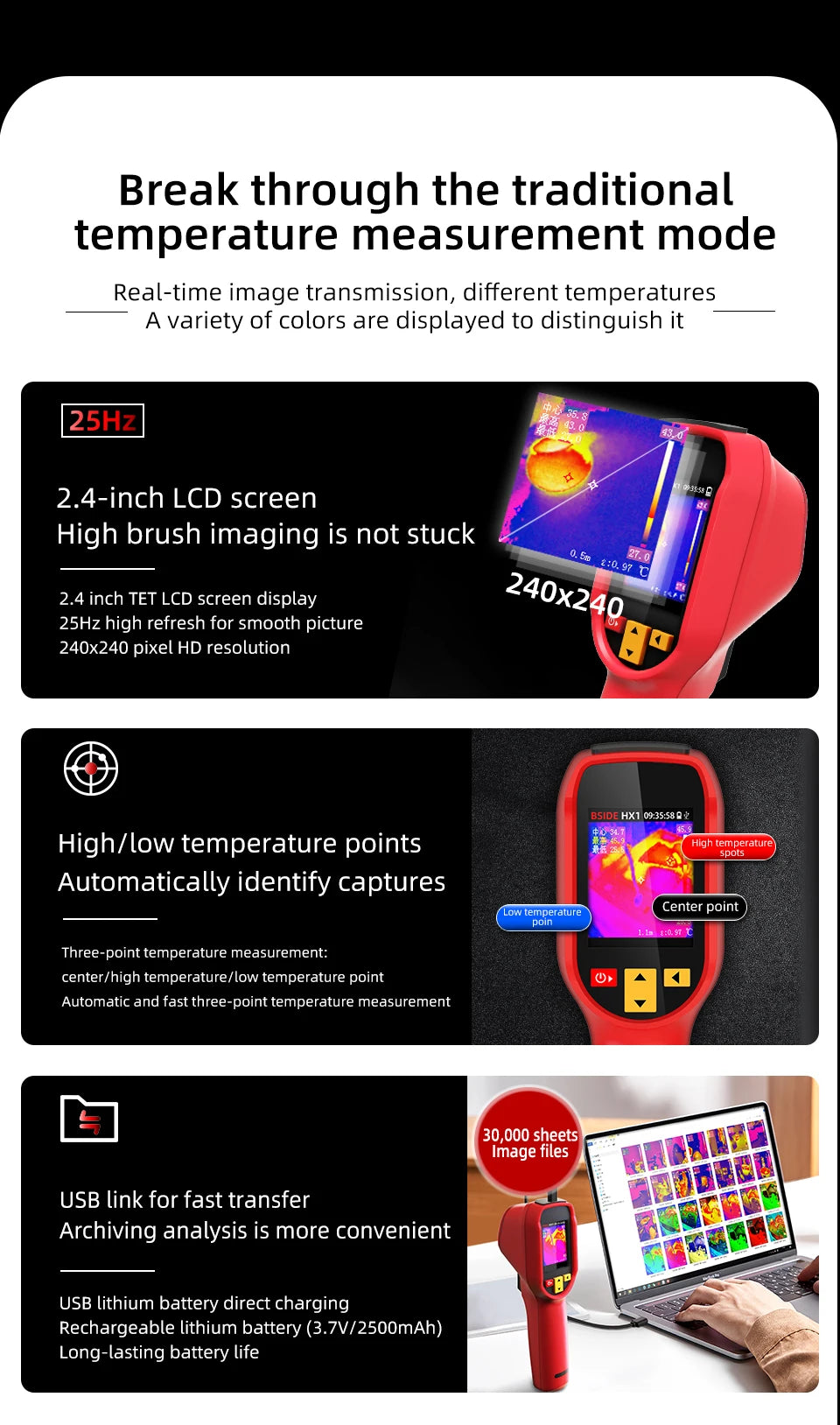

2.4-inch screen，15 pseudo color modes ,  Thermal image resolution: 240*240Px, Infrared Thermal Imager Pixels: 96x96(25Hz Frame rate), Uses cutting-edge image stabilization technology

; High-accuracy High/Low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.

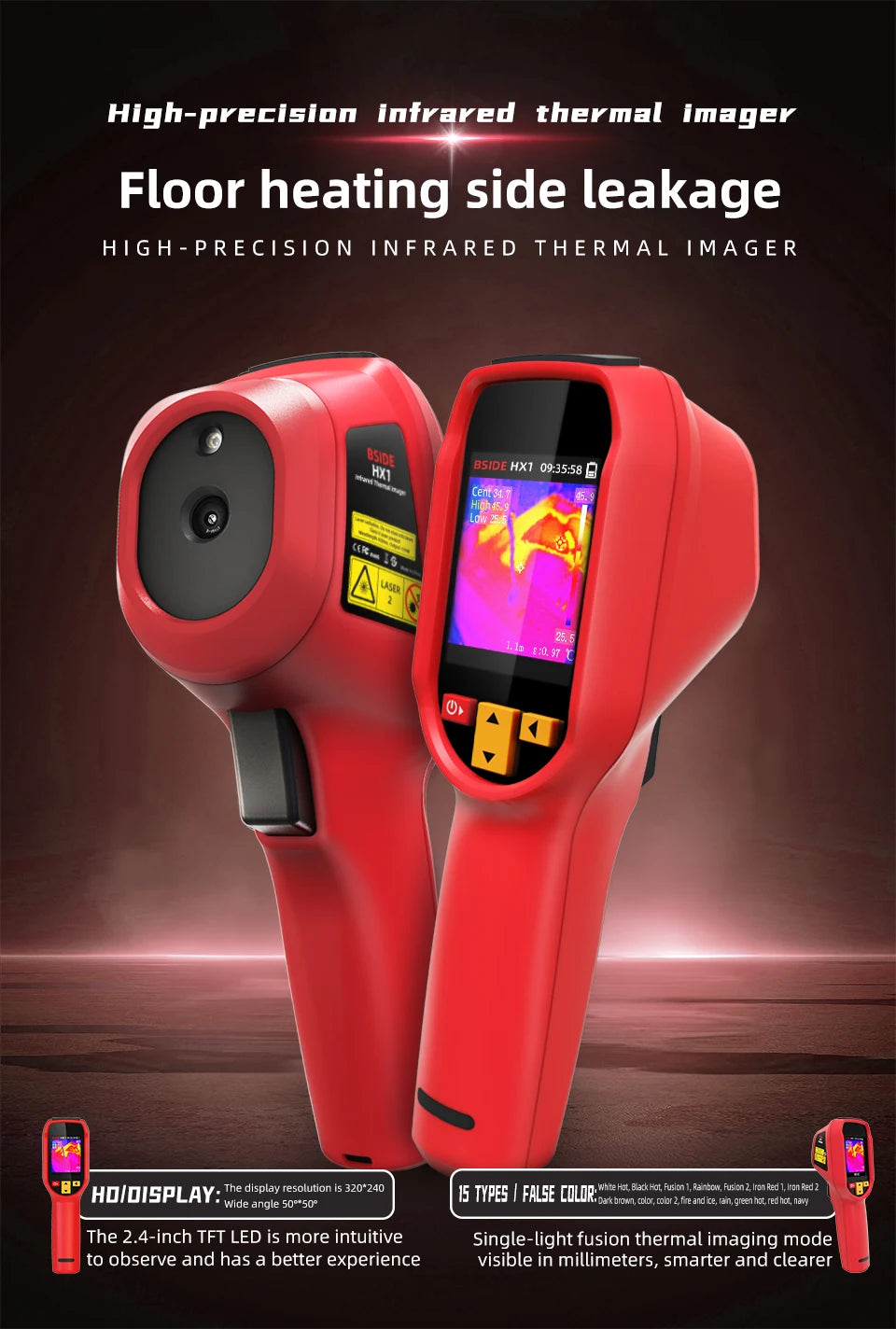

BSIDE HX1 : The body adopts double injection molding process Durable.

BSIDE HX3：The body adopts single injection molding process，Better value for money.

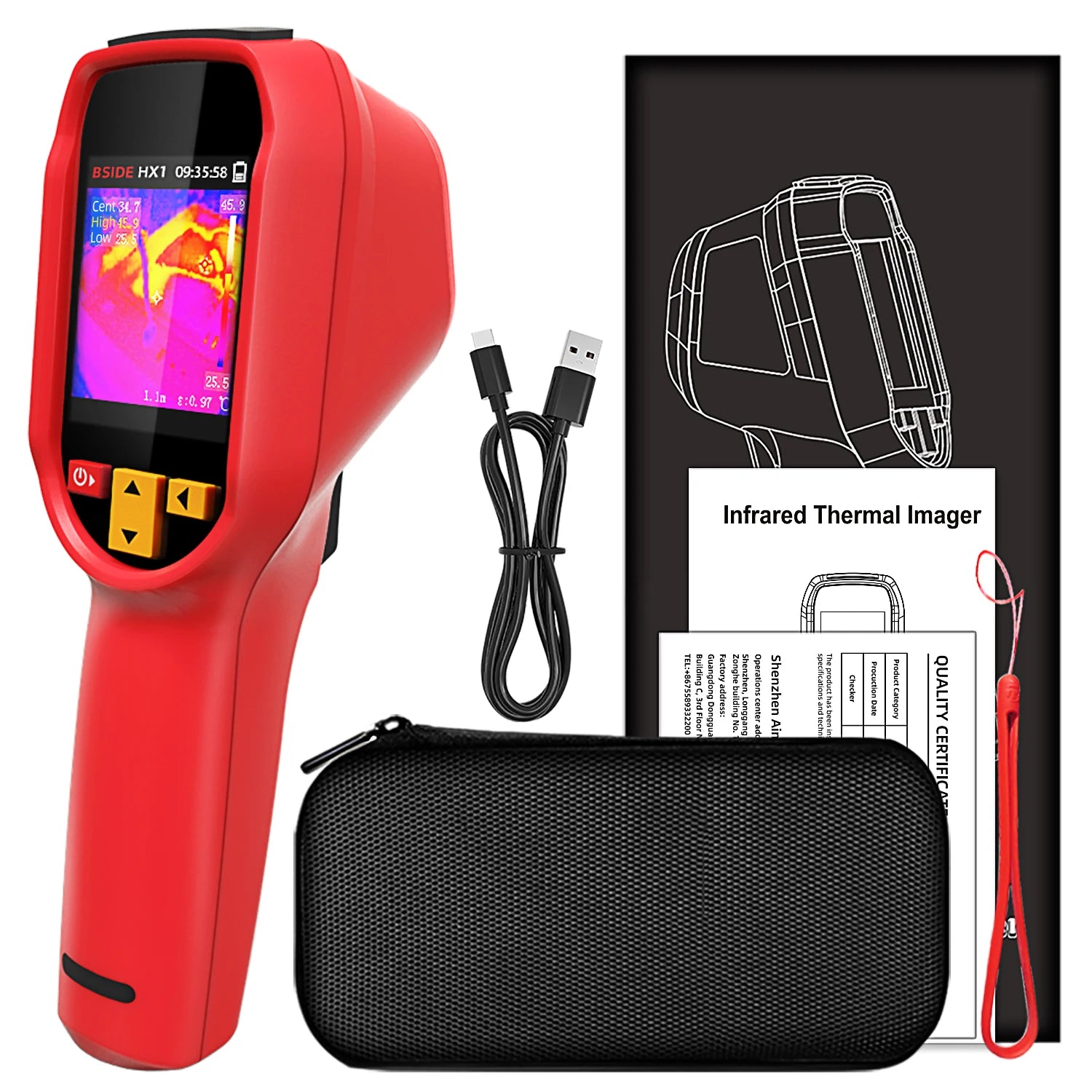

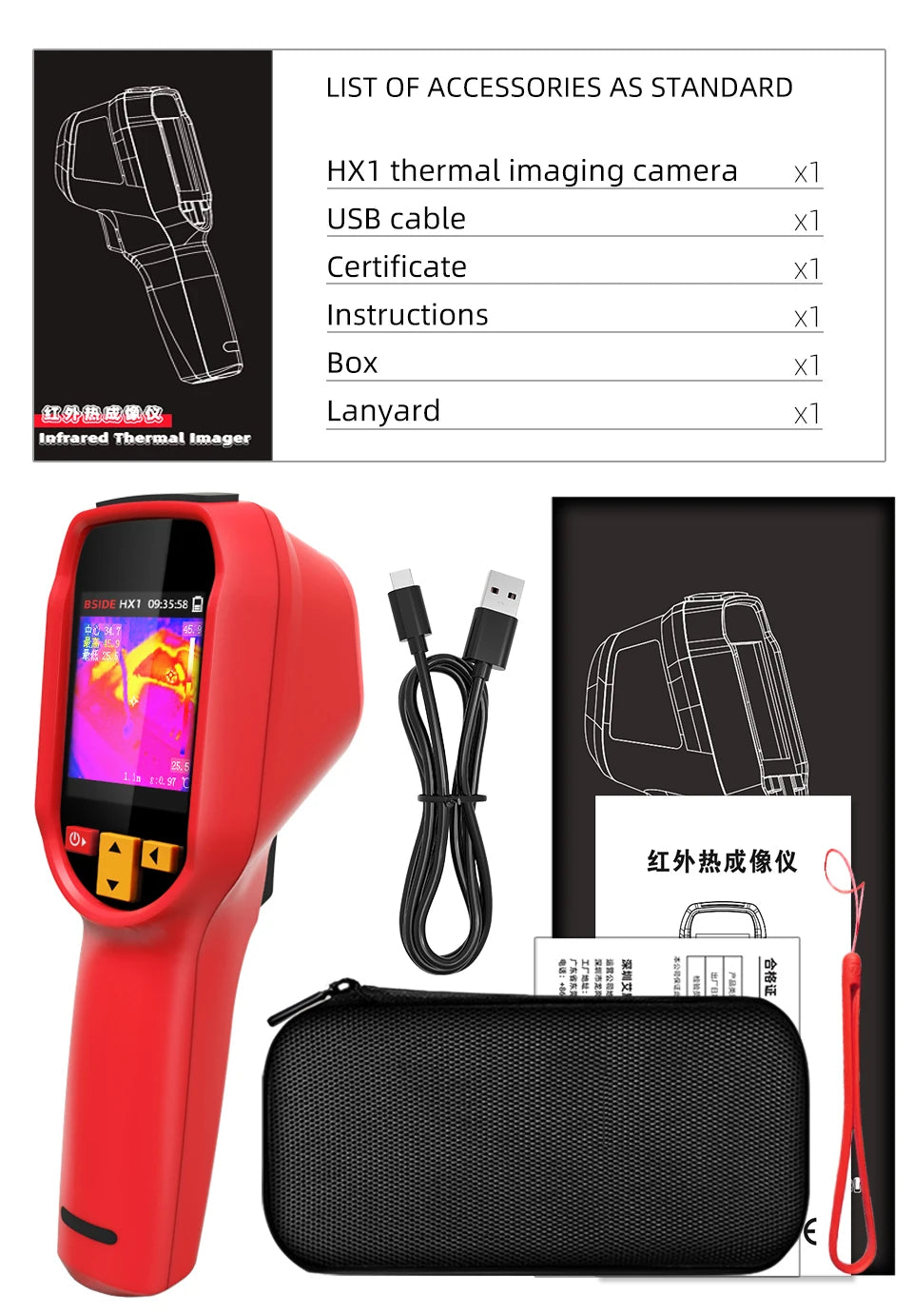

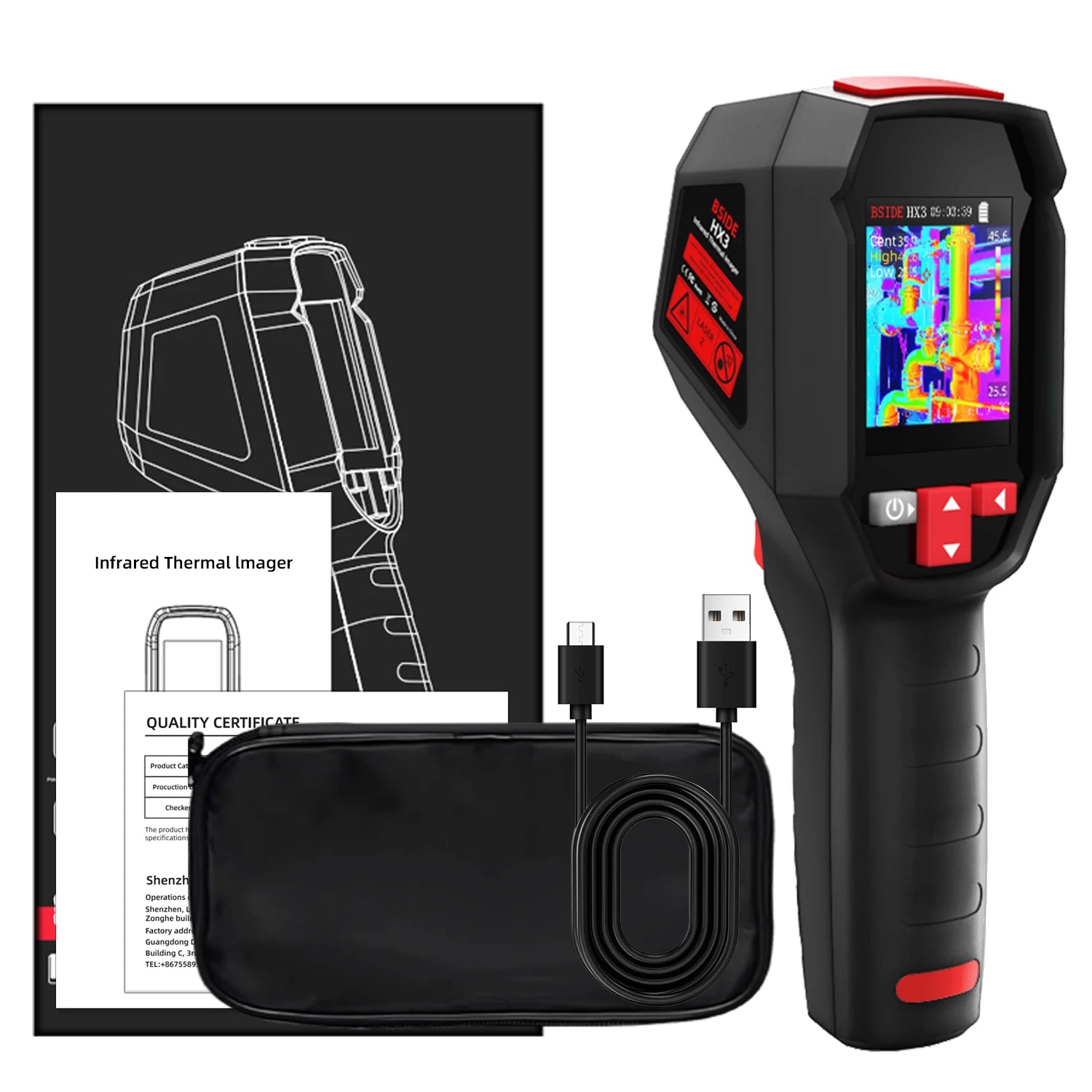

Also comes with a high-quality EVA handbag.

BSIDE HX1/HX3 products currently support upgrade to 8 language interfaces, English/Spanish/German/French/Russian/Italian/Japanese/Chinese.

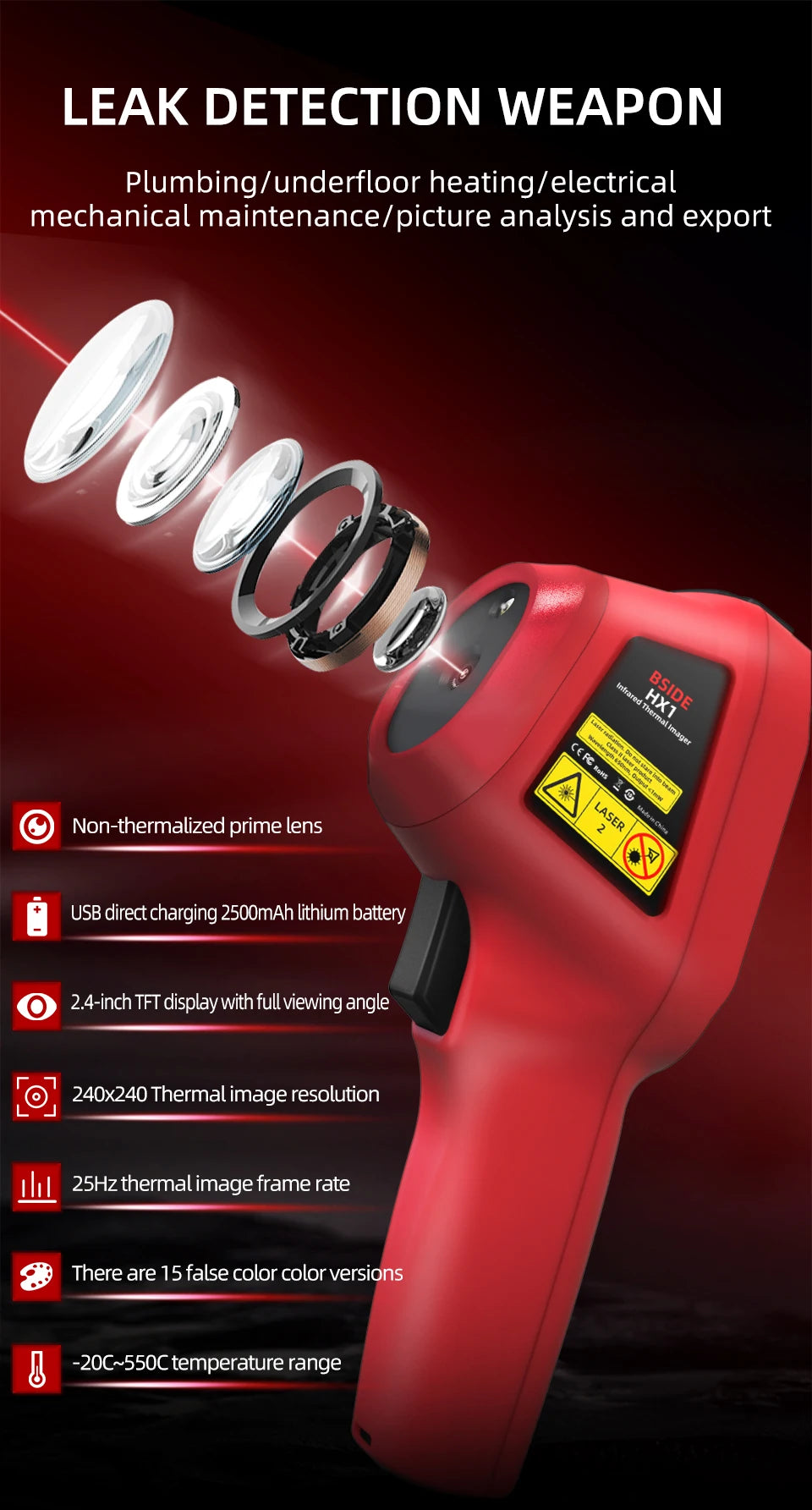

Main features of HX1/HX3

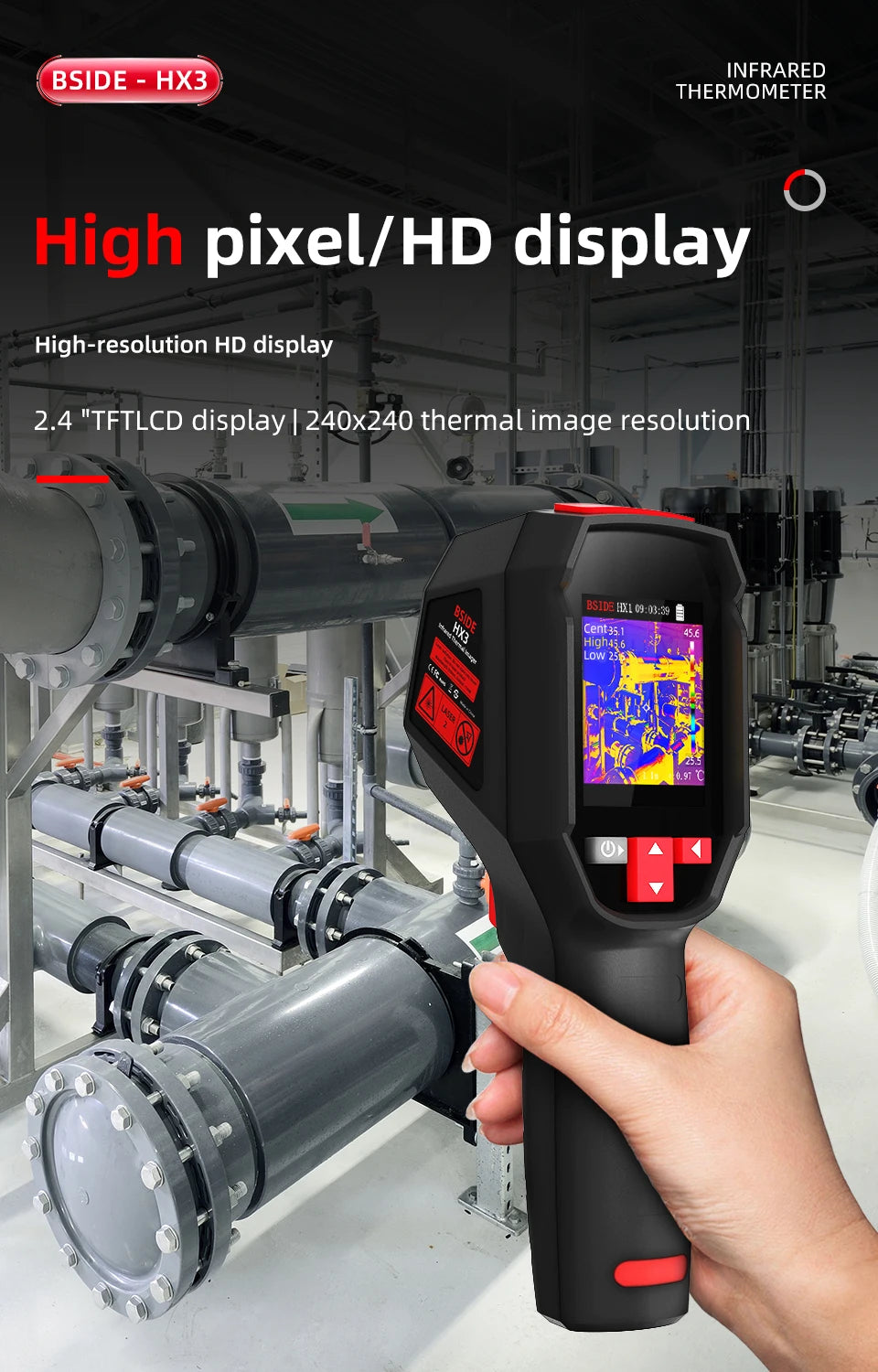

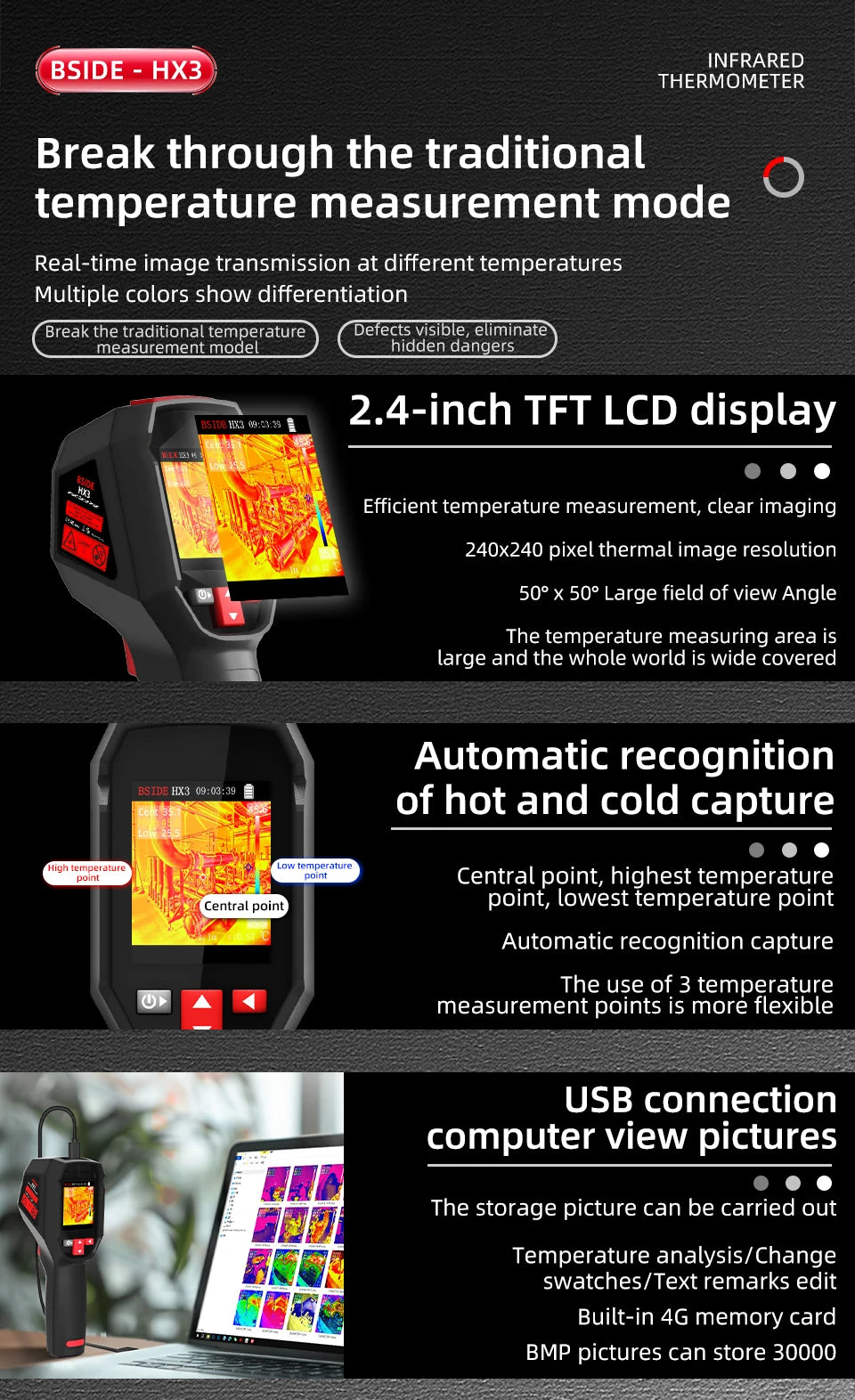

Screen: 2.4 inch LCD screen

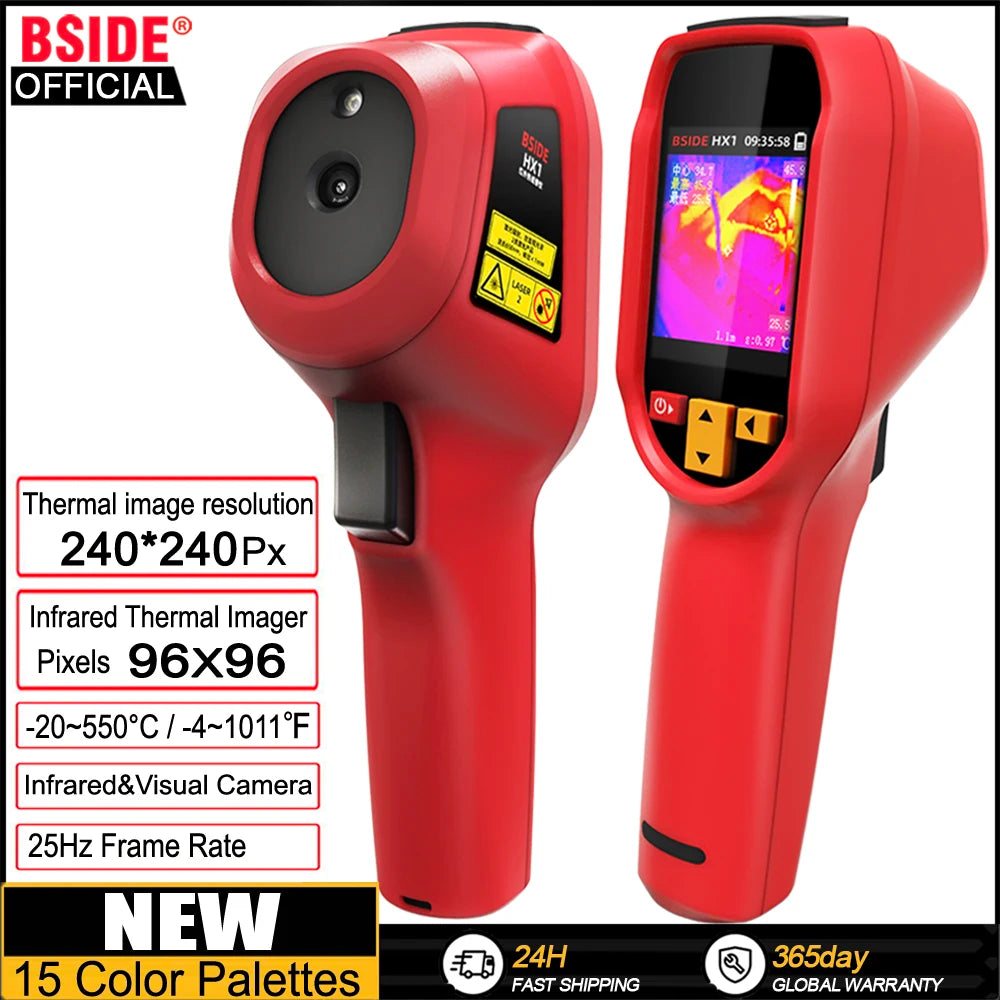

Thermal image resolution: 240*240Px.
Infrared Thermal Imager Pixels: 96 x 96.

Frame rate: 25Hz

Uses cutting-edge image stabilization technology.

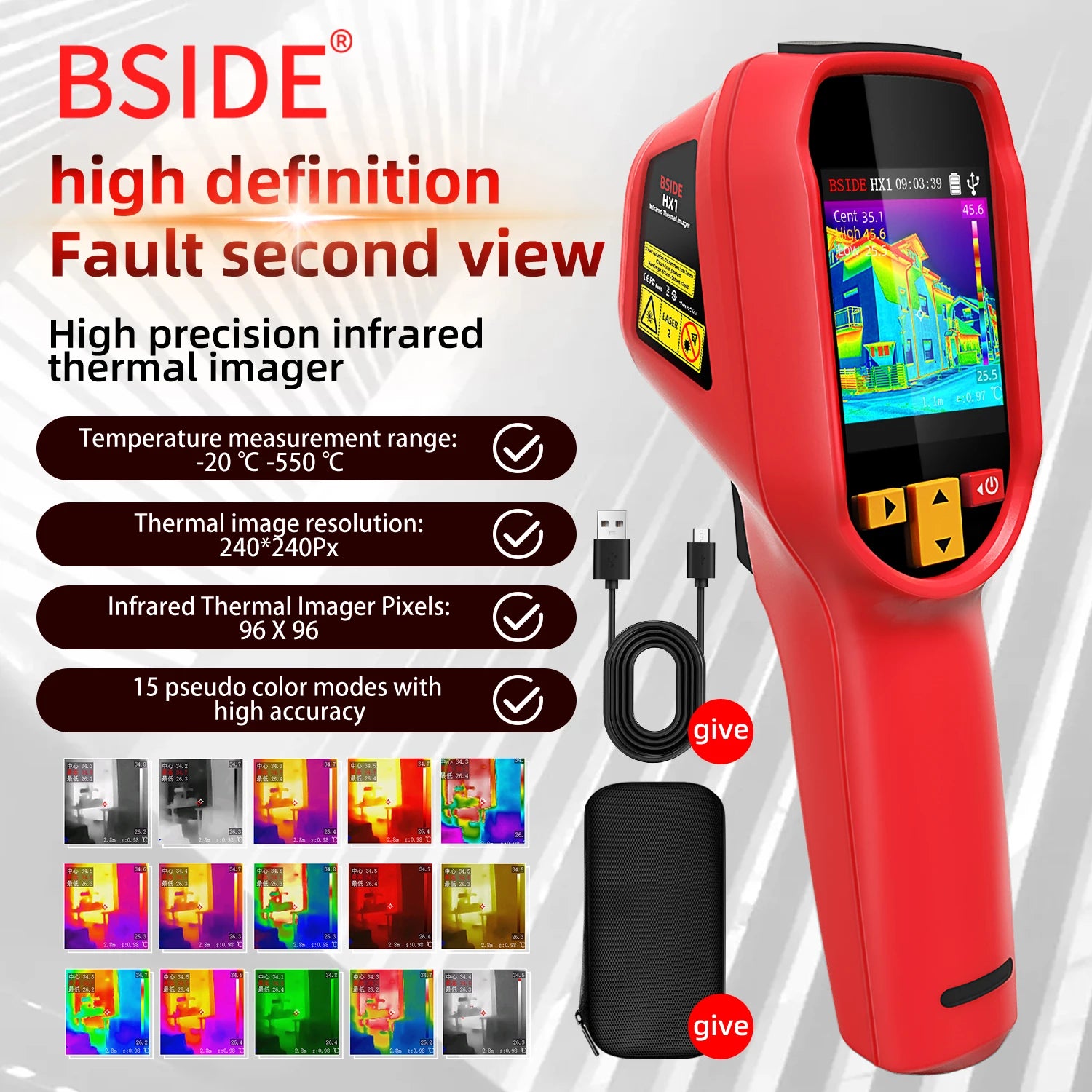

15 pseudo color modes

Temperature measurement range: -20 °C~550 °C

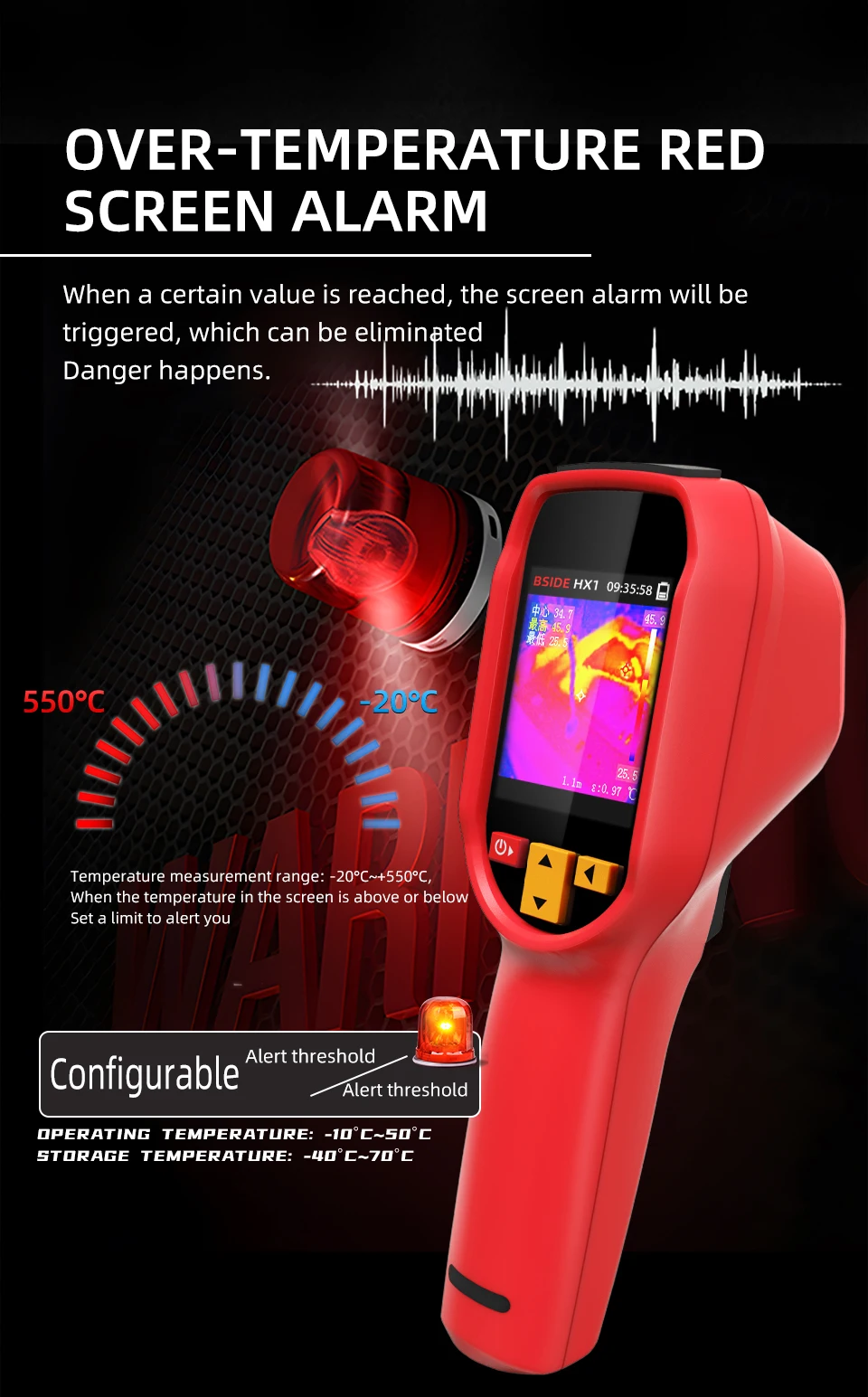

High and low temperature alarms: image, buzz, LED flashing

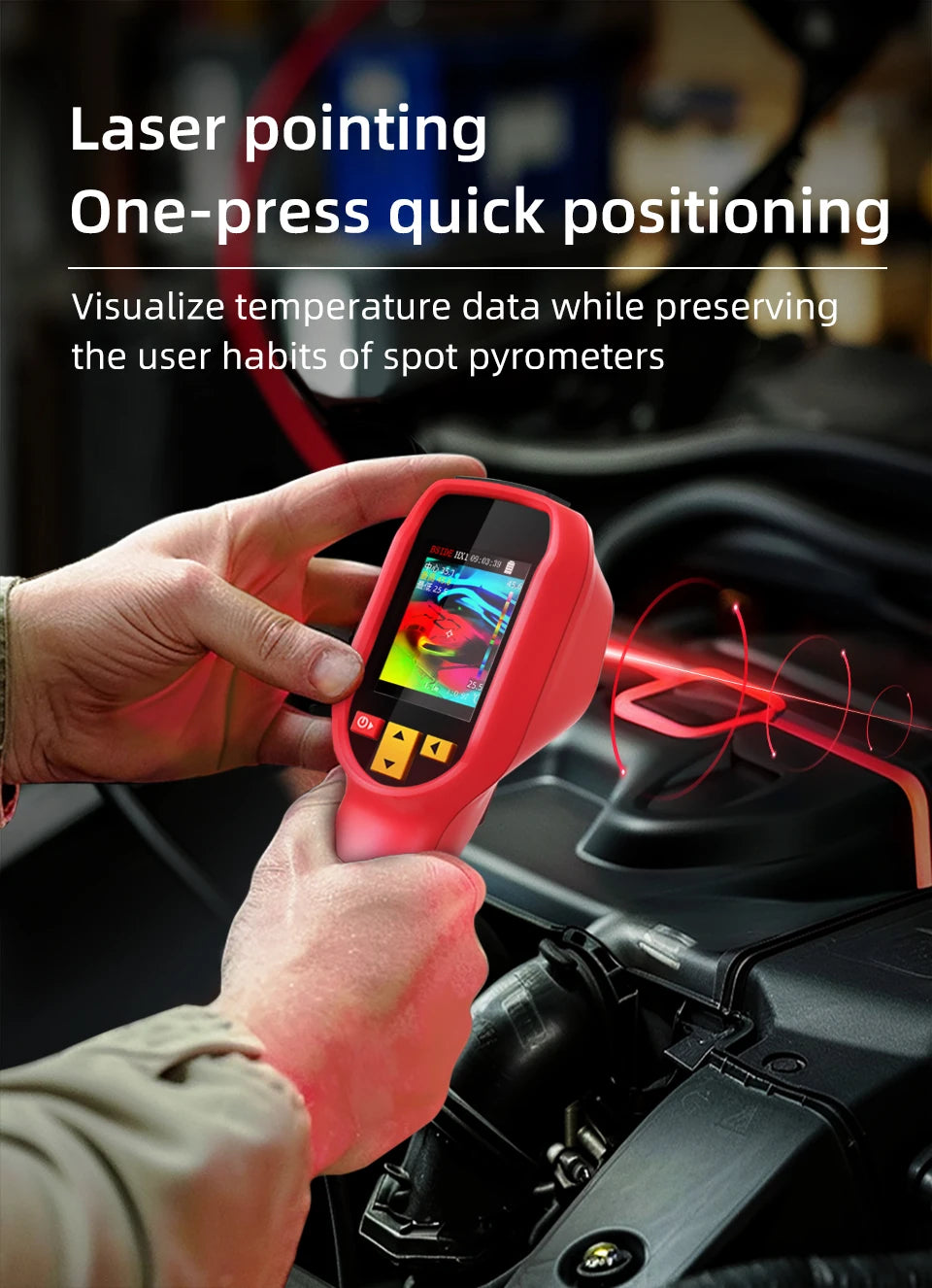

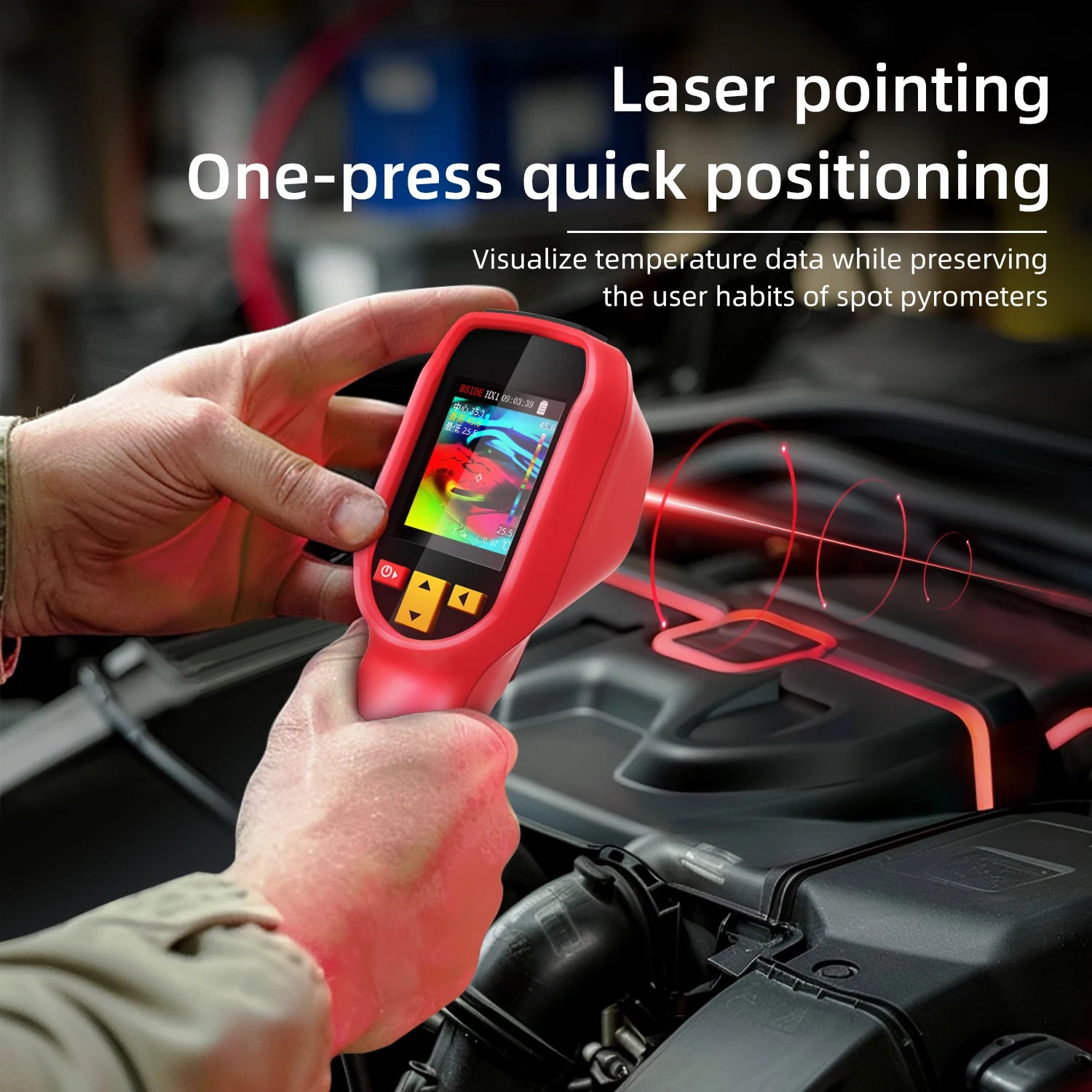

Laser Indicator/LED Illumination Laser Indicator/LED Illumination

Emissivity: 0.01~1

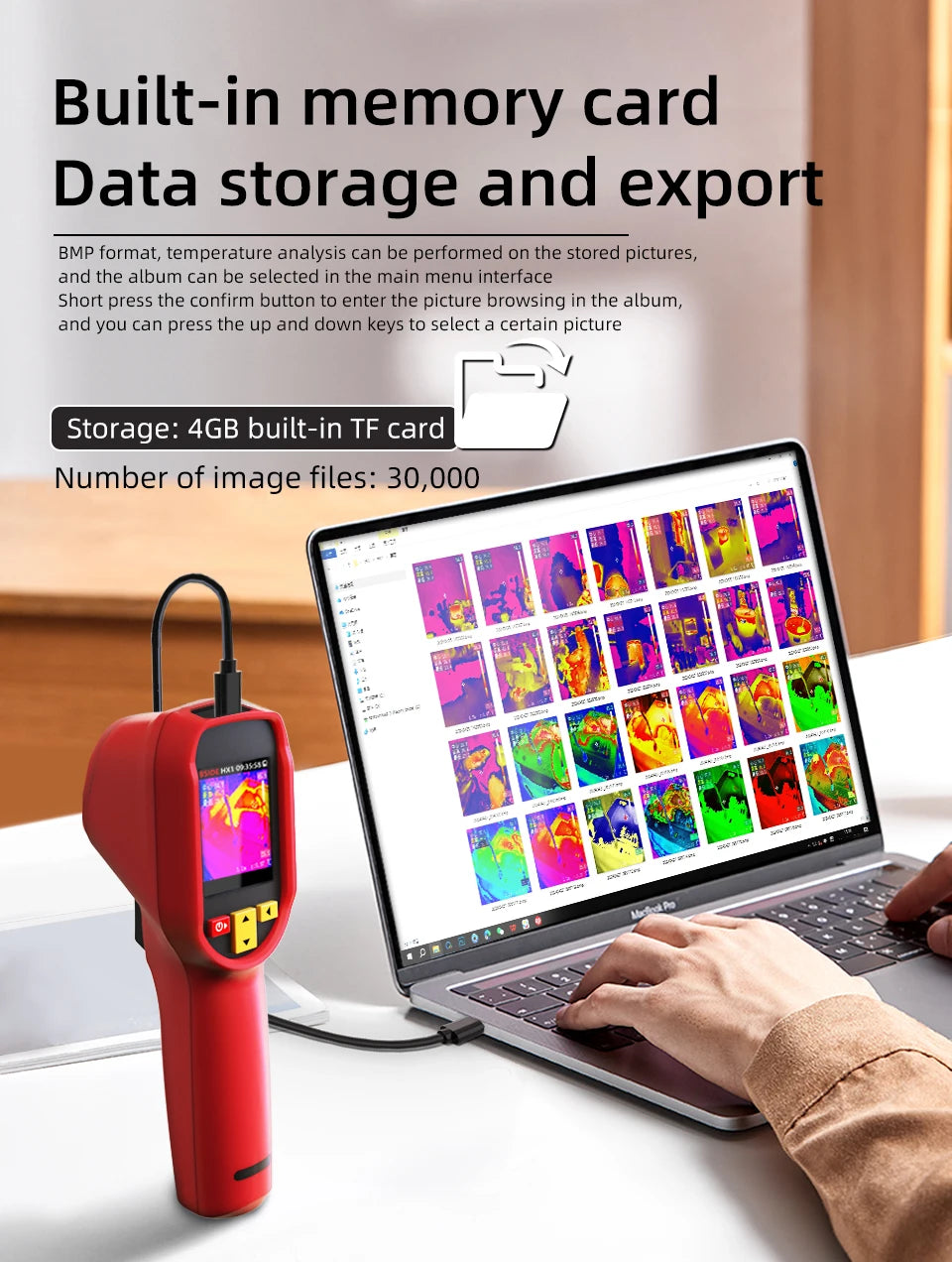

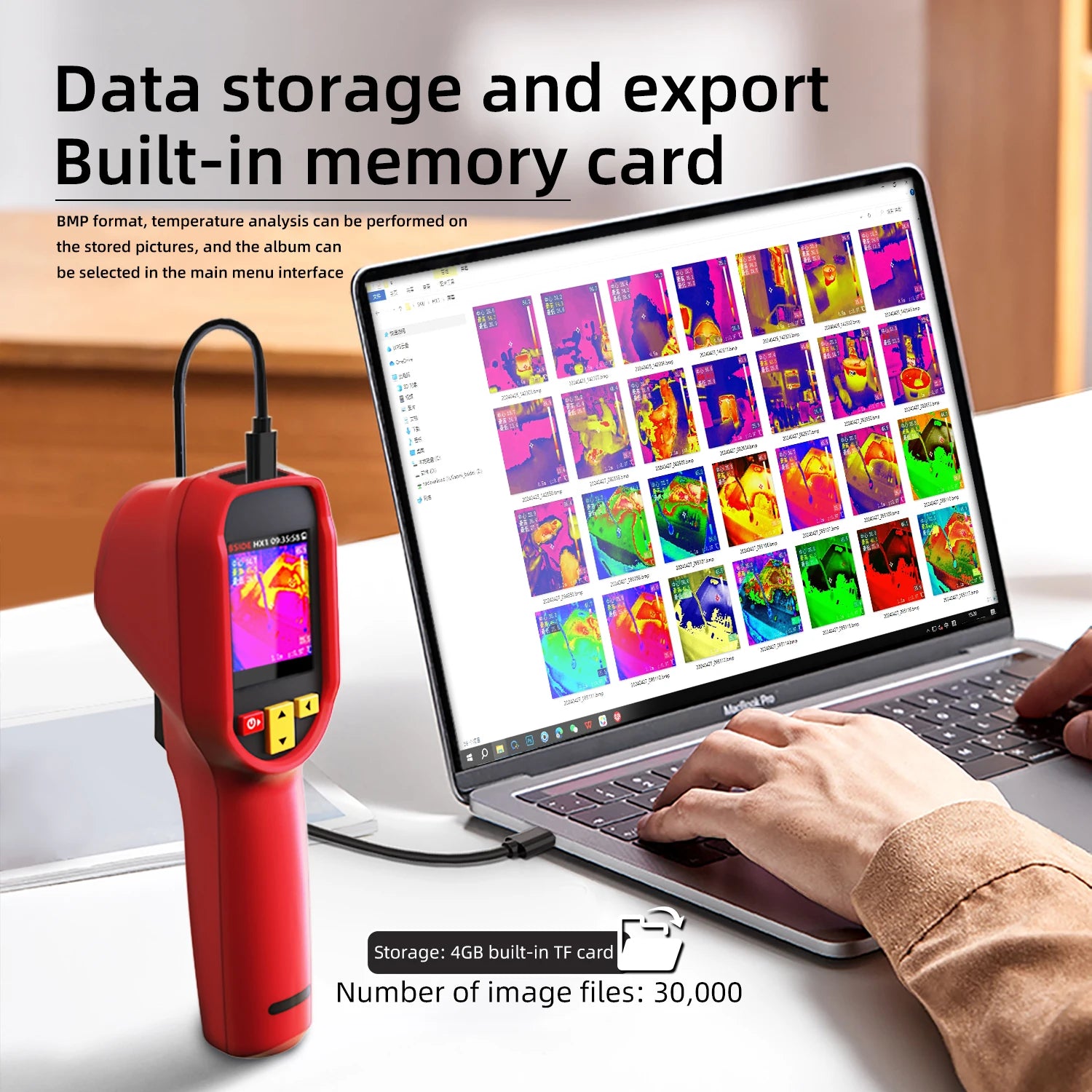

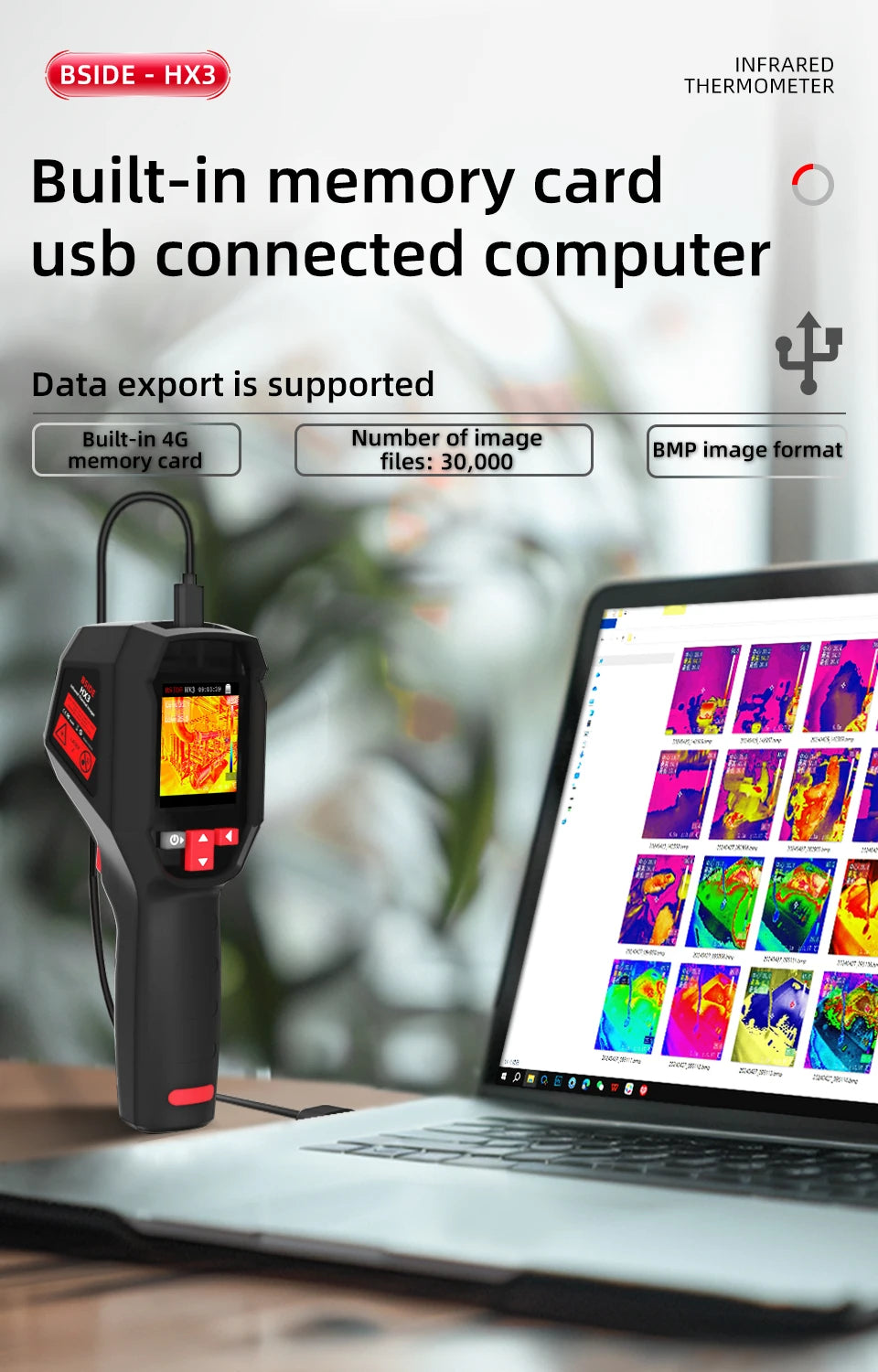

Storage: 4GB built-in TF card

Adjustable emissivity

Power supply: 2500mA lithium battery

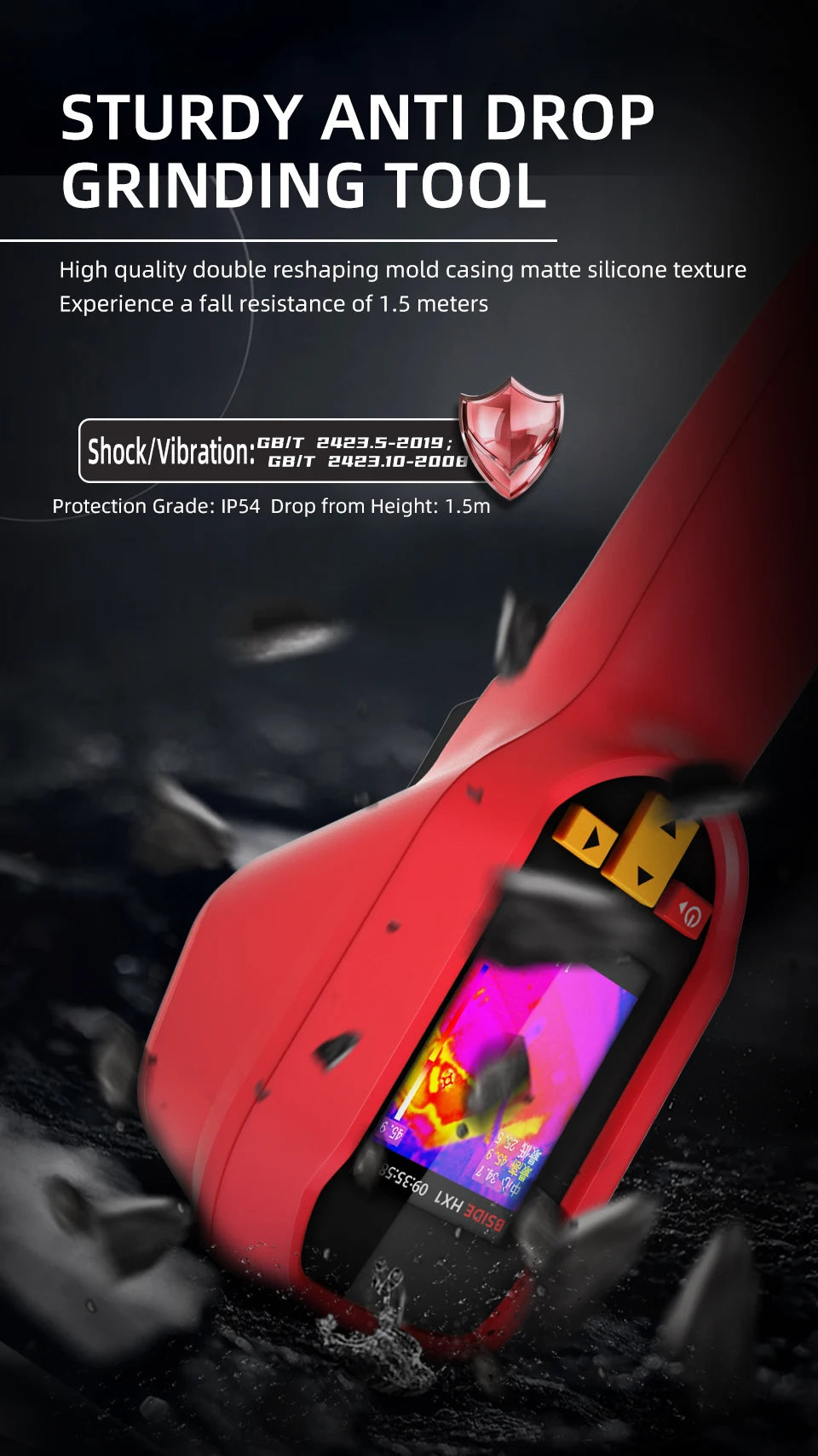

Three-proof design: IP54/1.5m anti-drop

The bottom design has screw holes for use with a tripod

Product Differences:

The performance of the BSIDE HX1 is exactly the same as that of the HX3, the difference is the body process.

BSIDE HX1：The body adopts double injection molding process Durable.
BSIDE HX3：The body adopts single injection molding process，Better value for money.

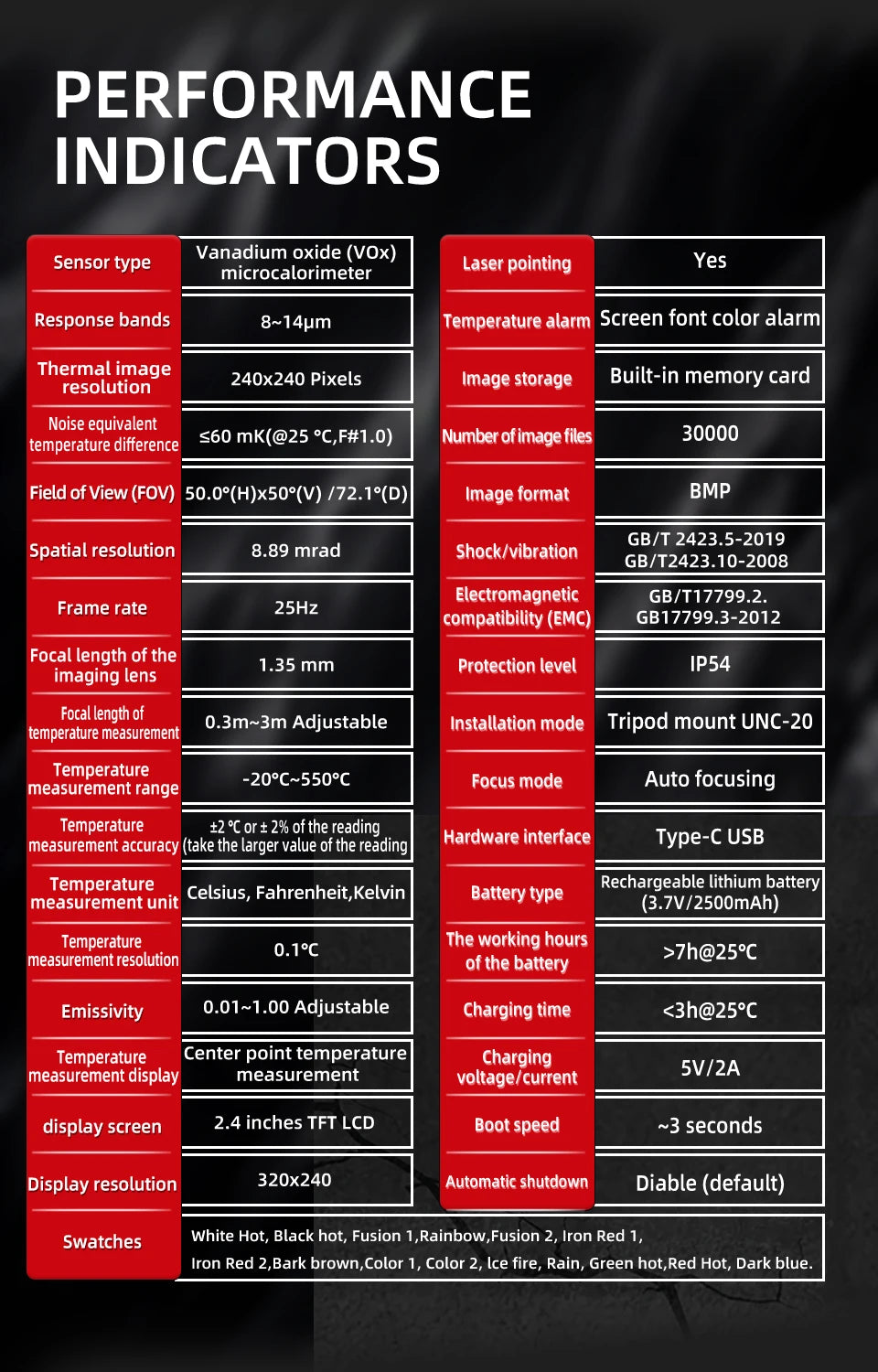

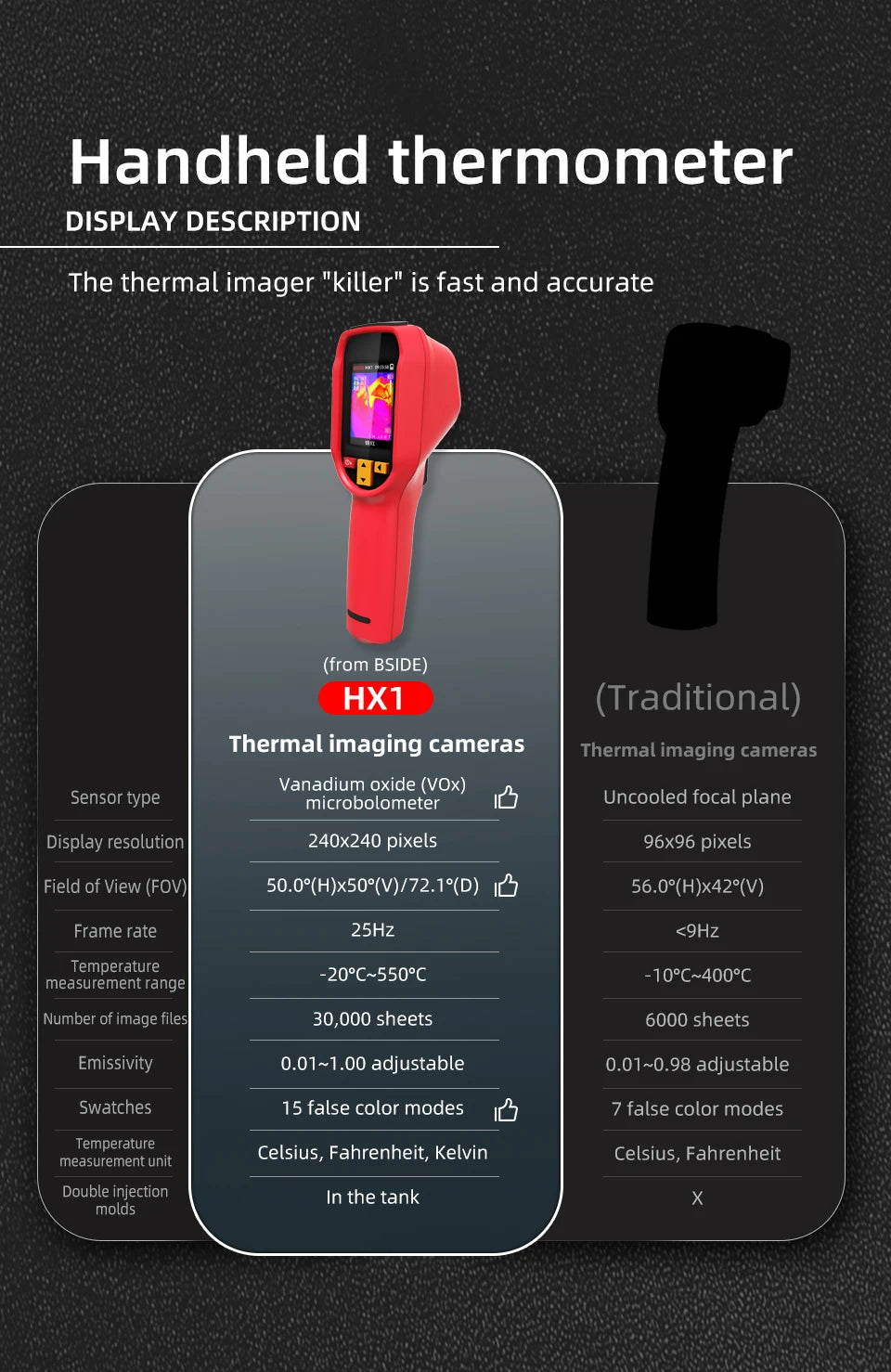

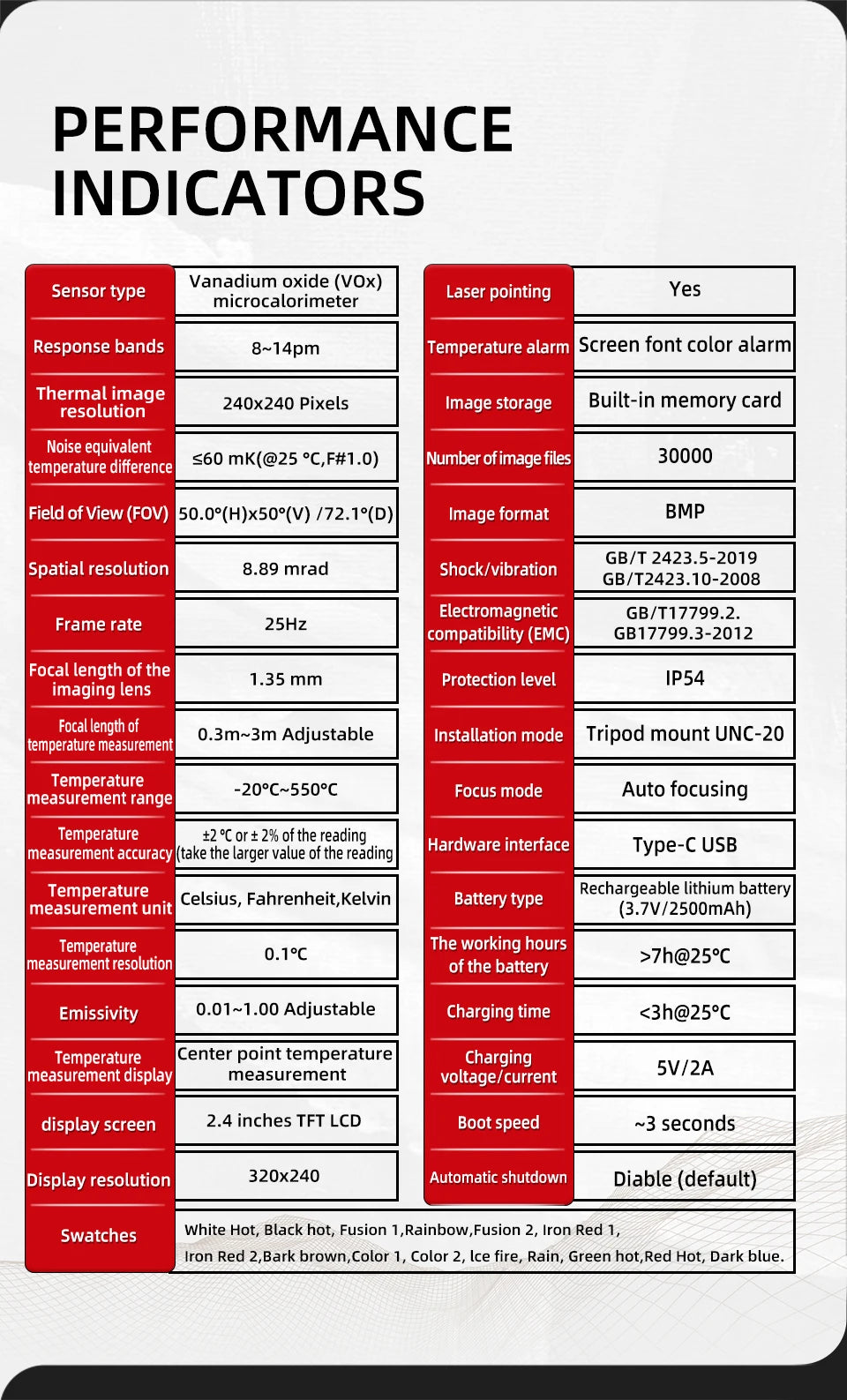

Product Model: BSIDE HX1/HX3

Sensor type: Vanadium oxide microbolometer

Response band: 8-14 μ m

Frame rate: 25Hz

NETD：< 60mK @ 25 °C

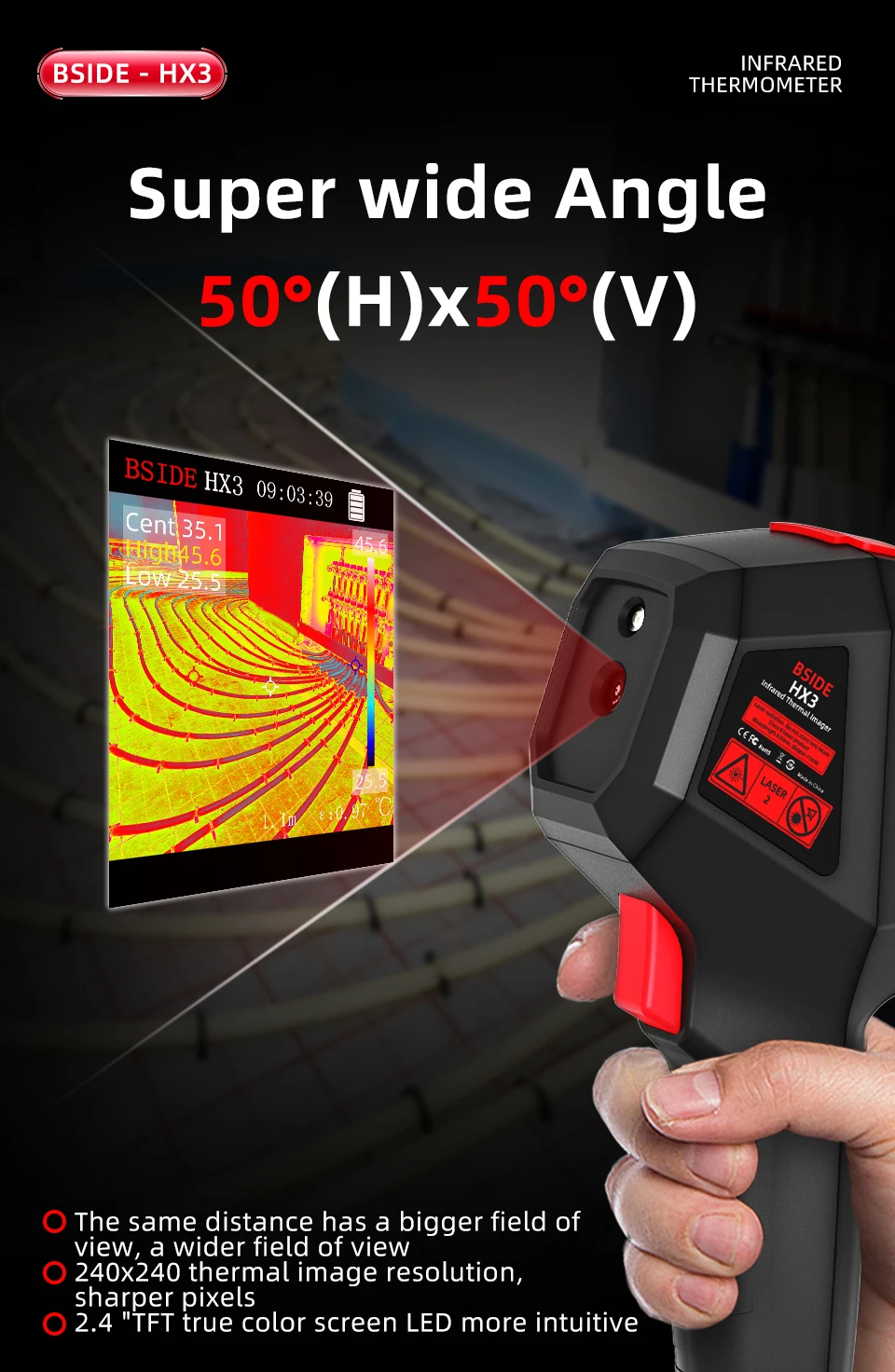

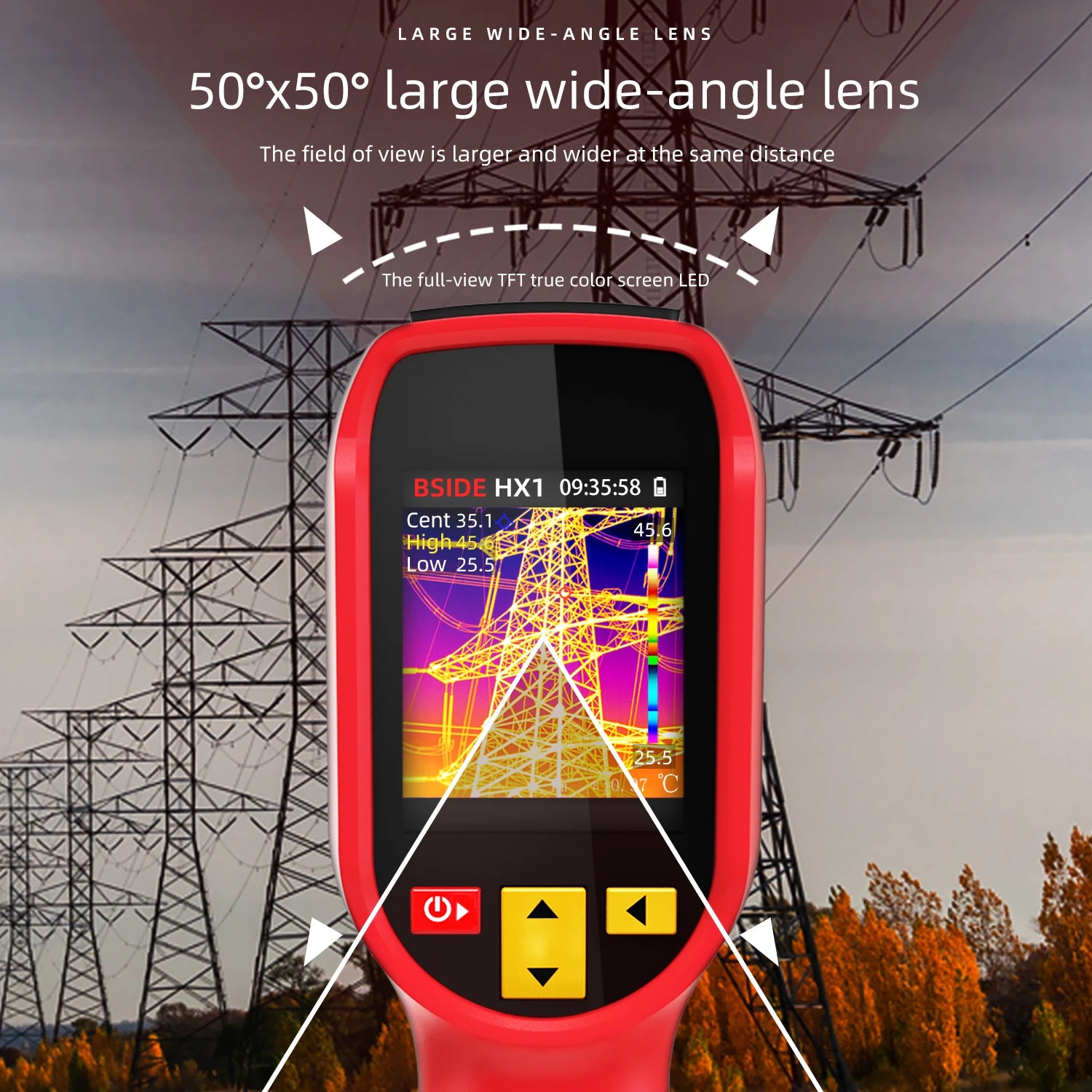

Field of view (FOV): 50°H×50°V/72.1°D

Spatial resolution (IFOV): 8.89mrad

Focal length of imaging lens: 1.35mm

Temperature measurement focal length: 0.3m~3m adjustable

Temperature measurement range: -20 °C to 550 °C

Temperature accuracy: ± 2 °C/± 2% (maximum reading)

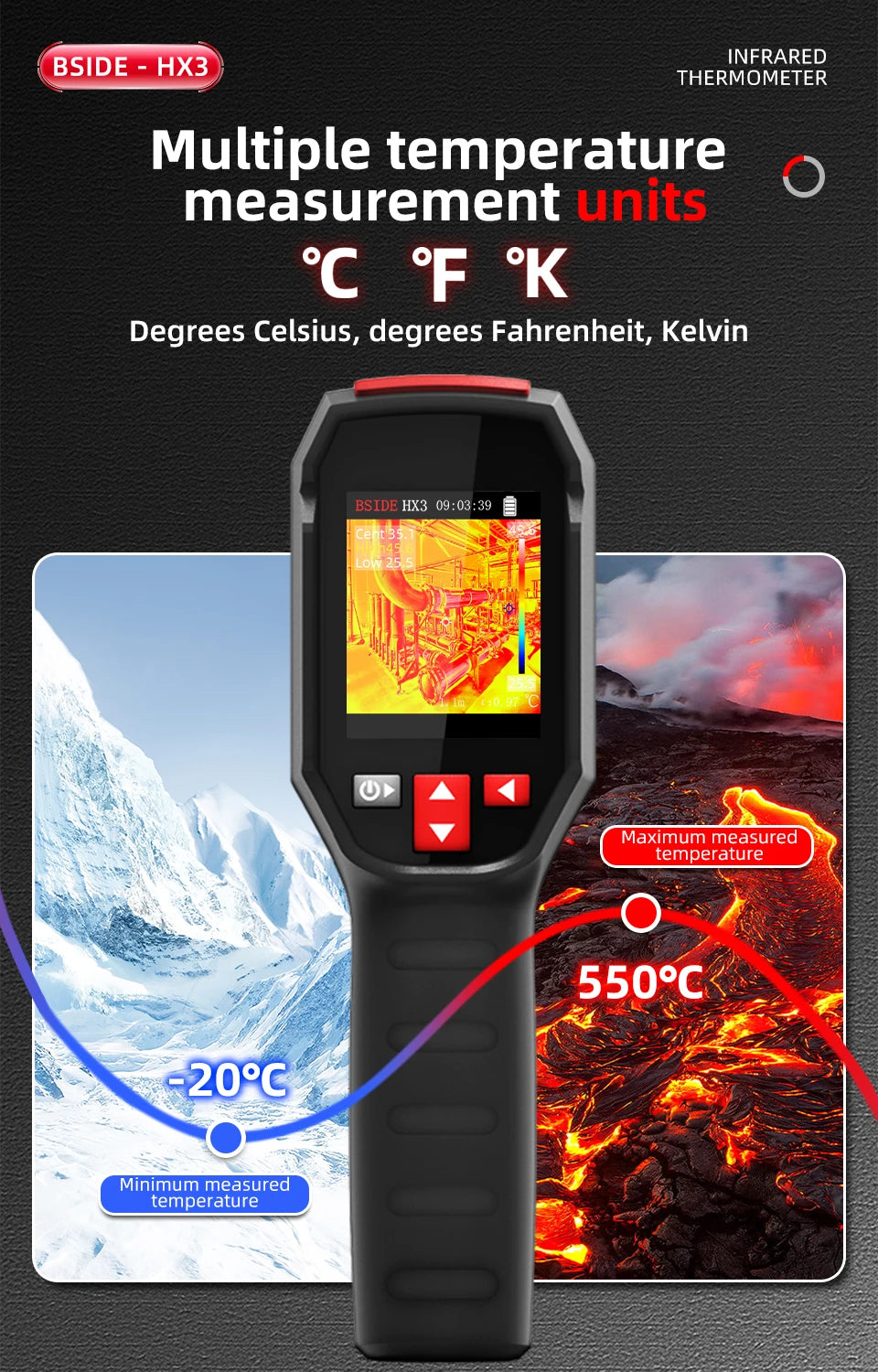

Temperature measurement unit: °C/°F/Kelvin

Temperature measurement resolution: 0.1°C

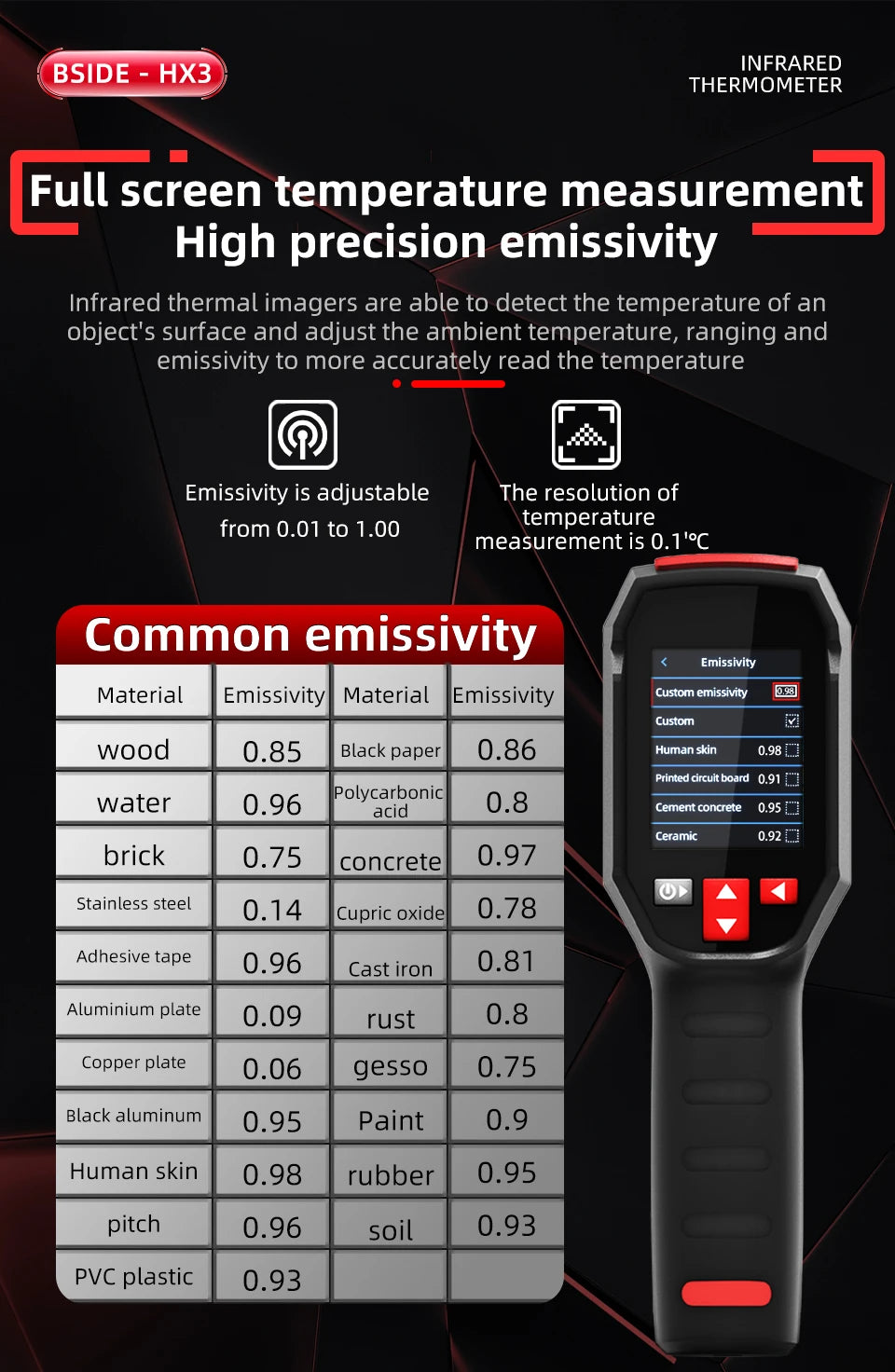

Emissivity: 0.01~1.0 adjustable

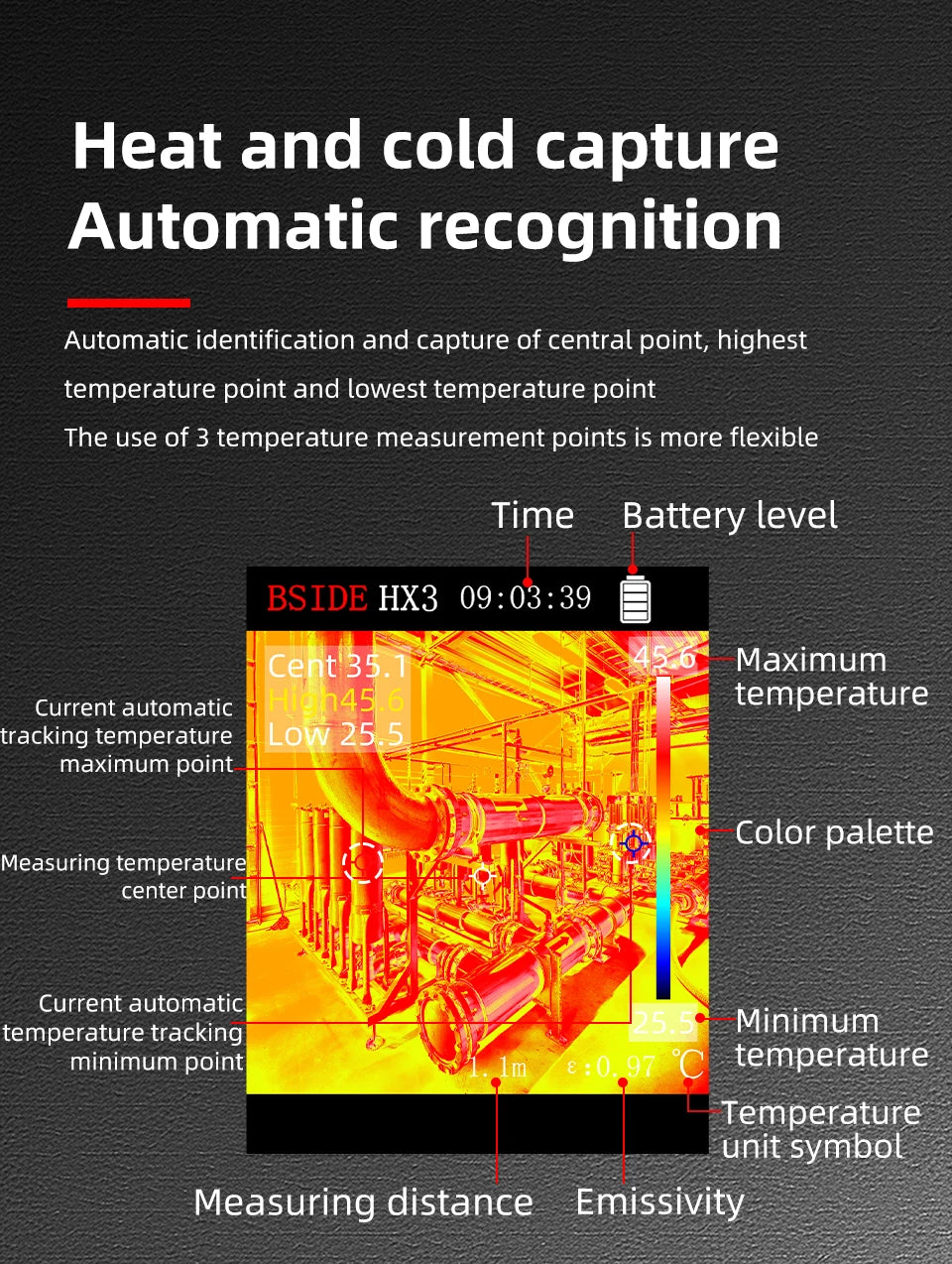

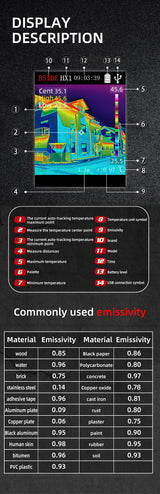

Temperature measurement display: central point temperature measurement, high and low temperature tracking

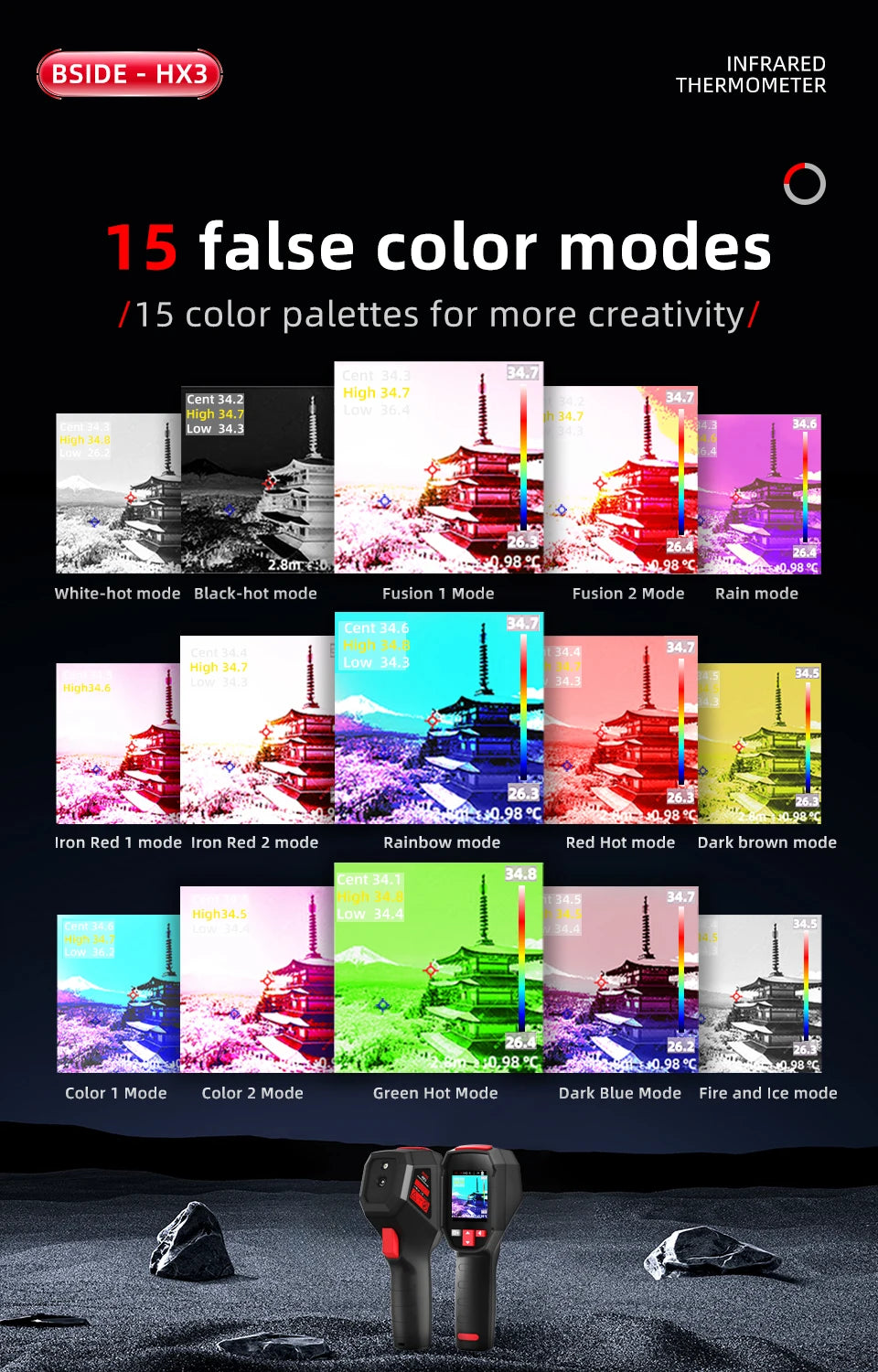

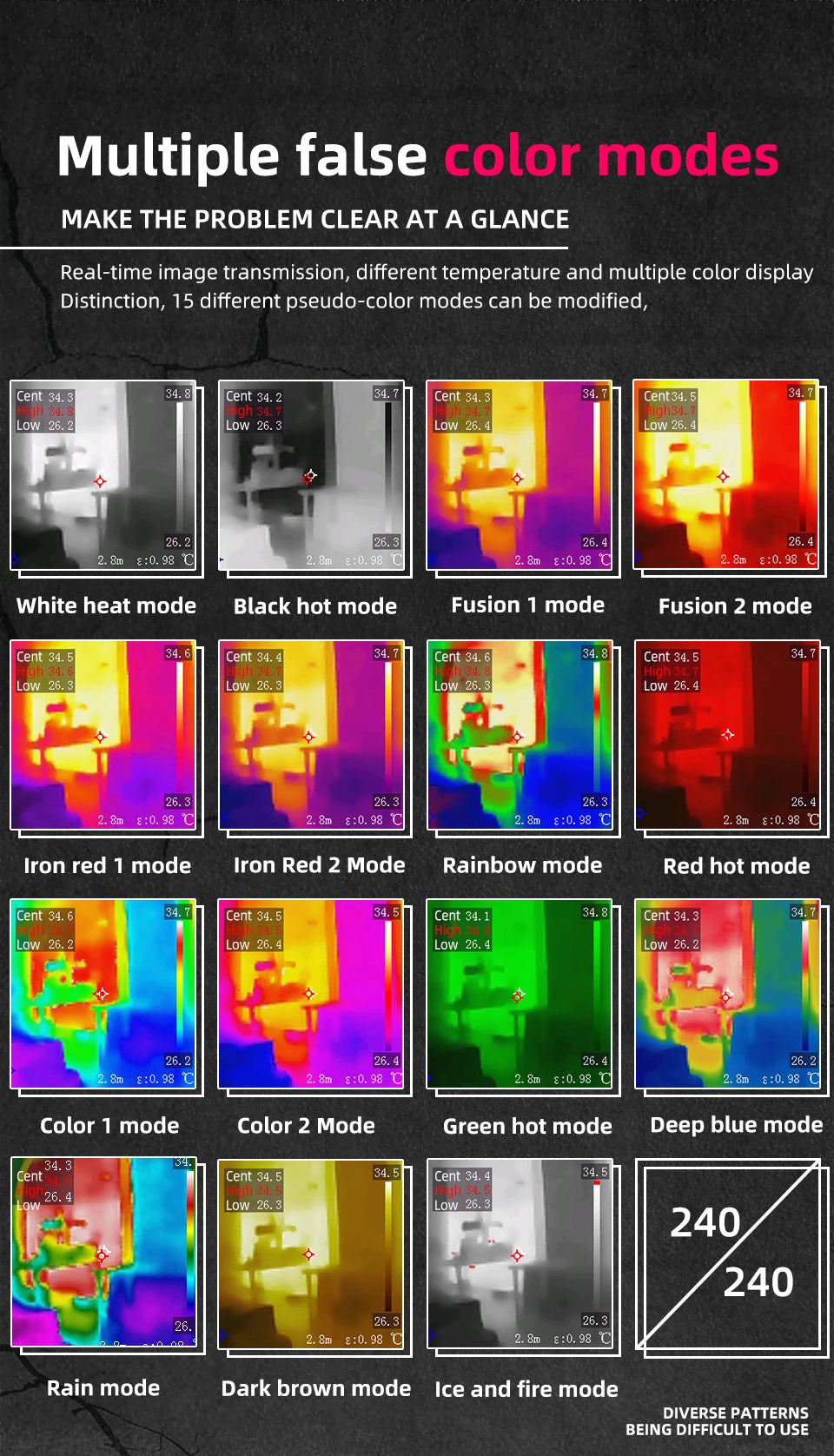

Color Palette: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Dark Sepia, Color 1, Color 2, Iron Red 1, Iron Red 2, Fire and Ice, Rain, Green Hot, Red Hot, Dark Blue

Display: 2.4 inch TFT LCD screen

Display resolution: 320 x 240px

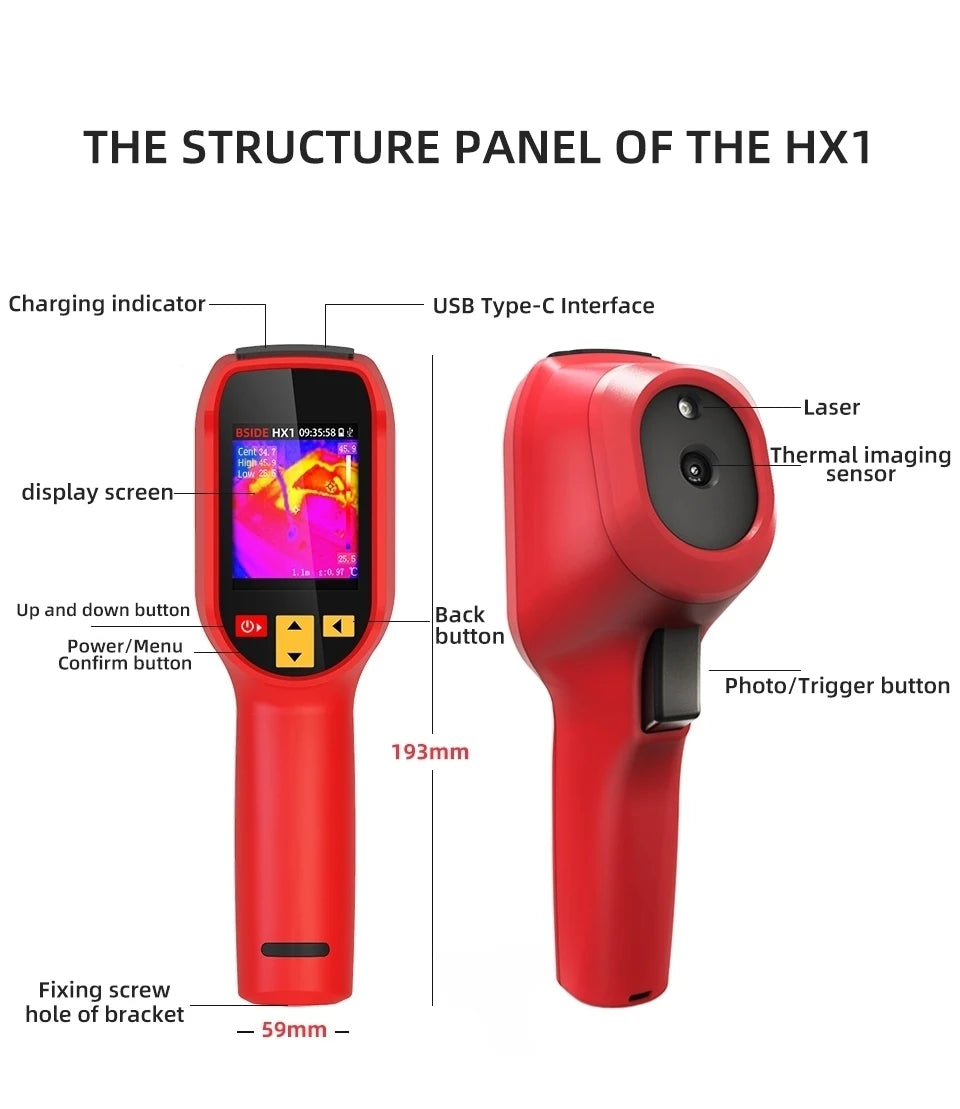

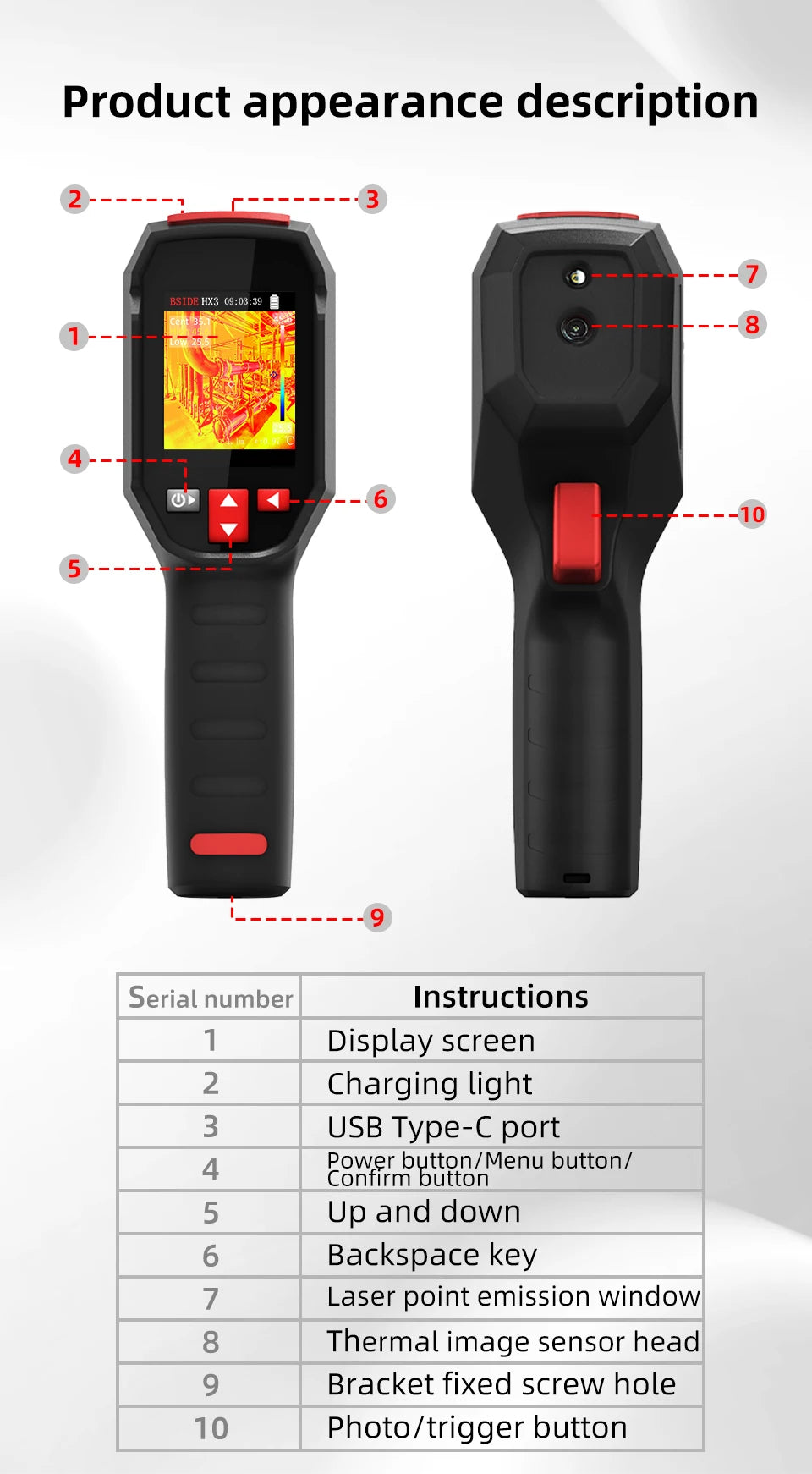

Buttons: Power button, Up button, Down button, Back button, Trigger button

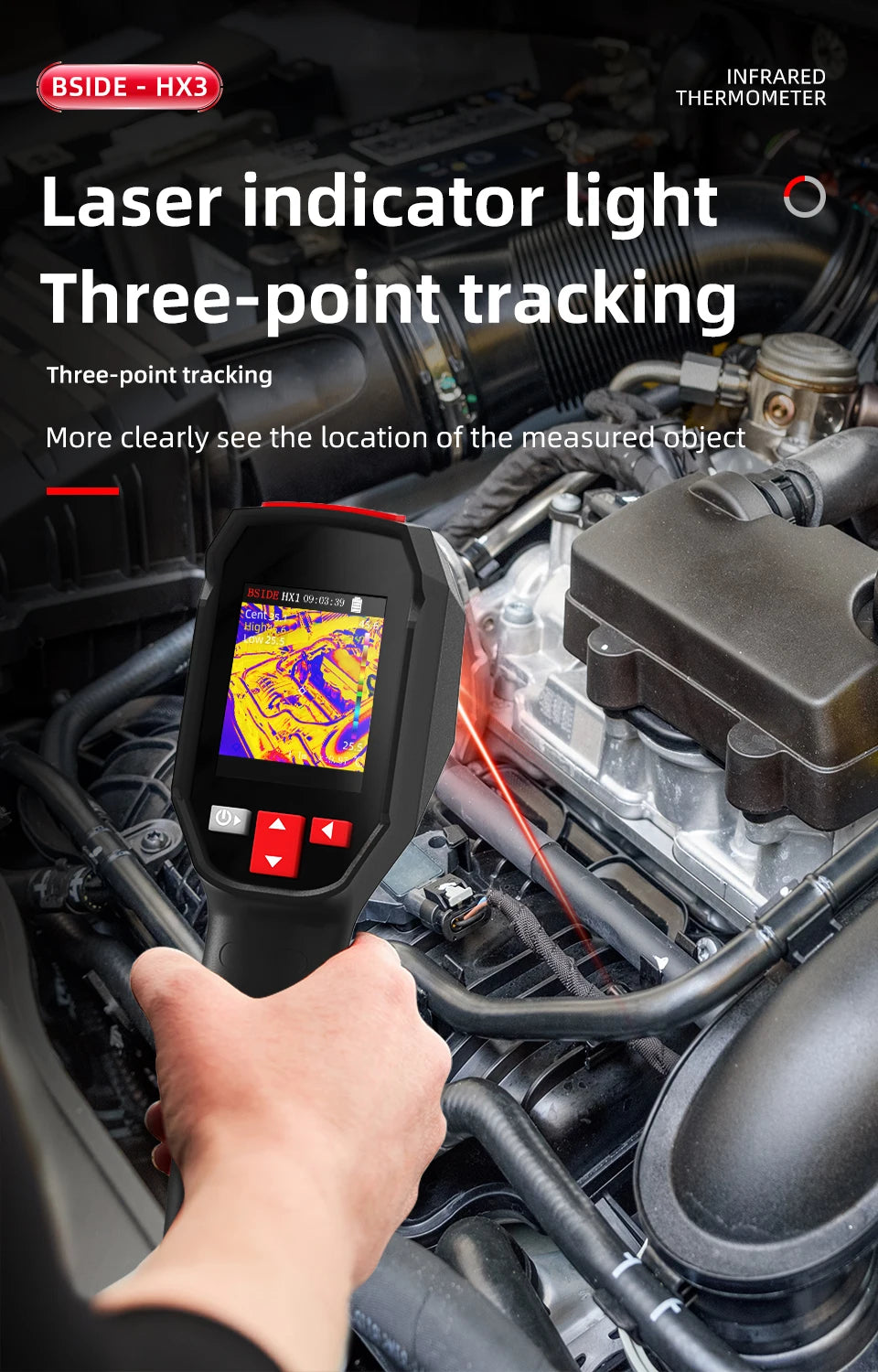

Laser indication: Yes

Storage: Built-in memory card

Number of image files: 30,000

Image format: BPM

Focusing method: Autofocus

High and low temperature tracking: √

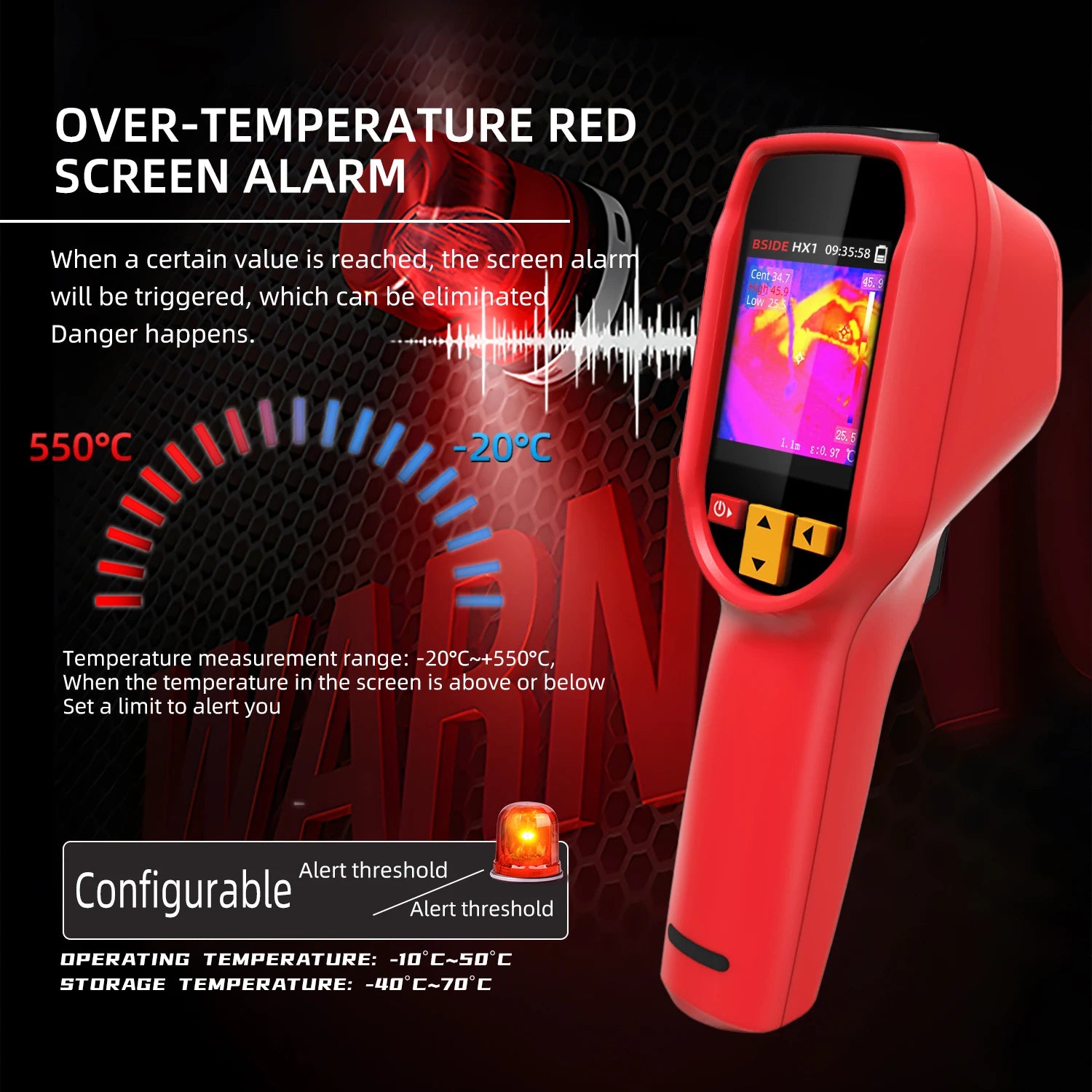

Temperature alarm: Screen font color alarm

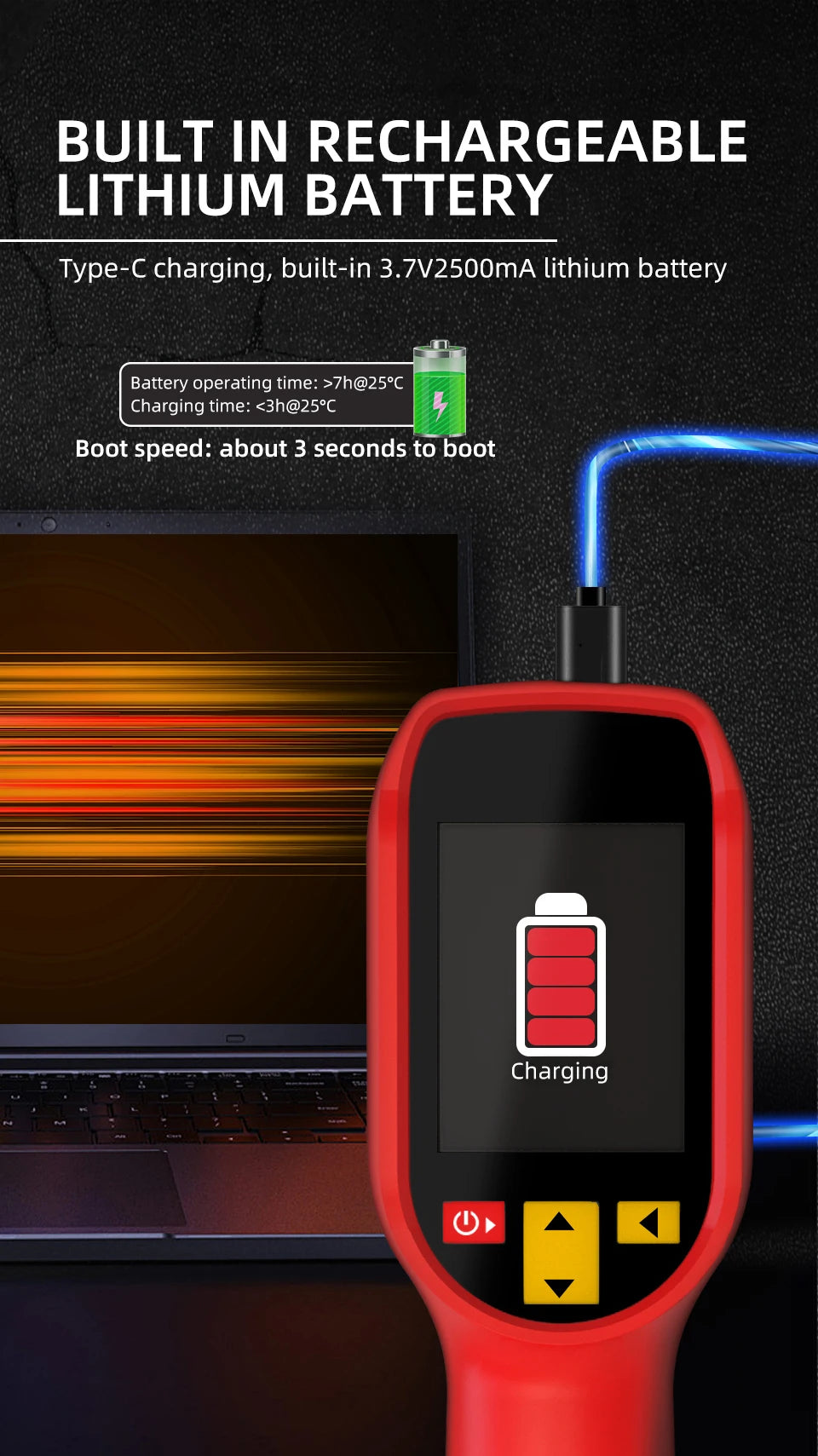

Battery type: Rechargeable lithium battery (3.7V/2500mAh)

Charging system: Type-C direct charging

Data interface: Type-C USB

Illumination/Laser Instruction: √

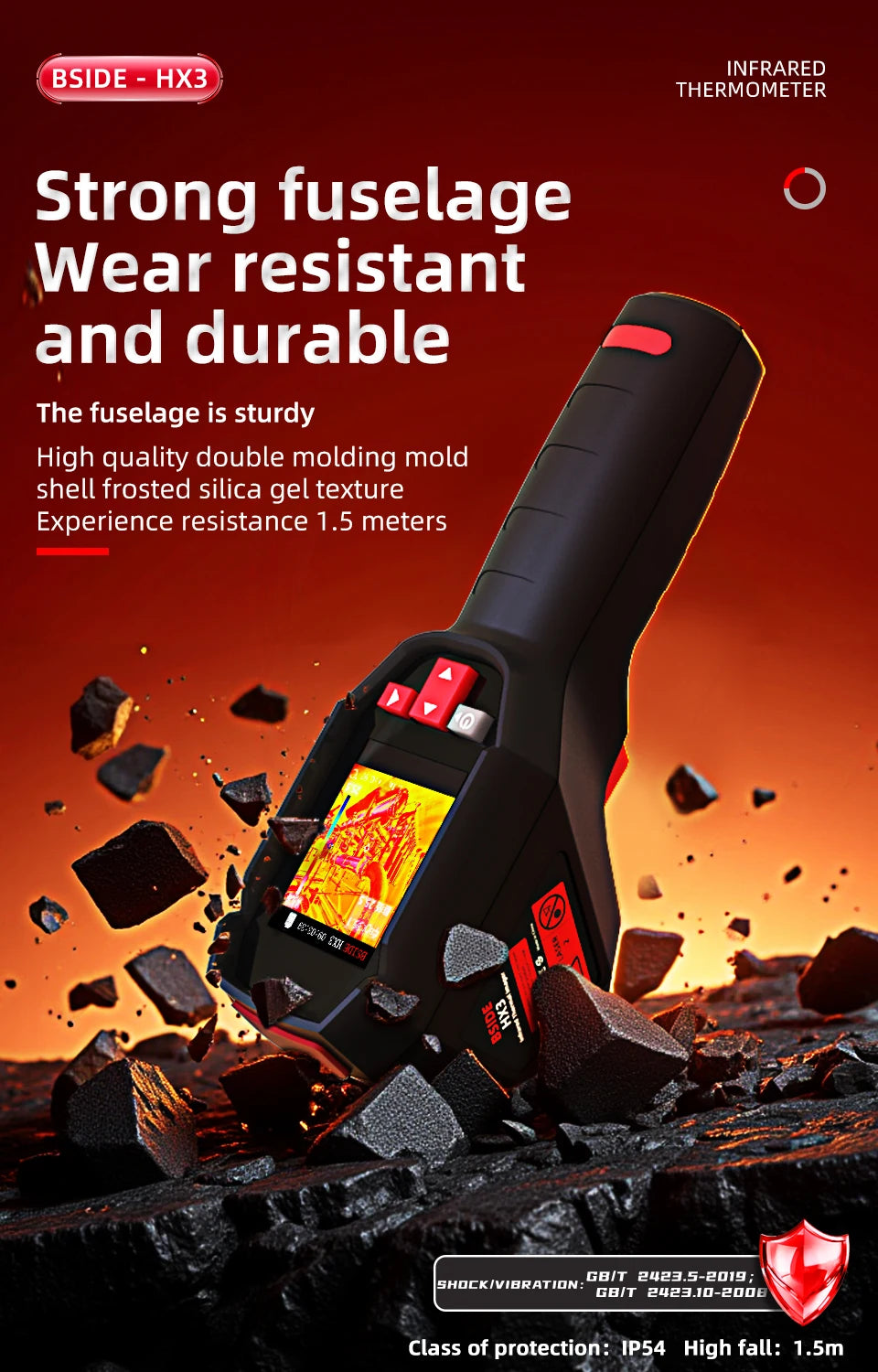

Protection Rating/Fall Protection Rating: IP54/1.5m

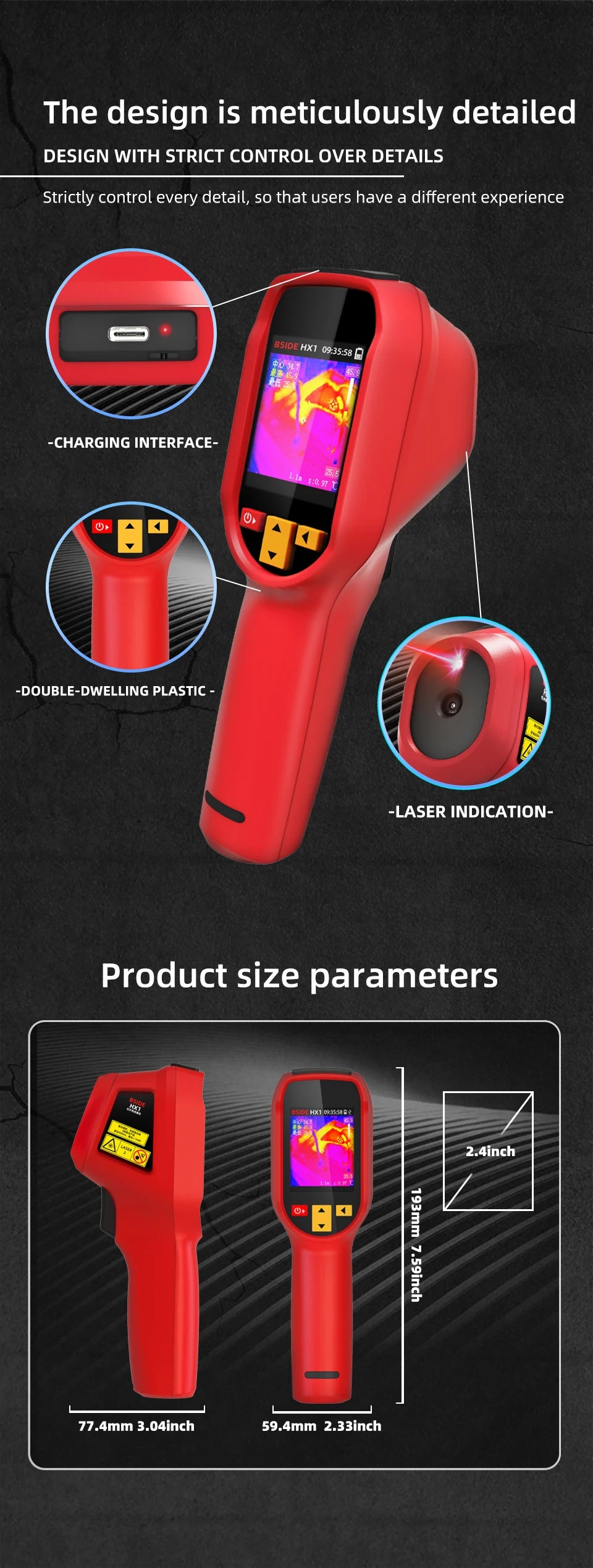

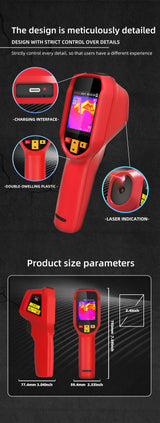

Dimensions (L x W x H): 193.4 x 59.4 x 77.4 mm
